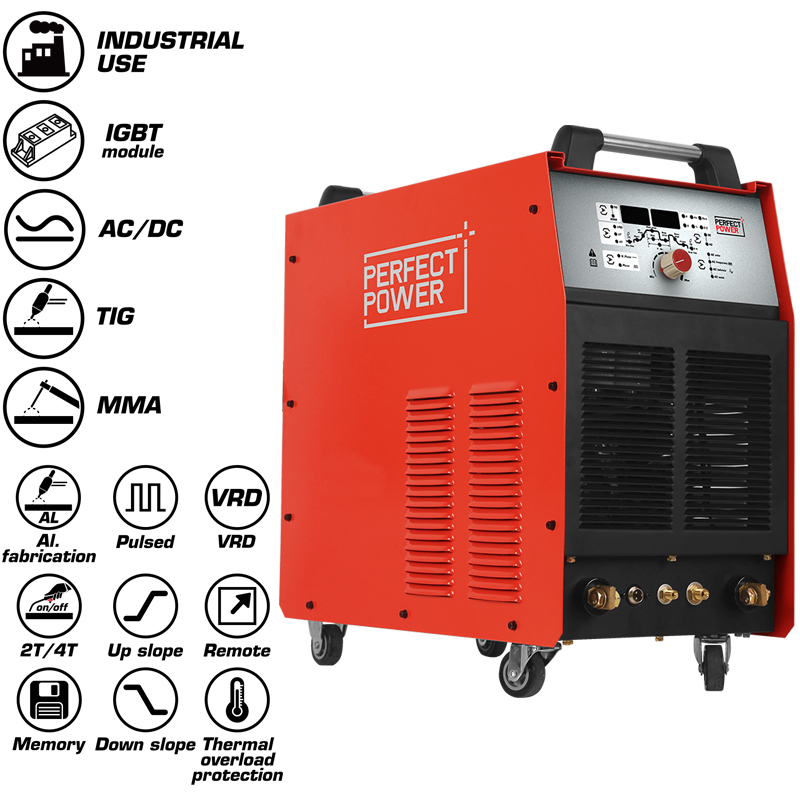

1. Multi-function welding – AC TIG, AC pulsed TIG, DC TIG, DC pulsed TIG, MMA, and Auto welding.
2. Industrial purpose IGBT dual-module and heavy-duty cycle.
3. Minimum AC current can be 10A, ensuring optimal welding performance of thin aluminum sheets.
4. Memory function: can save 18 sets of parameters.
5. High-frequency arc starts with a high success rate.
6. Adjustable clean width and clean scope.
7. Intelligent over-voltage, low-voltage, over-current, and over-heat protection, safe and reliable.
8. Capable for different shapes welding, like butt joint, corner joint, T-joint, lap joint, and cruciform joint.
2T/4T function adjustable Pre-Flow and Post-FlowDigital IGBT inverterEfficient cutting ability| Model | TIG-350P AC/DC PRO |
|---|---|
| Power input AC(V) | 3ph 380V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 10.8 |
| Rated current input(A) | 16.4 |
| Rated output current(A)/voltage(V) | 350/24.0（TIG,3-440V）275/31.0（MMA,3-440V）250/20.0（TIG,3-220V）200/28.0（MMA,3-220V） |
| Welding current range(A) | 10-350（TIG,3-440V） 30-275（MMA,3-440V） 10-250（TIG,3-220V） 30-200（MMA,3-220V） |
| Open circuit voltage DC(V) | 69 |
| Rated duty cycle(%) | 60 |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 605*310*595 |
| N.W.(kg) | 50.5 |
