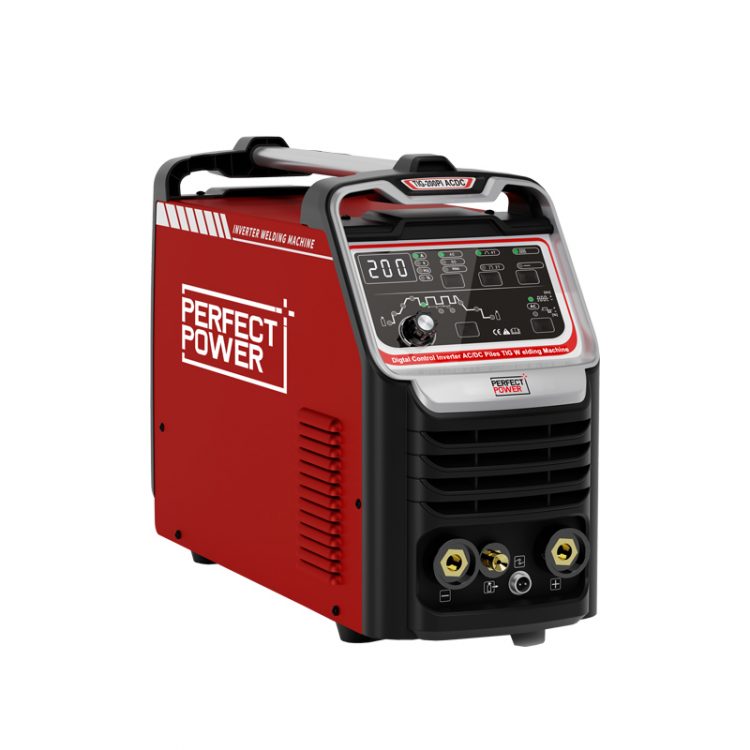

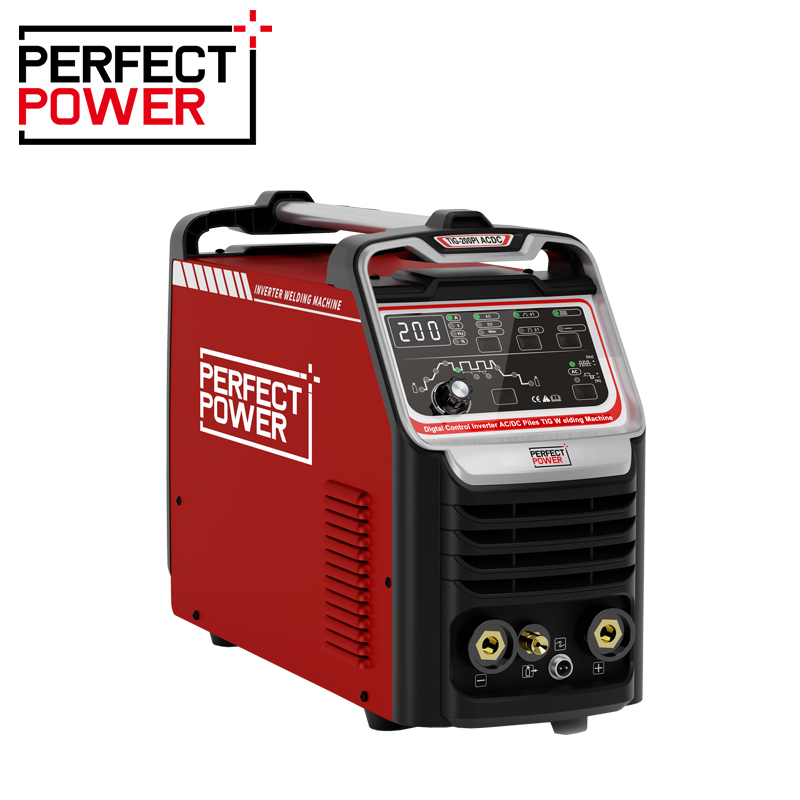

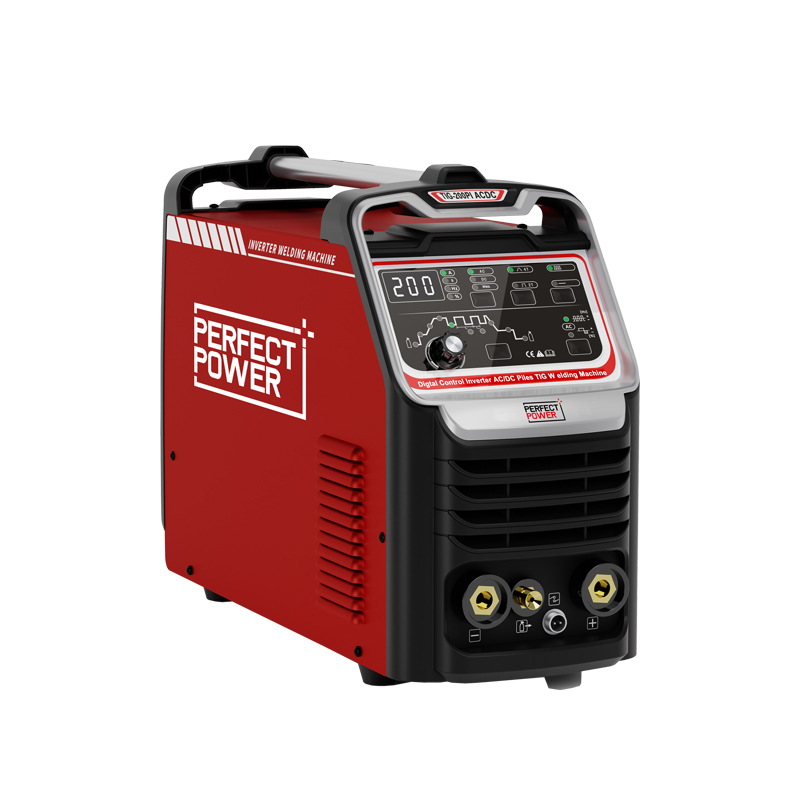

TIG-200PI AC DC TIG Welder

The TIG-200PI AC/DC TIG Welder gives you maximum control over High-Frequency AC/DC TIG welding for incredible results from start to finish. This 1 Phase machine features capable of different shapes of welding, like butt-joint, corner joint, T-joint, lap joint, and cruciform joint

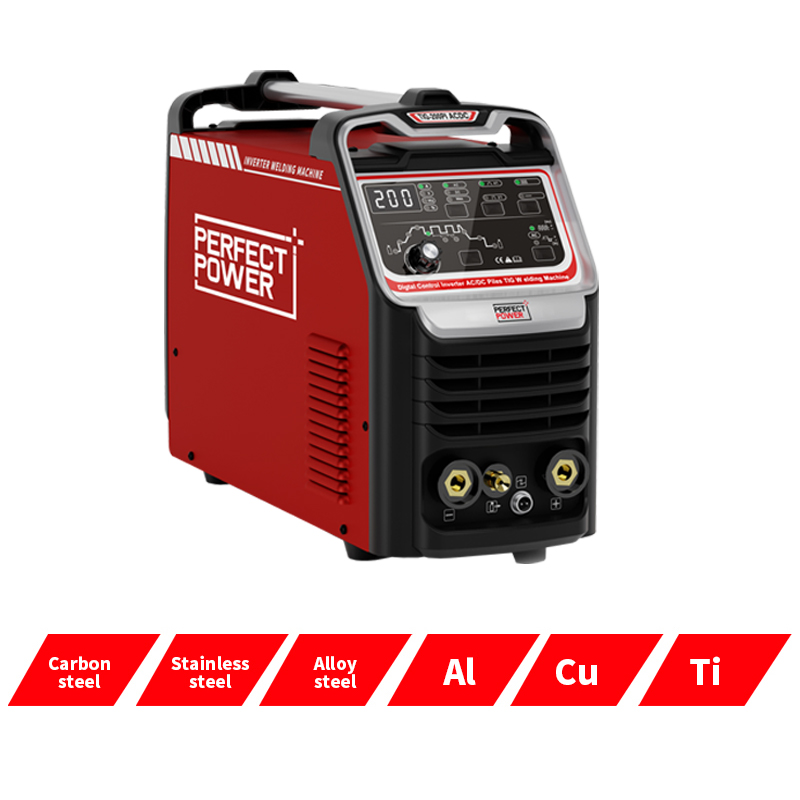

The TIG-200PI AC/DC TIG Welder is a complete and professional TIG /STICK welding machine that is ideal for all high-end aluminum, stainless steel fabrication, marine, and industrial engineering welding situations.

This TIG welding machine optional torch with amperage control & optional foot pedal switch for even more versatility and power.

In Stock

The TIG-200PI AC/DC TIG Welder gives you maximum control over High-Frequency AC/DC TIG welding for incredible results from start to finish. This 1 Phase stick welding machine features capable of different shapes of welding, like butt-joint, corner joint, T-joint, lap joint, and cruciform joint

The TIG-200PI AC/DC TIG Welder is a complete and professional TIG /STICK welding machine that is ideal for all high-end aluminum, stainless steel fabrication, marine, and industrial engineering welding situations.

This TIG welding machine optional torch with amperage control & optional foot pedal switch for even more versatility and power.

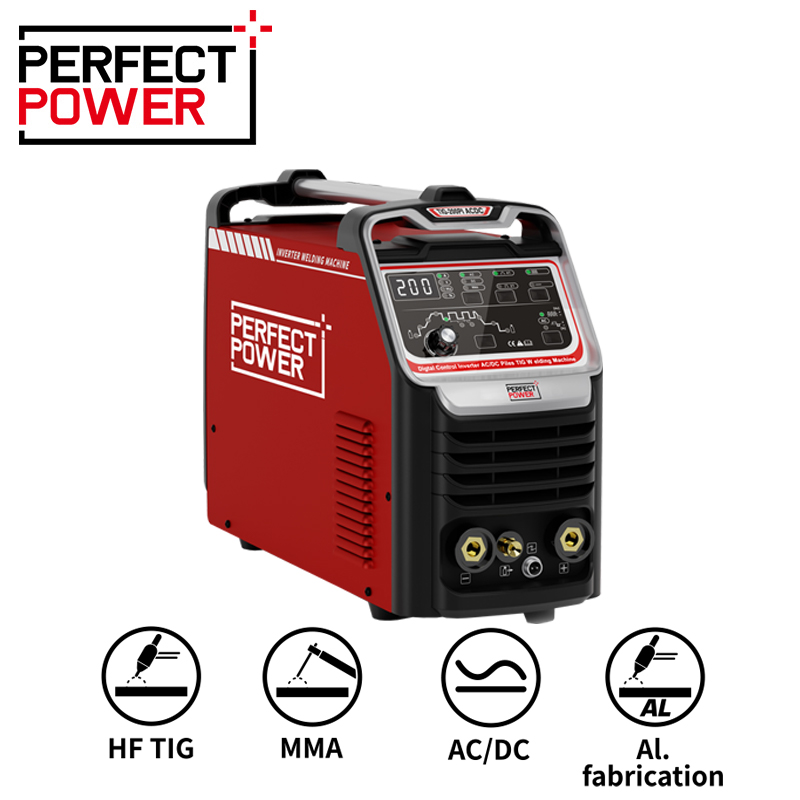

1. Multi-function welding – AC TIG, AC pulsed TIG, DC TIG, DC pulsed TIG, MMAand Auto welding
2. High frequency arc start with high success rate.
3. Adjustable clean width and clean scope

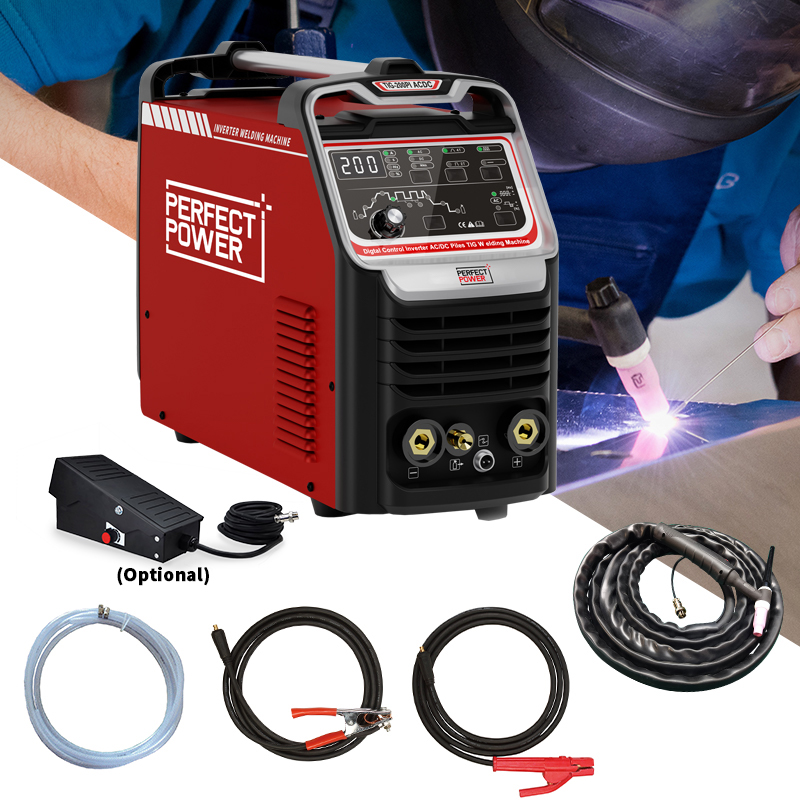

4. Optional torch with amperage control & optional foot pedal switch
5. Digital control technology and one-knob intelligent control panel
6. Intelligent over-voltage,low-voltage,over-current and over-heat protection,safe and reliable
7. Capable for different shapes welding, like butt joint, corner joint, T-joint,lap joint and cruciform joint

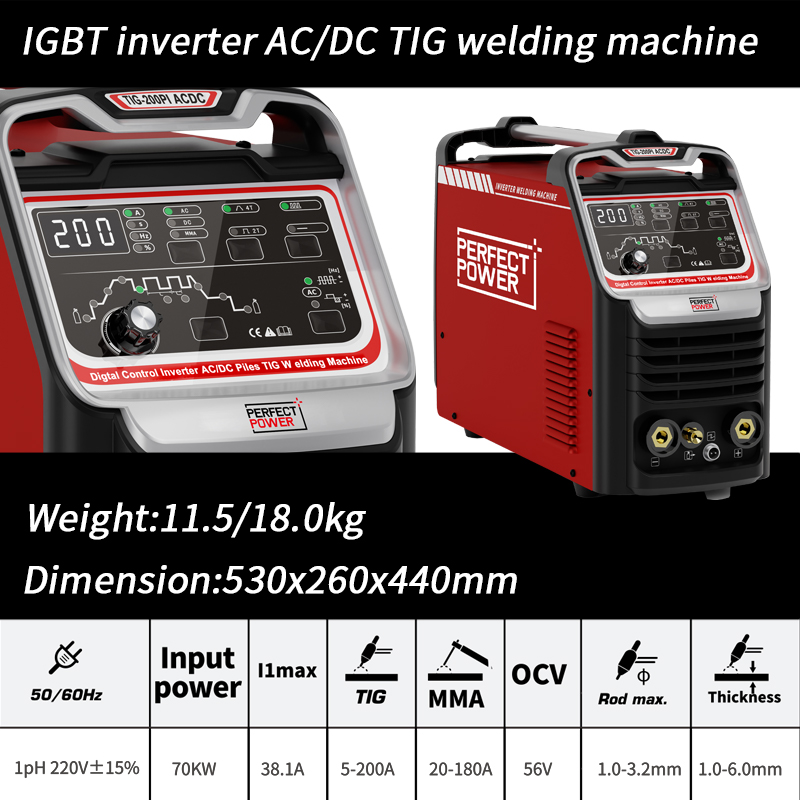

Model

TIG-200PI

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

7

Rated current input(A)

38.1

Rated output current(A)/voltage(V)

200/18.0(TIG), 180/27.2(MMA)

Welding current range(A)

10-200(TIG), 20-180(MMA)

Open circuit voltage DC(V)

56

Rated duty cycle(%)

60%

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

530*260*440

N.W.(kg)

11.5/18.0
