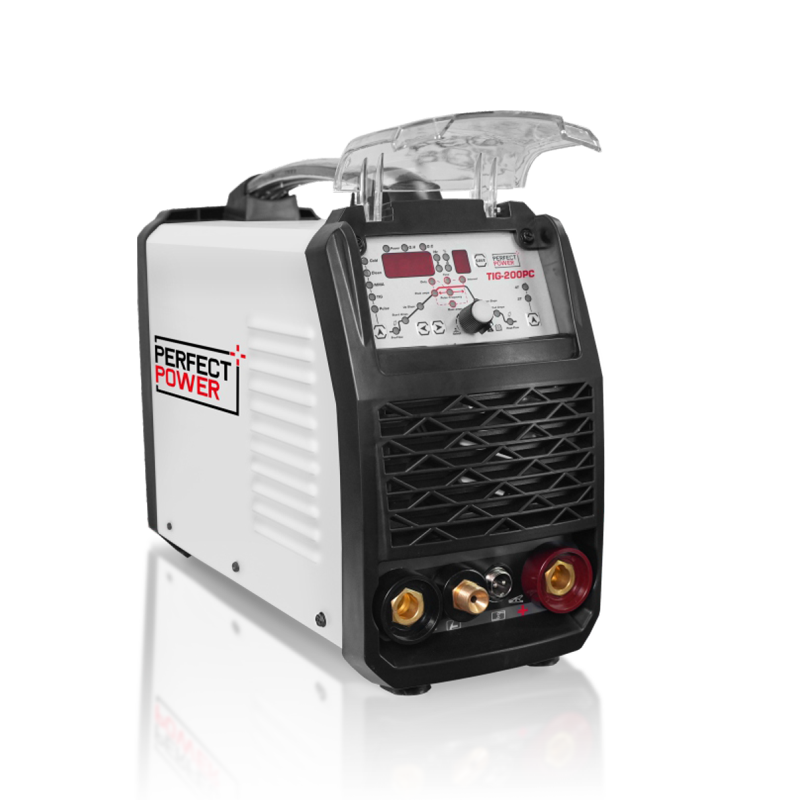

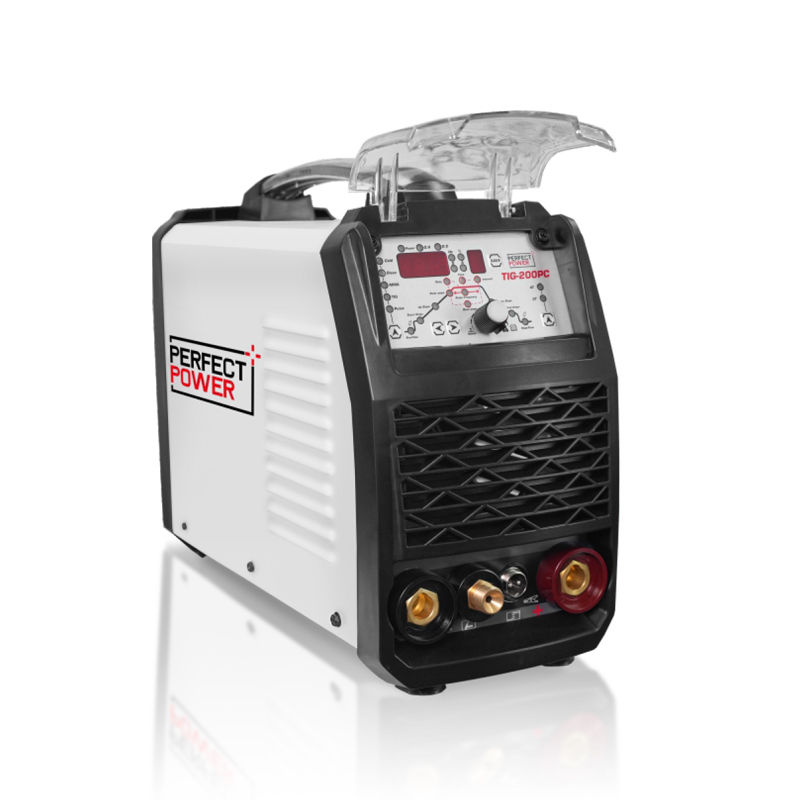

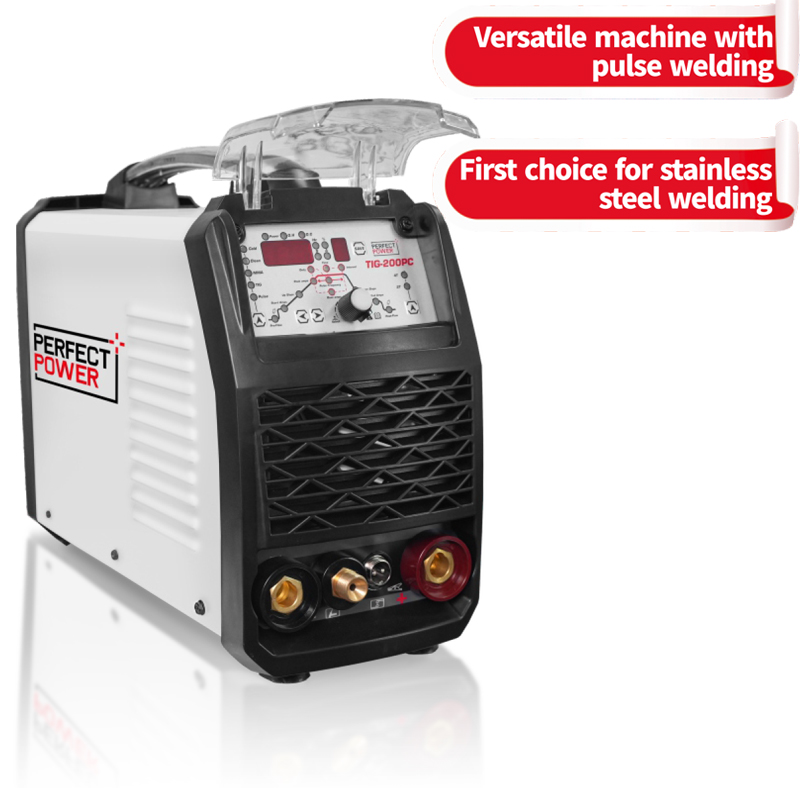

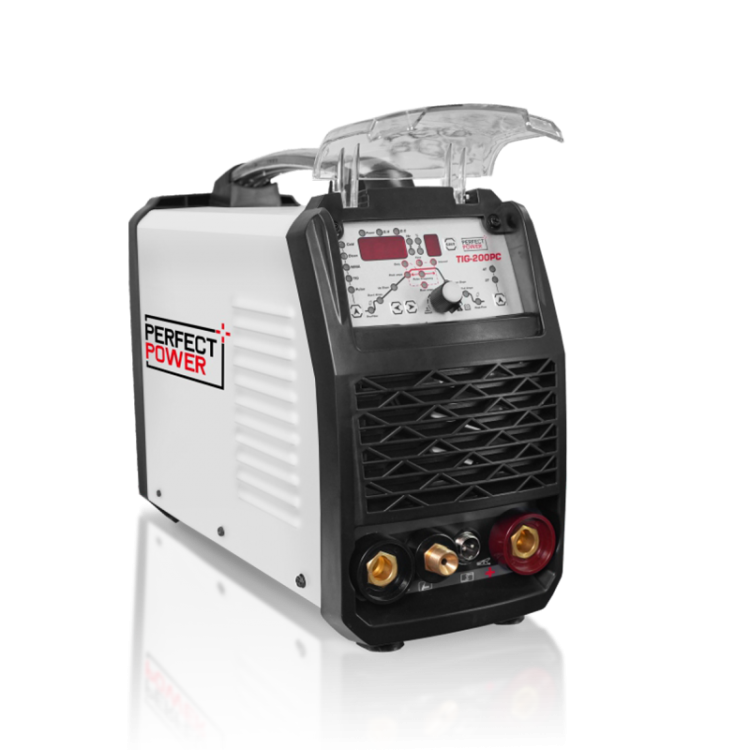

TIG-200PC TIG Welder

200-Amp TIG/Stick/Clean Welder 110-Volt Digital Arc Welding Machine High Frequency with IGBT Inverter

TIG-200PC TIG welder is a multi-functional 5-in-1 DC TIG, Cold TIG, Pulse TIG, MMA, and Clean professional combo welder capable of welding stainless steel, iron, mild steel, and nickel. These functions allow control of the welding process at a professional level from start to finish. It is perfect for any home project, for example, repairing your bedstead, snowblower, saw table, and other household equipment via its outstanding 40% duty cycle. It is also ideal for DIY programs. Take your welding projects anywhere, thanks to our lightweight welder machine, and start welding today.

In Stock

TIG-200PC TIG welder is a multi-functional 5-in-1 DC TIG, Cold TIG, Pulse TIG, MMA and Clean professional combo welder capable of welding stainless steel, iron, mild steel, and nickel. These functions allow control of the welding process at a professional level from start to finish. It is perfect for any home project, for example, repairing your bedstead, snowblower, saw table, and other household equipment via its outstanding 40% duty cycle. It is also ideal for DIY programs. Take your welding projects anywhere, thanks to our lightweight welder machine, and start welding today.

Features:

1. Multi-function welder: DC TIG, Cold TIG, Pulse TIG, MMA, and Clean function.
2. Exceptional energy-saving performance and high reliability.
3. With HF TIG arc starting, allows to strike the arc easily with high frequency and makes it easy to establish an arc under a variety of conditions
4. Digital control technology, accurate welding power control, Cold TIG spot welding 0.4mm sheet with no deformation.
5. Clean function, to clean the rust and oil on the surface of the material, like carbon steel and stainless steel.
6. 2T/4T function, adjustable Pre-Flow and Post-Flow.
7. Capable for different shapes of welding, like butt-joint, corner joint, T-joint, lap joint, and cruciform joint
8. Over current & heating protection.

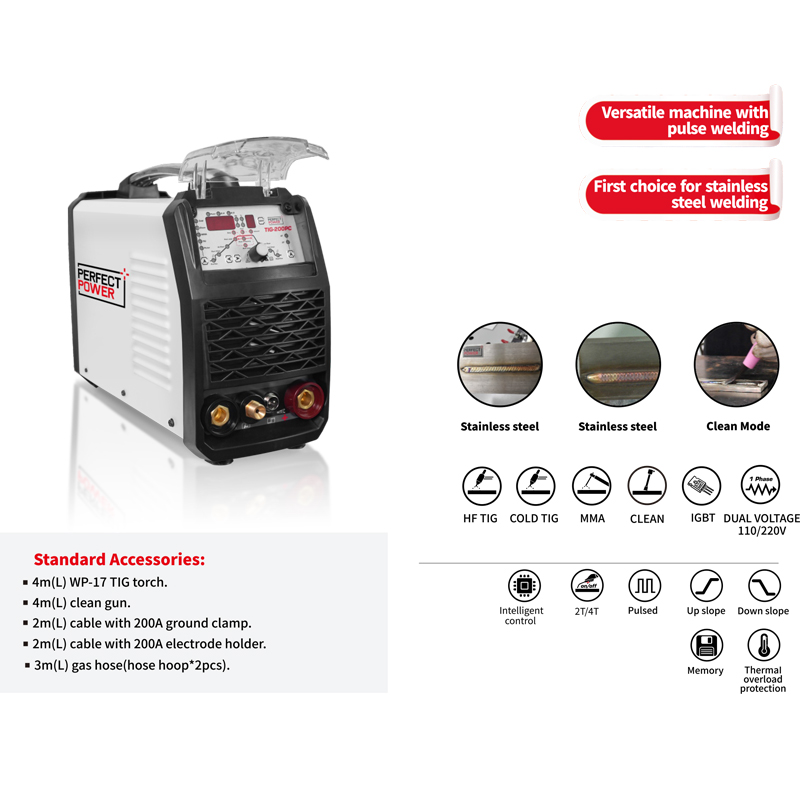

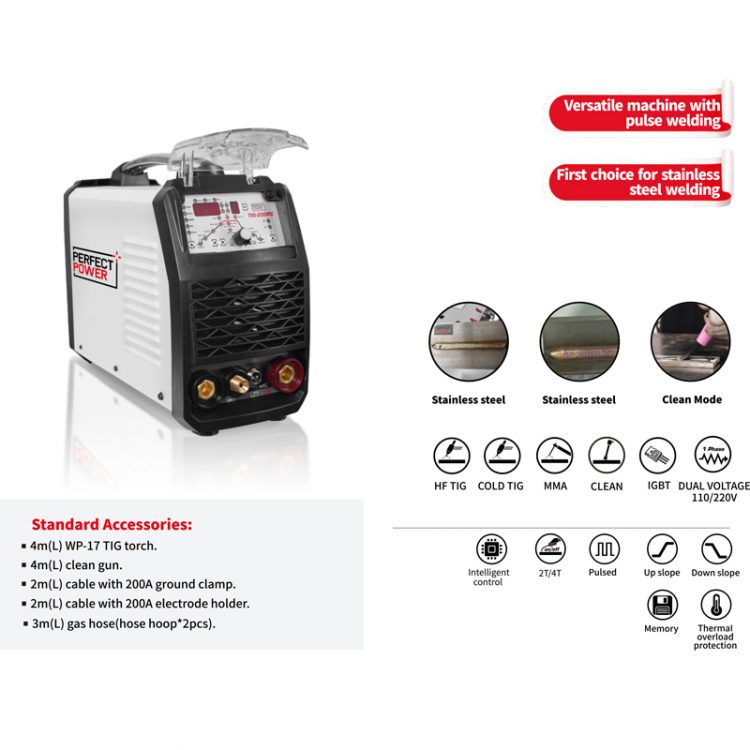

What’s Included:

4M(L)WP-17 TIG torch
4M(L) clean gun
2M(L) cable with 200A ground clamp.
2M(L) cable with 200A electrode holder
3M(L) gas hose(hose hoop*2pcs)

Power input AC(V)

1ph 110V/220V ±15%

Power input frequency(Hz)

50/60 Hz

Max. Load Power Capacity(kVA)

6kVA

Rated current input(A)

31A

Rated output current(A)/voltage(V)

190A/17.6V(TIG , 220V) 160A/26.4V(MMA , 220V) / 130A/15.2V(TIG , 110V) 130A/25.2V(MMA , 110V)

Welding current range(A)

10-190A(TIG , 220V) 20-160A(MMA , 220V) / 10-130A(TIG , 110V) 20-130A(MMA ,

Open circuit voltage DC(V)

65V

Rated duty cycle(%)

40%

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

480*240*408 mm

N.M./G.W.(kg)

7.5kg/10.5kg

Welding Process

DC TIG, Cold TIG , Pulse TIG, MMA, Clean

Diameter of tungsten electrode(mm)

1.0~3.2 mm

Thickness of welding material(mm)

Steel/Carbon Steel:1.0~6.0mm
Stainless Steel:1.0~6.0mm
