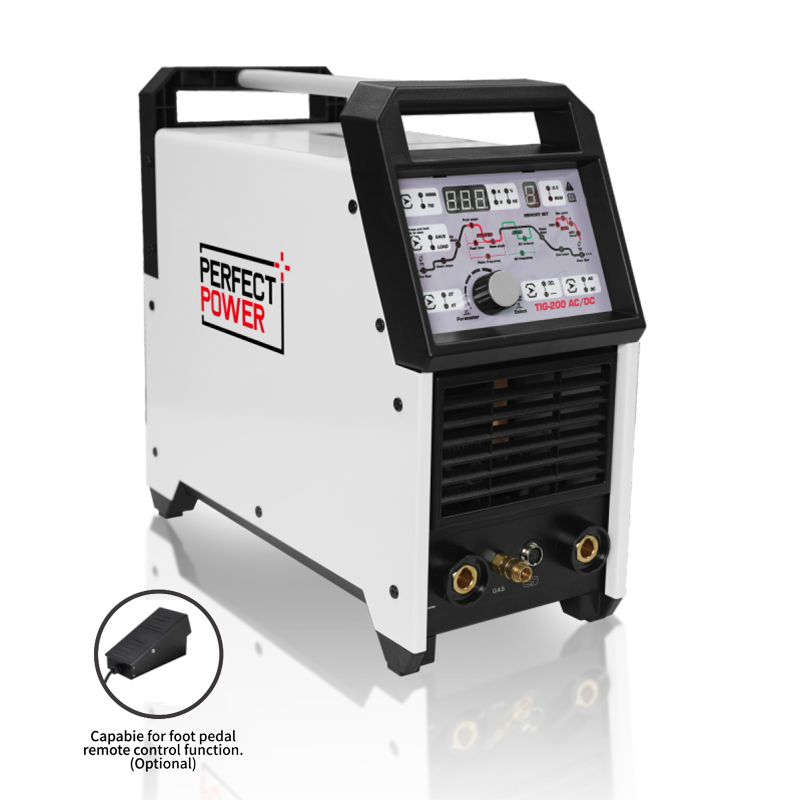

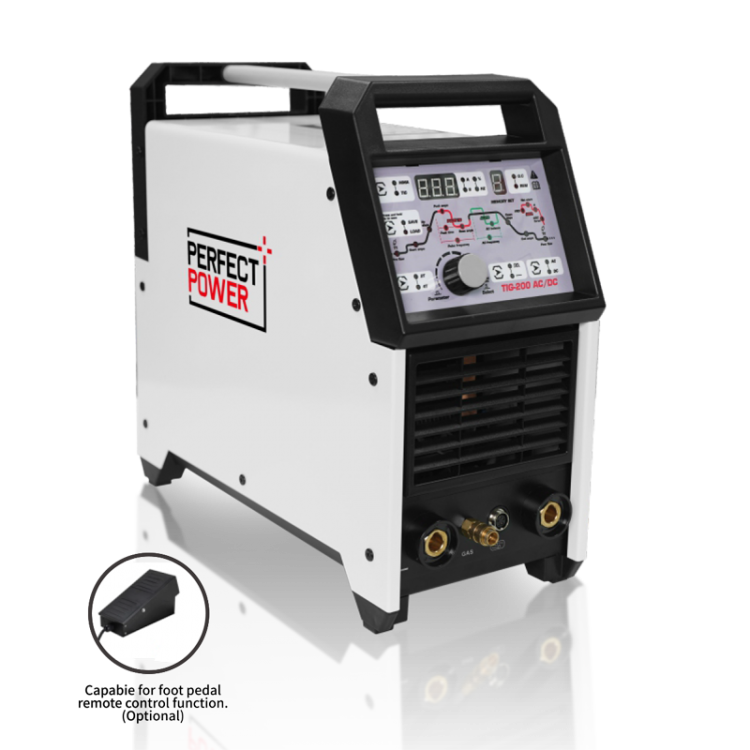

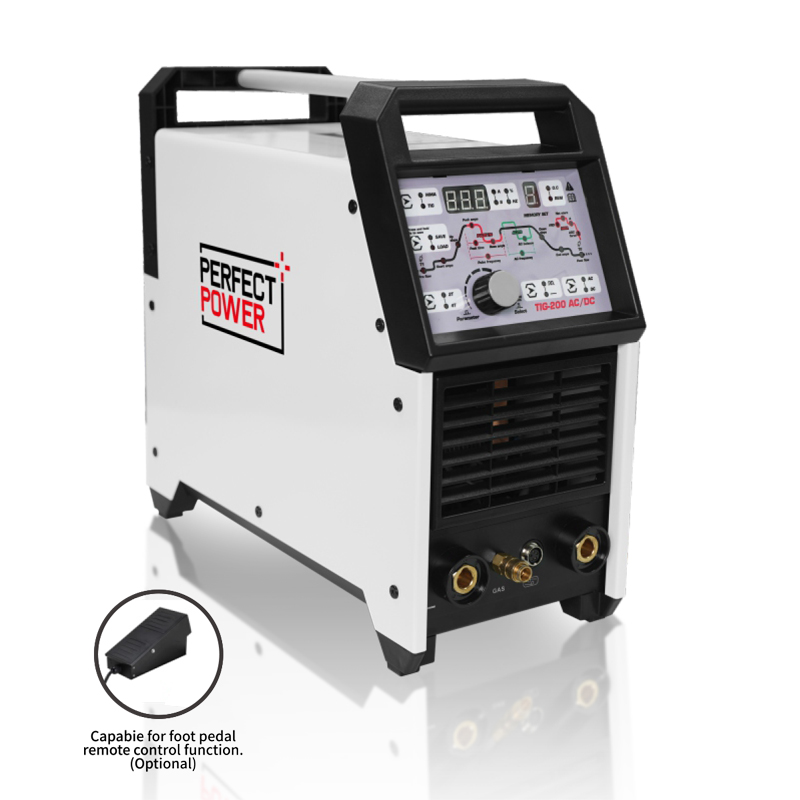

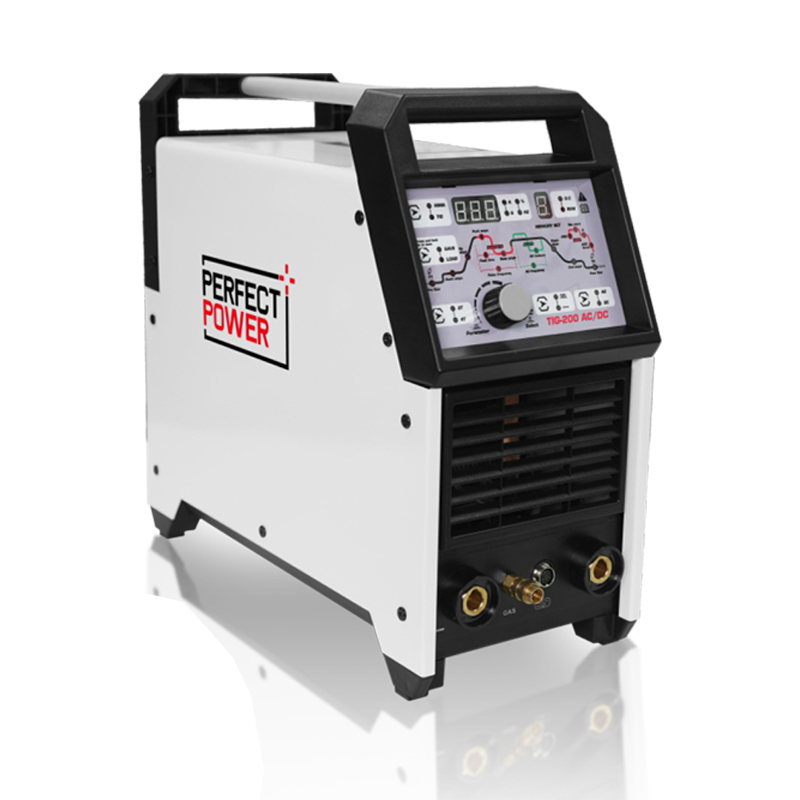

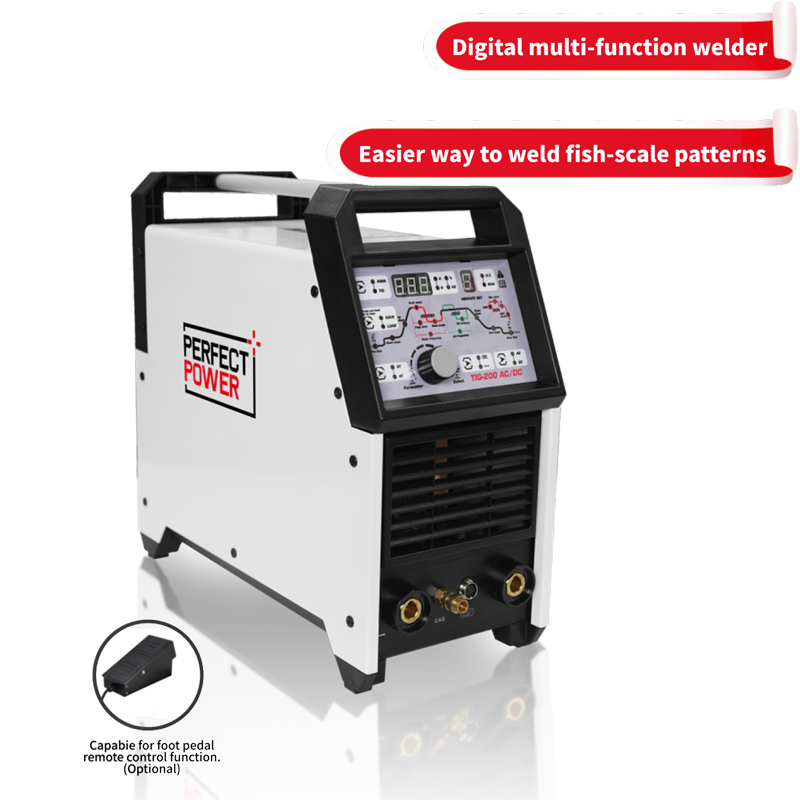

TIG-200 AC/DC TIG Welder

200 Amp AC/DC TIG Welder with Dual Voltage Technology

The TIG-200 AC/DC TIG Welder is an IGBT 200 Amp AC/DC TIG stick welder capable of welding on both 110-Volt and 220-Volt power. This tig welding machine unit’s portability allows for easy unit relocation and welding on the go, designed for aluminum fabrication, process piping, or critical maintenance work. With this arc welder, you will be able to weld thick material and thin material and save your favorite settings on the welder’s internal memory.

In Stock

The TIG-200 AC/DC TIG Welder is an IGBT 200 Amp AC/DC TIG stick welder capable of welding on both 110-Volt and 220-Volt power. This tig welding machine unit’s portability allows for easy unit relocation and welding on the go, designed for aluminum fabrication, process piping, or critical maintenance work. With this arc welder, you will be able to weld thick material and thin material and save your favorite settings on the welder’s internal memory.

Features:

1. Multi-function welding-AC TIG, AC pulsed TIG, DC TIG, DC pulsed TIG, MMA, and auto welding
2. High-frequency arc starts with a high success rate
3. Memory function for easy operation,10 sets of parameters can be saved. 4. Adjustable clean width and clean scope
5. Optional torch with amperage control & optional foot pedal switch
6. Digital control technology and one-knob intelligent control panel
7. Intelligent over-voltage, low-voltage,over-current and over-heat protection, safe and reliable
8. Capable of different shapes of welding, like butt-joint, corner joint, T-joint,lap-joint and cruciform joint

What’s Included:

2M(L) 3×2.5mm² Power Cord
3M(L) 16mm² cable with 200A ground clamp
3M(L) 16mm² cable with 200A electrode holder
4M(L) WP-26 TIG torch
3M(L) Gas Hose (Hose Hoop*2pcs)
5M(L) foot control pedal

Power input AC(V)

1ph 110V/220V ±15%

Power input frequency(Hz)

50/60 Hz

Max. Load Power Capacity(kVA)

8.4kVA

Rated current input(A)

46.3A

Rated output current(A)/voltage(V)

200A/18.0V(TIG) 180A/27.2V(MMA)

Welding current range(A)

5-200A(TIG) 20-180A(MMA)

Open circuit voltage DC(V)

62V

Rated duty cycle(%)

40%

IP grade

IP21

Insulation grade

F

Dimensions(mm)

750*285*483 mm

N.M./G.W.(kg)

18.2kg/25.4kg

Welding Process

AC TIG, AC pulsed TIG, DC TIG, DC pulsed TIG, MMA, Auto welding

Diameter of tungsten electrode(mm)

1.0~3.2 mm

Thickness of welding material(mm)

Steel/Carbon Steel:1.0~6.0mm
Stainless Steel:1.0~6.0mm
Aluminum:1.0~4.0 mm
