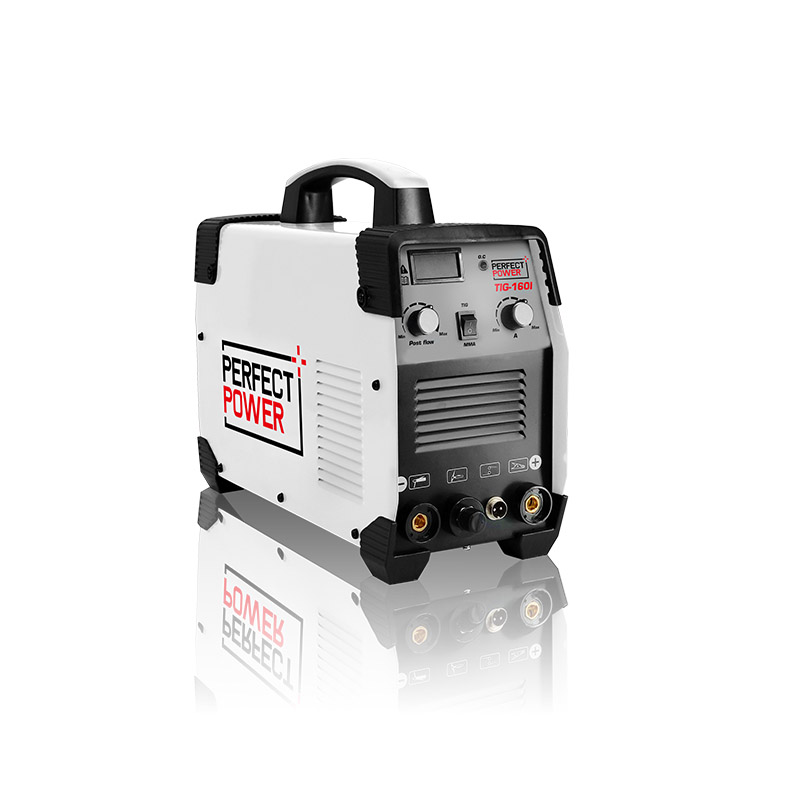

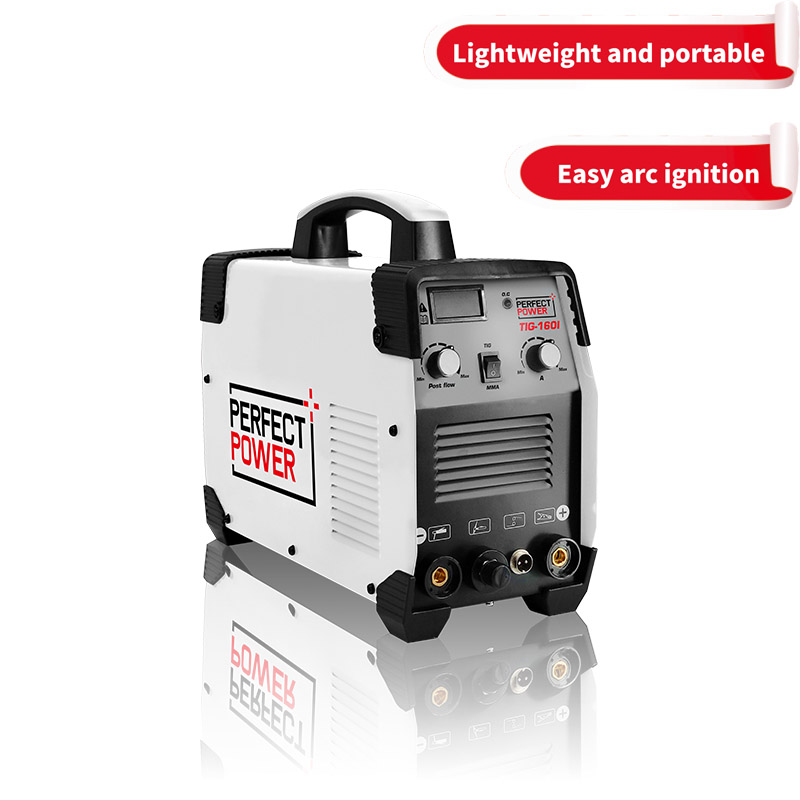

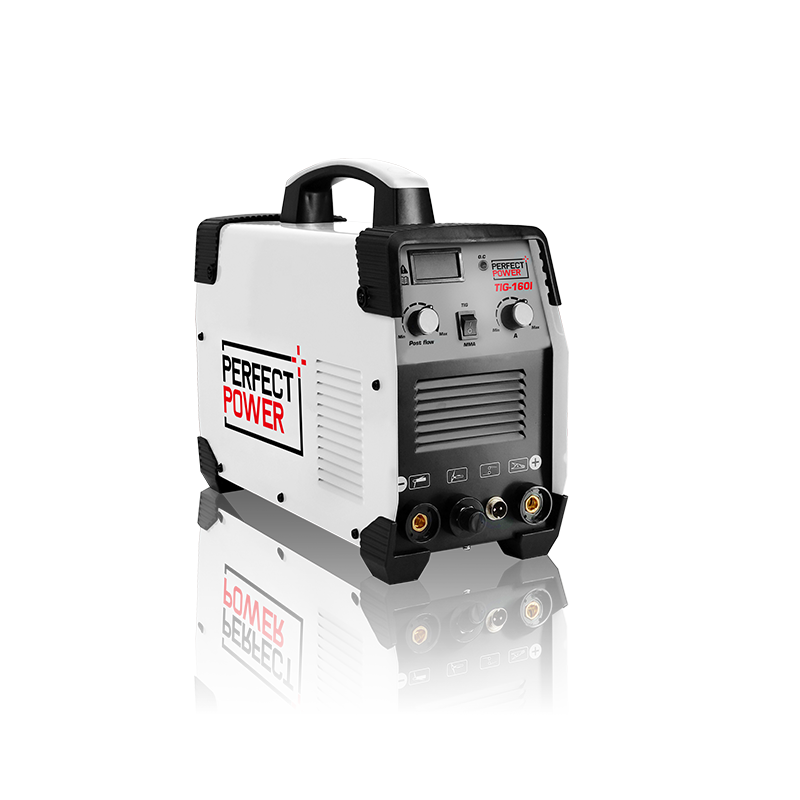

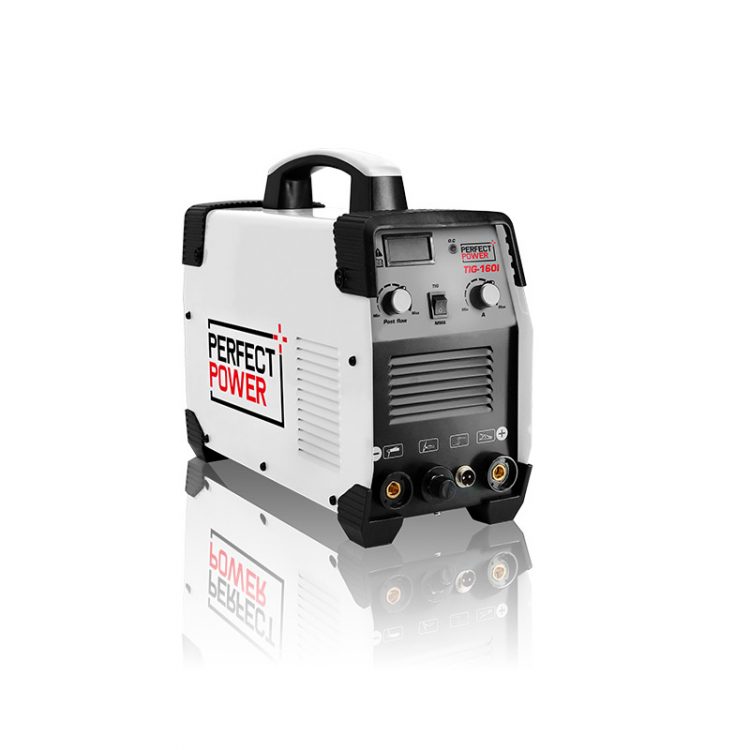

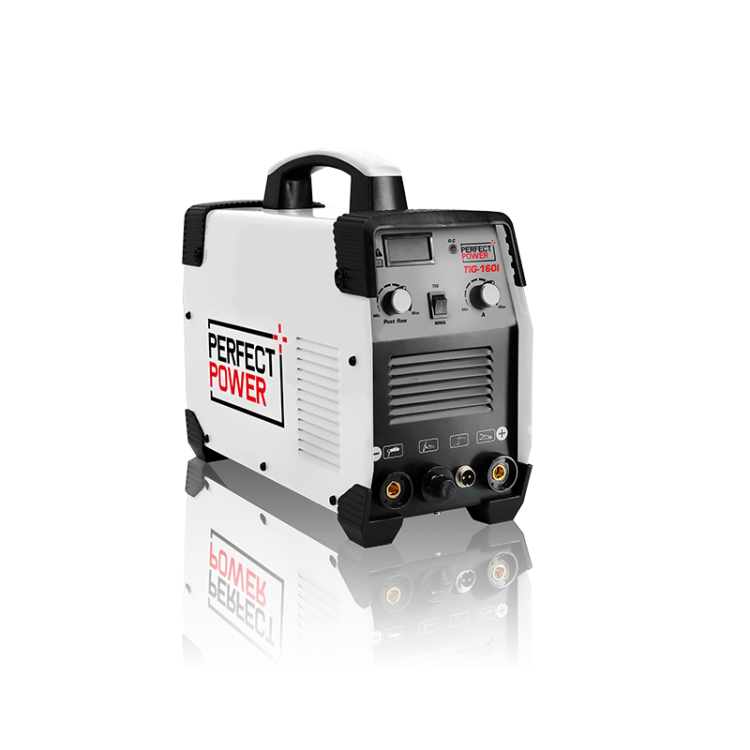

TIG-160I TIG Welder

160-Amp HF-TIG Arc Stick DC Inverter Welder, 35% Duty Cycle, 110-Volt or 220-Volt Voltage Welding

TIG-160I TIG welder is a high-quality design that is directly manufactured according to high industry standards. The TIG welding machine has excellent arc stability and extremely high control performance, which can produce the most ideal welding results. The machine also has superb production technology to achieve perfect welding. It can weld stainless steel, low carbon steel, iron, pig iron, cast iron, and other conductive metals. It is the most important tool for home maintenance, farms, construction sites and all types of environments.

In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

TIG-160I TIG welder is a high-quality design that is directly manufactured according to high industry standards. The TIG welding machine has excellent arc stability and extremely high control performance, which can produce the most ideal welding results. The machine also has superb production technology to achieve perfect welding. It can weld stainless steel, low carbon steel, iron, pig iron, cast iron, and other conductive metals. It is the most important tool for home maintenance, farms, construction sites and all types of environments.

Features：

1. Both TIG & MMA function.
2. Exceptional energy-saving performance and high reliability.
3. Thanks to the high frequency & high voltage arc ignition circuit, it realizes excellent arc starting with a 99.8% success rate, especially suited for different types of spot welding.
4. Adjustable post-flow function.
5. Suitable for welding stainless steel, alloy steel, carbon steel, and copper, etc.
6. Over current & heating protection.

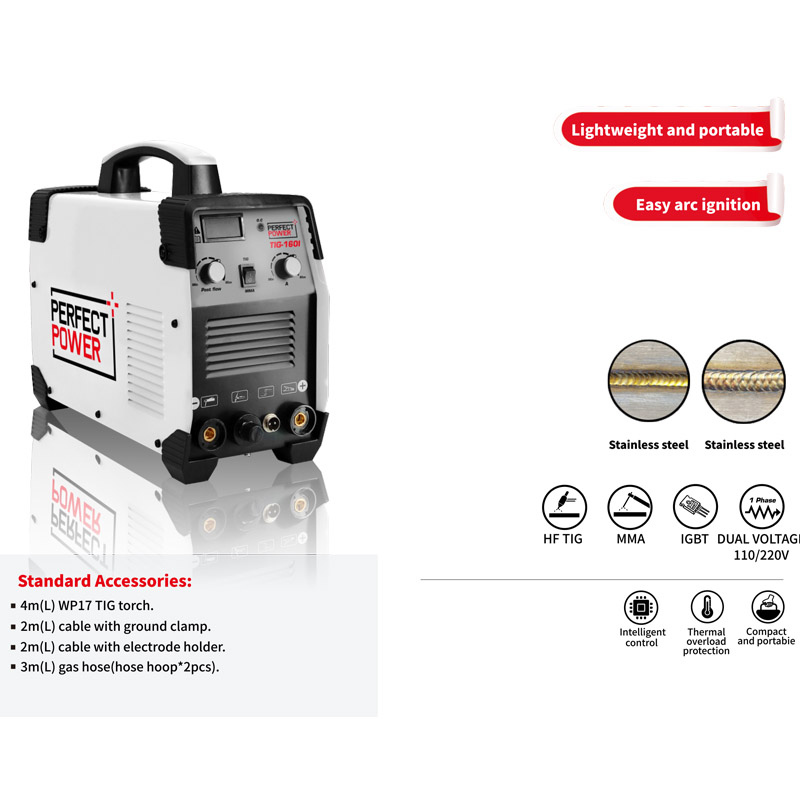

What’s Included：

4m(L) WP17 TIG torch
2m(L) cable with ground clamp
2m(L) cable with electrode holder
3m(L) gas hose(hose hoop*2pcs)

Power input AC(V)

1ph 110V/220V ±15%
Power input frequency(Hz)

50/60 Hz
Max. Load Power Capacity(kVA)

6.8kVA
Rated current input(A)

52.8A
Rated output current(A)/voltage(V)

160/16.4 （TIG） 160/26.4（MMA）
Welding current range(A)

10-160 （TIG） 20-160 （MMA）
Open circuit voltage DC(V)

60V
Rated duty cycle(%)

35%
IP grade

IP21S
Insulation grade

F
Dimensions(mm)

452*212*325 mm
N.M./G.W.(kg)

8.3kg/11.7kg
Welding Process

DC TIG,MMA welding
Diameter of tungsten electrode（mm）

1.0~3.2 mm
Thickness of welding material（mm）

Steel/Carbon Steel:1.0~6.0mm
Stainless Steel:1.0~6.0mm
