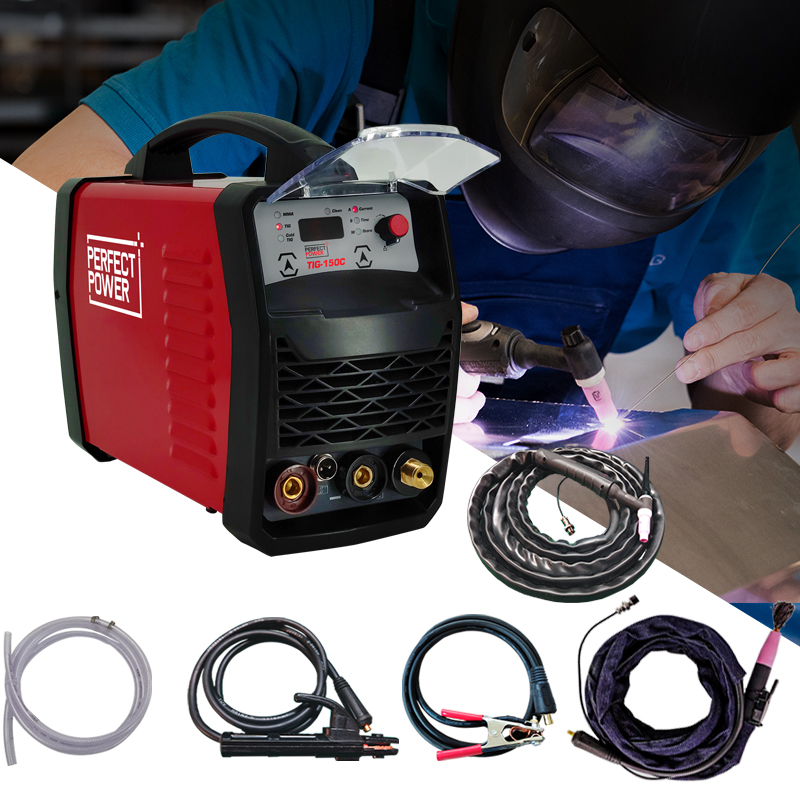

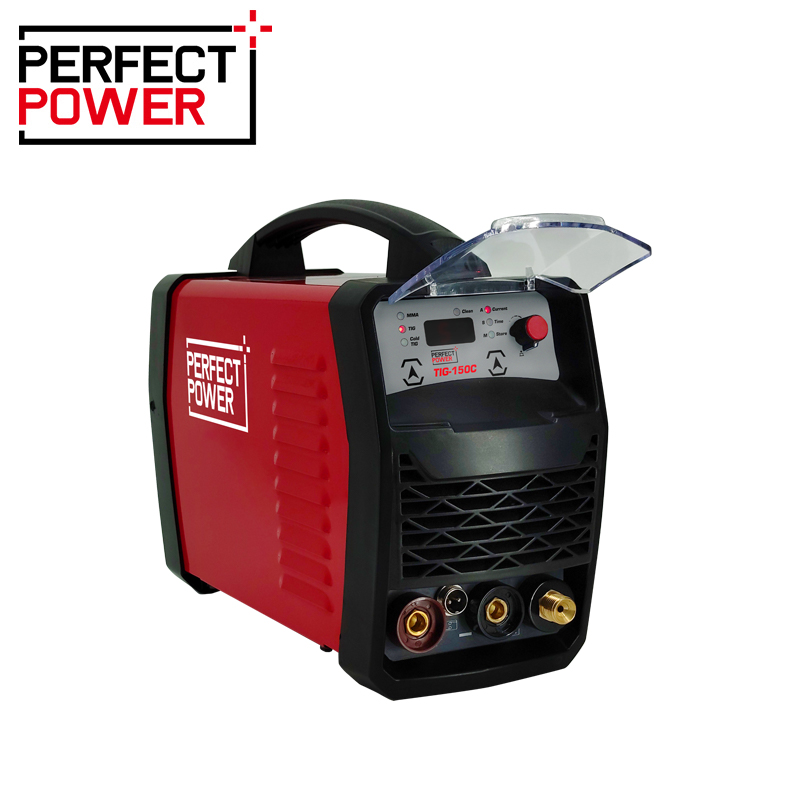

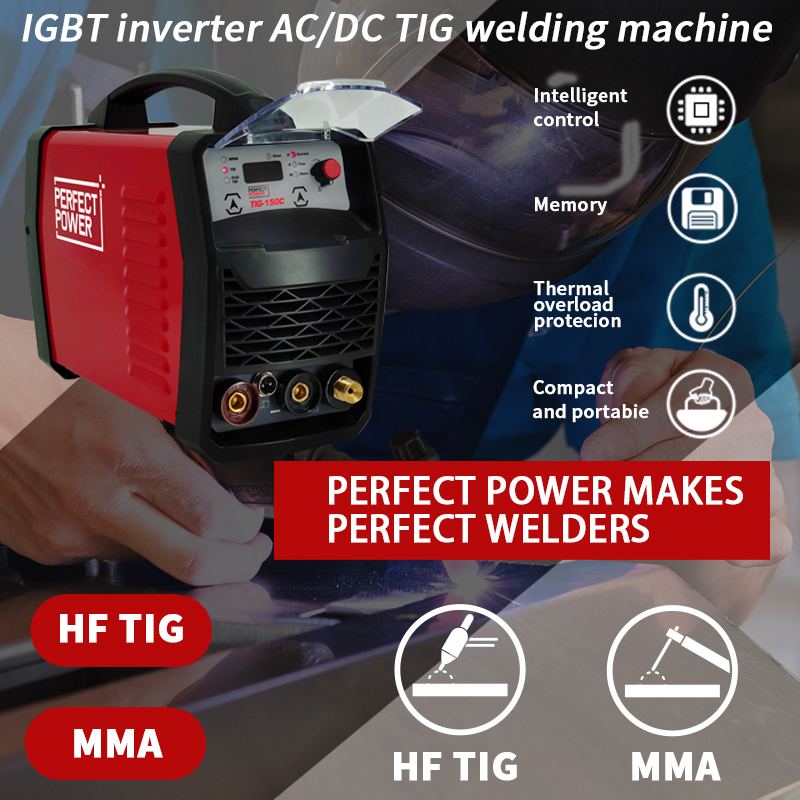

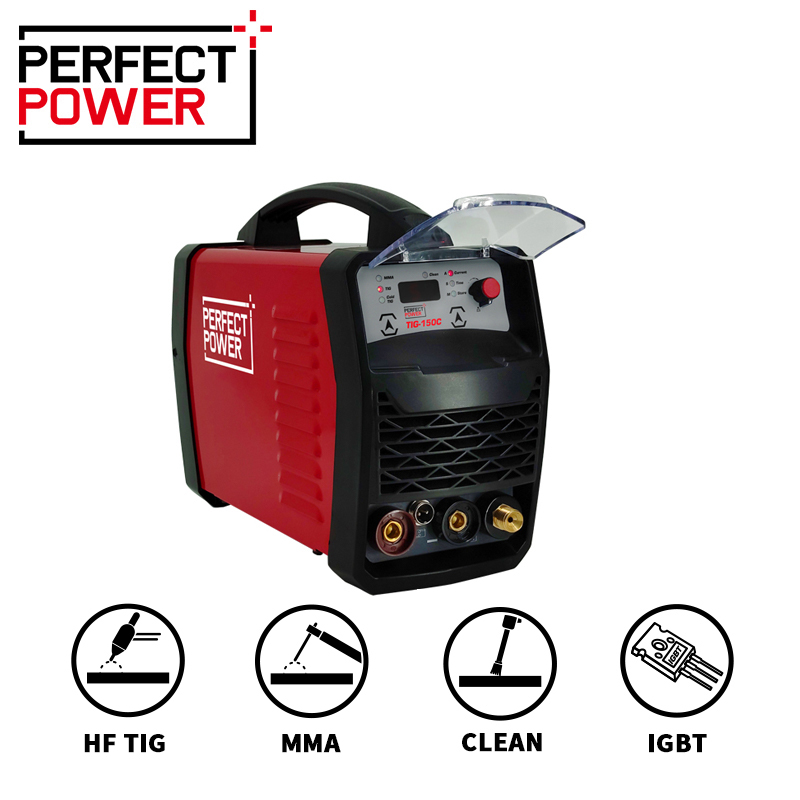

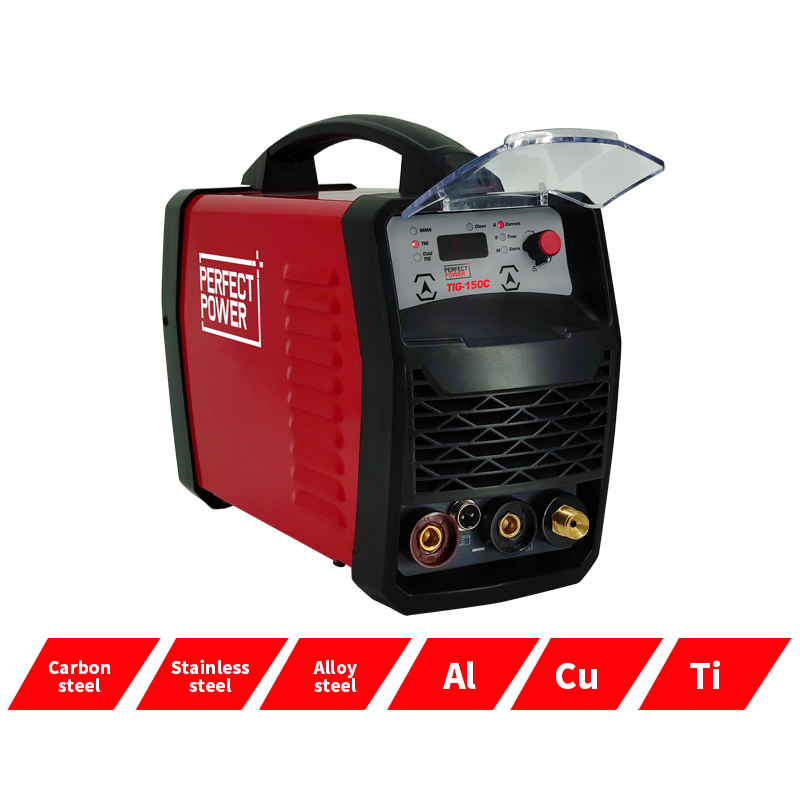

TIG-150C TIG Welder

The TIG-150C TIG Welder gives you full control over High Frequency DC TIG welding for incredible results from start to finish. Fitted with digital control technology, accurate welding power control and Cold TIG spot welding 0.4mm sheet no deformation, this is your go-to professional unit that works a treat on any worksite.

In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

The TIG-150C TIG Welder gives you full control over High Frequency DC TIG welding for incredible results from start to finish. Fitted with digital control technology, accurate welding power control and Cold TIG spot welding 0.4mm sheet no deformation, this is your go-to professional unit that works a treat on any worksite.

1. Multi-function welder: DC TIG, Cold TIG , MMA and Clean function.
2. Exceptional energy saving performance and high reliability.
3. With HF TIG arc starting, allows to strike the arc easly with high frequency and make it easy to estabish an arc under a vaiety of conditions 4. Digital control technology, accurate welding power control, Cold TIG spot welding 0.4mm sheet no deformation.
5. Clean function, to clean the rust and oil on the surface of the material, like carbon steel and stainless steel.
6. Adjustable post-flow function.
7. Compact and portable, high efficiency and energy.
8. Over current & heating protection.

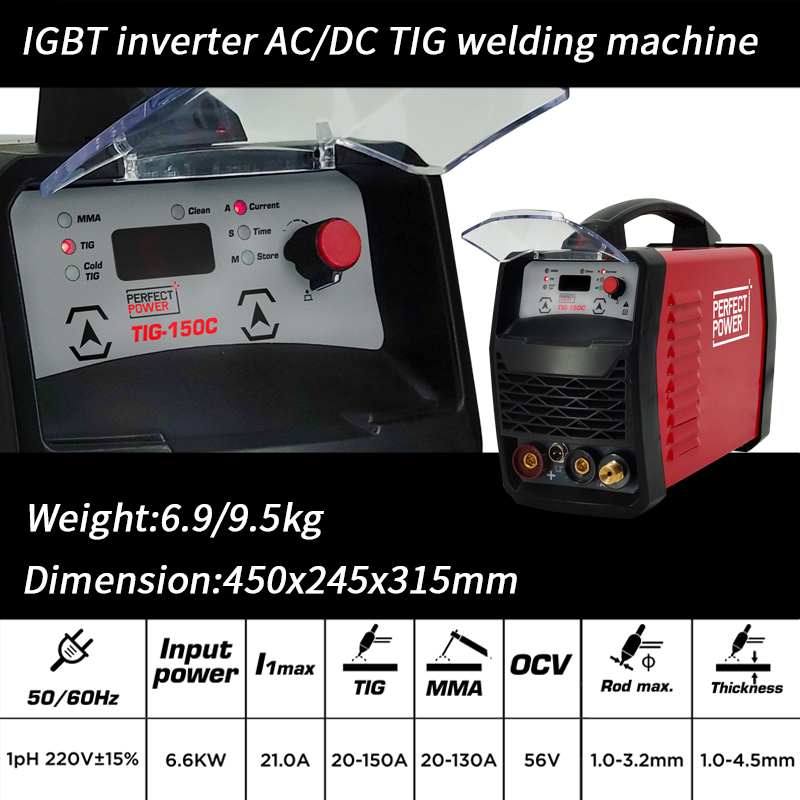

Model

TIG-150C
Power input AC(V)

1ph 220V ±15%
Power input frequency(Hz)

50/60
Max. Load Power Capacity(kVA)

6.6
Rated current input(A)

30（MMA）, 22（TIG）
Rated output current(A)/voltage(V)

150/16.0（TIG）, 130/25.2（MMA）
Welding current range(A)

20-150（TIG）, 20-130（MMA）
Open circuit voltage DC(V)

56
Rated duty cycle(%)

40%
IP grade

IP21
Insulation grade

F
Dimensions(mm)

450*245*315
N.W.(kg)

6.9/9.4
