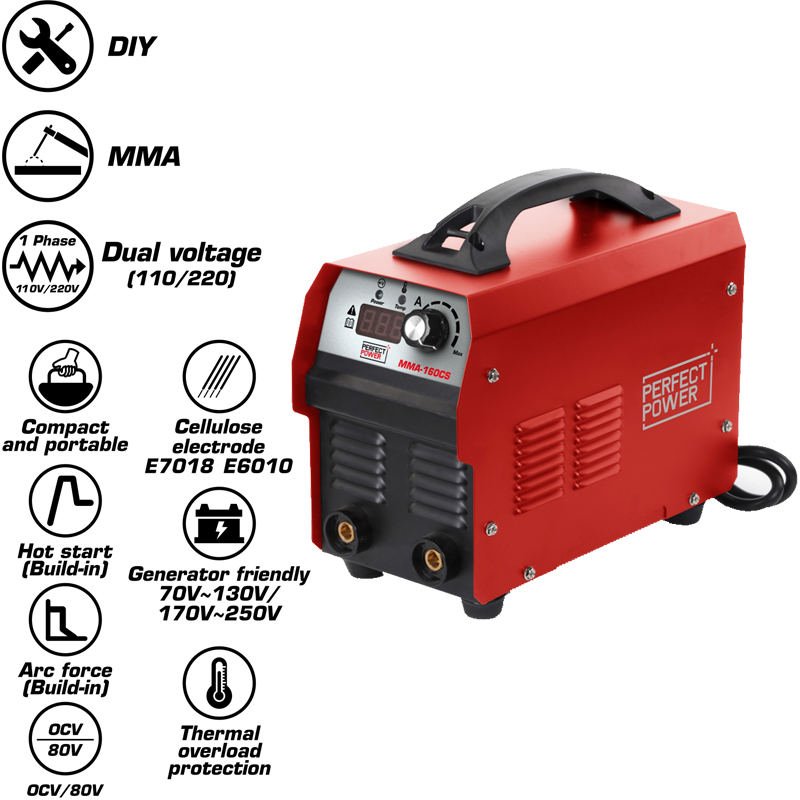

1. 80V open-circuit voltage ensures smooth cellulose electrode welding, such as E7018 and E6010.
2. Compact design, lightweight, but robust.
3. User-friendly and cost-effective.
4. Arc Force, Anti-Stick, and Hot Start technology enable easy arc starting, arc stability, and smooth welding.
5. Generator Friendly: wide voltage range supporting, 70V ~ 130V/ 170V ~ 250V.
6. Overload protection. You can just plug and then weld with a complete accessory set: MMA welding cable, earth cable, welding mask, and a steel brush.

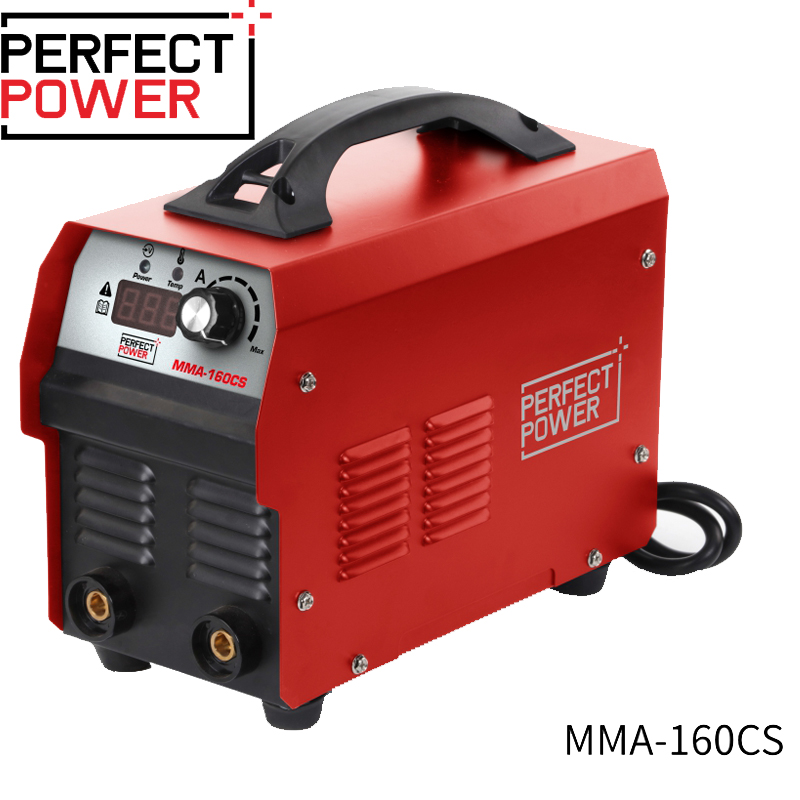

| Model | MMA-160CS |
|---|---|
| Power input AC(V) | 1ph 110V/220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 5.3（220V） 2.9（110V） |
| Rated current input(A) | 24（220V） 26（110V） |
| Rated output current(A)/voltage(V) | 160/26.4（220V） 95/23.8 （110V） |
| Welding current range(A) | 20-160（220V） 20-95 （110V） |
| Open circuit voltage DC(V) | 80 |
| Rated duty cycle(%) | 40 |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 380*240*300 |
| N.W(kg) | 3.2 |
