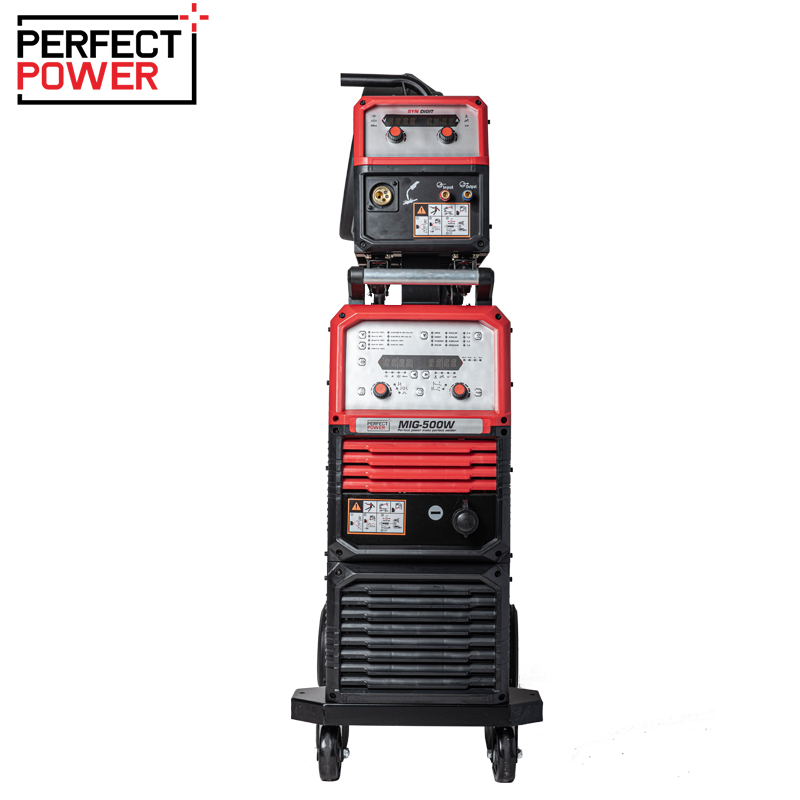

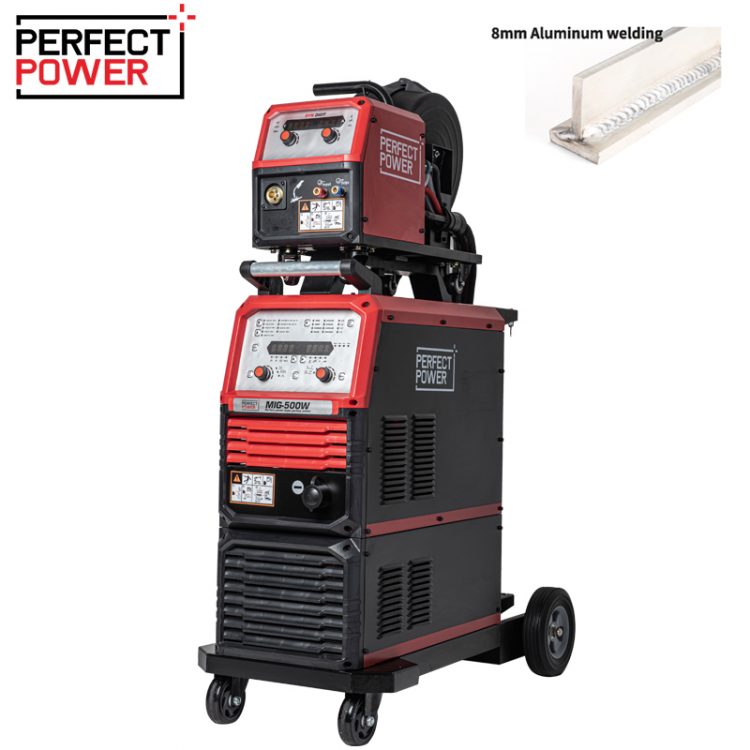

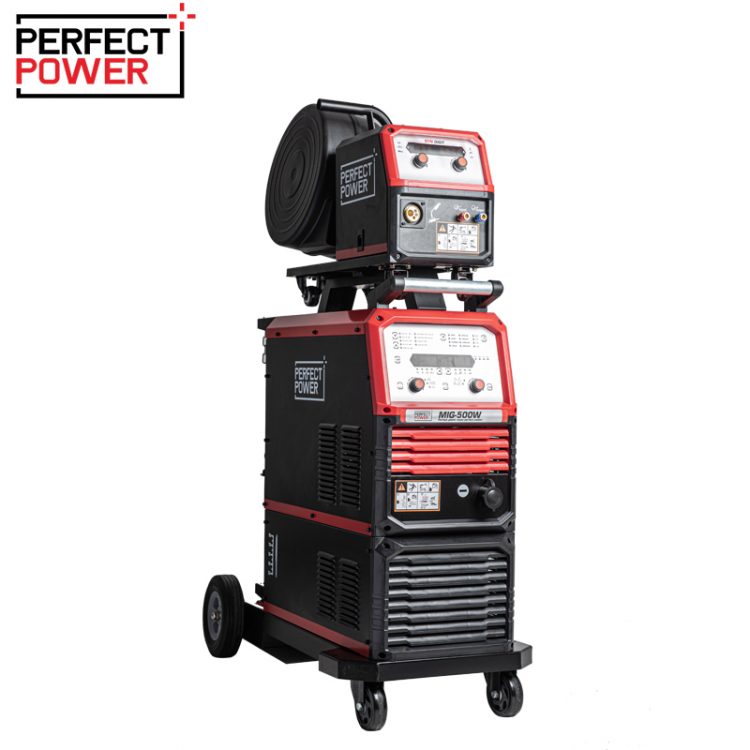

MIG-500W MIG MAG IGBT Inverter Welding Machine with a Separate Wire Feeder & Water cooled

In Stock
Ideal for industry use
Separate Wire Feeder
Water cooled
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Ideal for industry use with a Separate Wire Feeder & Water cooled
Double-pulse MIG and Flux-cored welding, the Best welder for thin metal welding, User-friendly, Spool gun optional ready for aluminum, Ideal for industry or workshop use with gas cylinder rack
The MIG-500W is an ideal welding machine with a Separate Wire Feeder & Water cooled for industry use. Made to surmount the challenges of welding and MIG brazing high-tensile steel, mild steel, stainless steel, and aluminum. This machine provides a tailored welding experience with resource-saving features at every turn.
FEATURES
1. Patented digital control software technology.
2. Synergic function.
3. Welding parameters memoried function.Overload protection & loss-phase and lack-voltage protection
4. Excellent welding capability and expert in thick metal welding
5. Could work with the industrial robot via communication modules.
6. Welding process: MIG/MAG; pulsed MIG/MAG; double pulse MIG/MAG; ARC (optional)
7. High-speed current capability achieves stable arc and high efficiency

Model

MIG-500W
Power input AC(V)

3PH/380V土10%
Power input frequency(Hz)

50/60
Max. Load Power Capacity(kVA)

24.4
Rated current input(A)

37
Welding current range(A)

40-500
Open circuit voltage DC(V)

65
Rated duty cycle (60%/100%)

500A/387A
Wire Feeding Speed(M/min)

2-21
Welding wire diameter (mm)

Φ0.8~Φ1.6
Efficiency (%)

85
Power factor (cosΦ)

0.93
IP grade

IP21
Insulation grade

F
Dimensions(mm)

99*48*95&75*38*55
Weight (KG)

76/96 & 23/25
Wire Melting Type

short circuit transfer
