Ideal for industry use with a Separate Wire Feeder
Double-pulse MIG and Flux-cored welding, the Best welder for thin metal welding, User-friendly, Spool gun optional ready for aluminum, Ideal for industry or workshop use with separate Wire Feeder

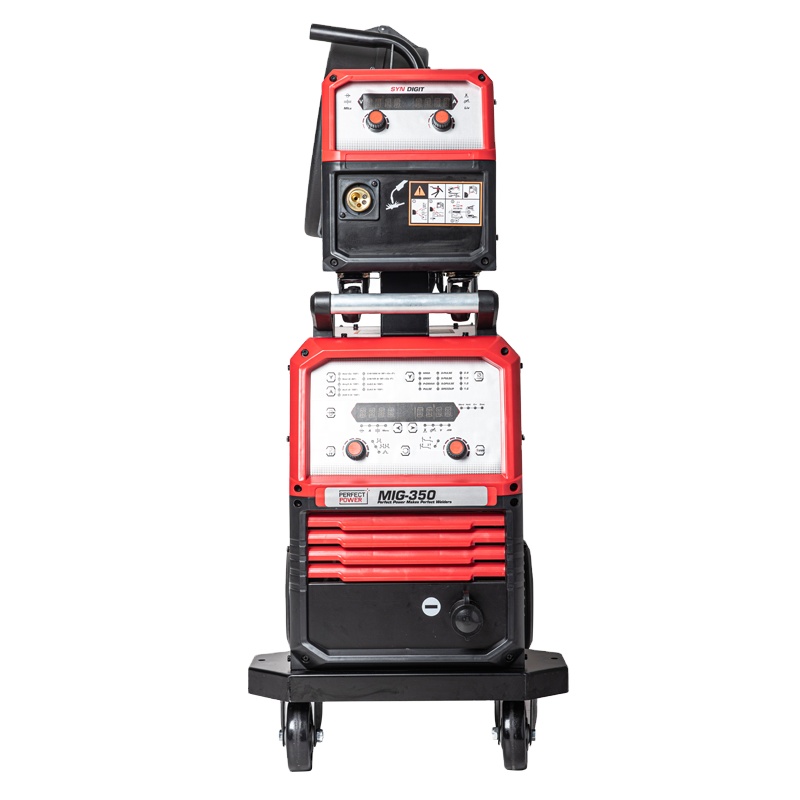

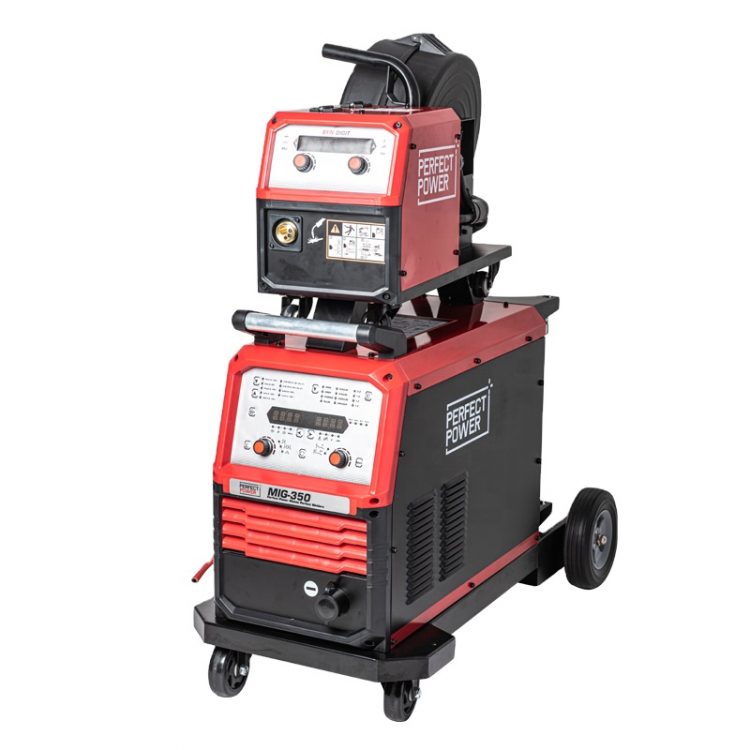

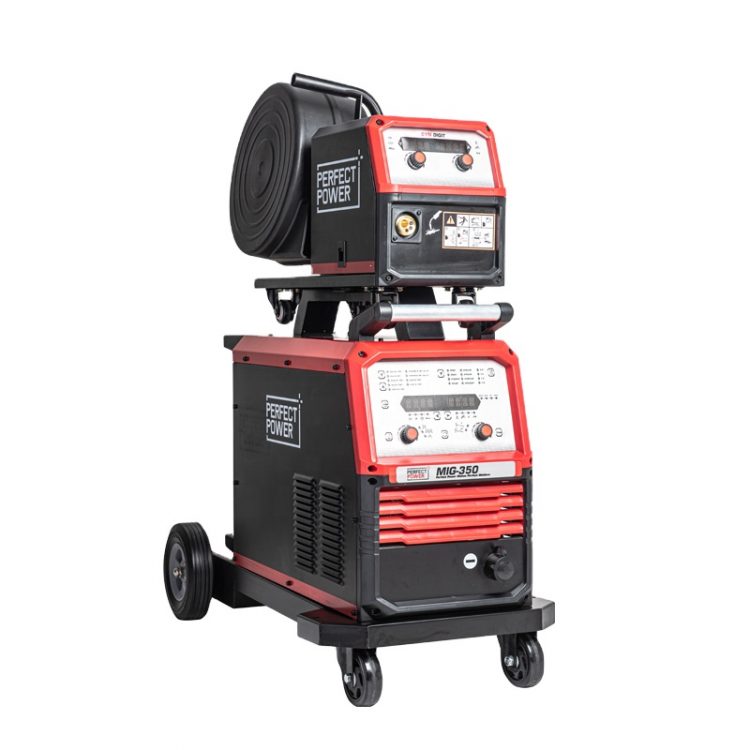

The MIG-350 is an ideal welding machine with a Separate Wire Feeder for industry use. Made to surmount the challenges of welding and MIG brazing high-tensile steel, mild steel, stainless steel, and aluminum. This machine provides a tailored welding experience with resource-saving features at every turn.
FEATURES
1. Patented digital control software technology.
2. Synergic function.
3. Welding parameters memoried function.Overload protection & loss-phase and lack-voltage protection
4. Excellent welding capability and expert in thick metal welding
5. Could work with the industrial robot via communication modules.
6. Welding process: MIG/MAG; pulsed MIG/MAG; double pulse MIG/MAG; ARC (optional)
7. High-speed current capability achieves stable arc and high efficiency
Welding for Aluminum Min. 0.8mm
Welding for Copper/Stainless steel Min. 0.8mm
Welding for Galvanized sheet/Carbon steel Min. 0.8mm
| Model | MIG-350 |
|---|---|
| Power input AC(V) | 3PH/380V土10% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 15.8 |
| Rated current input(A) | 24 |
| Welding current range(A) | 40-350 |
| Open circuit voltage DC(V) | 65 |
| Rated duty cycle (60%/100%) | 350A/271A |
| Wire Feeding Speed(M/min) | 2-21 |
| Welding wire diameter (mm) | Φ0.8~Φ1.6 |
| Efficiency (%) | 85 |
| Power factor (cosΦ) | 0.93 |
| IP grade | IP21 |
| Insulation grade | F |
| Dimensions(mm) | 99*48*71&75*38*55 |
| Weight (KG) | 59/78 & 22/24 |
| Wire Melting Type | short circuit transfer |
Related products
-

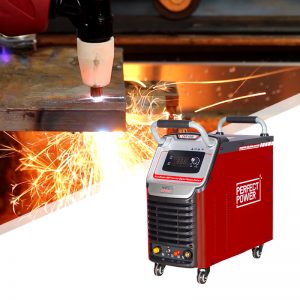

EquipmentsCUT-40D AIR IGBT Inverter Plasma Cutting Machine
