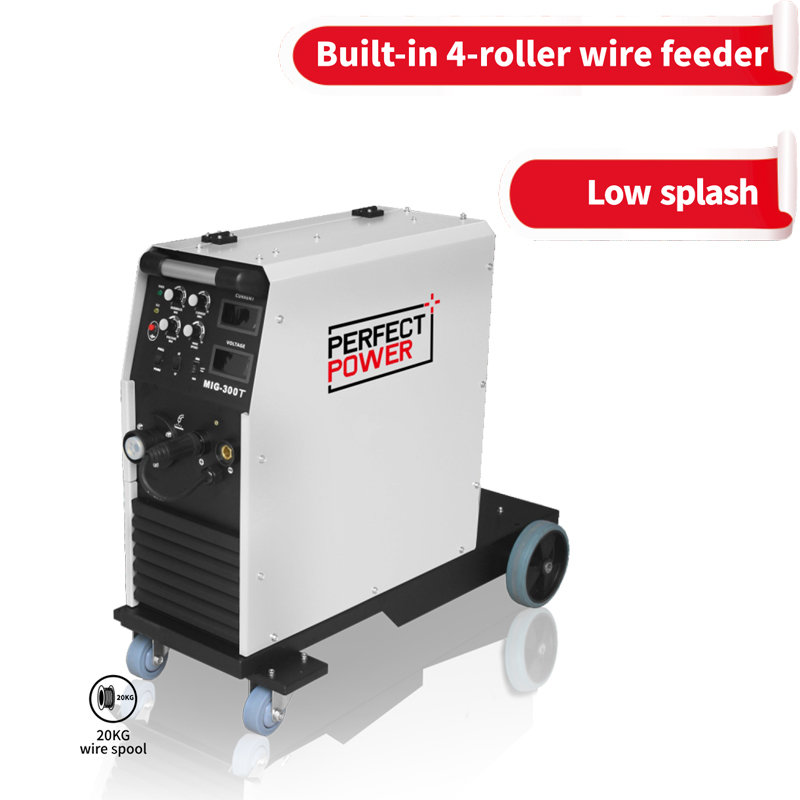

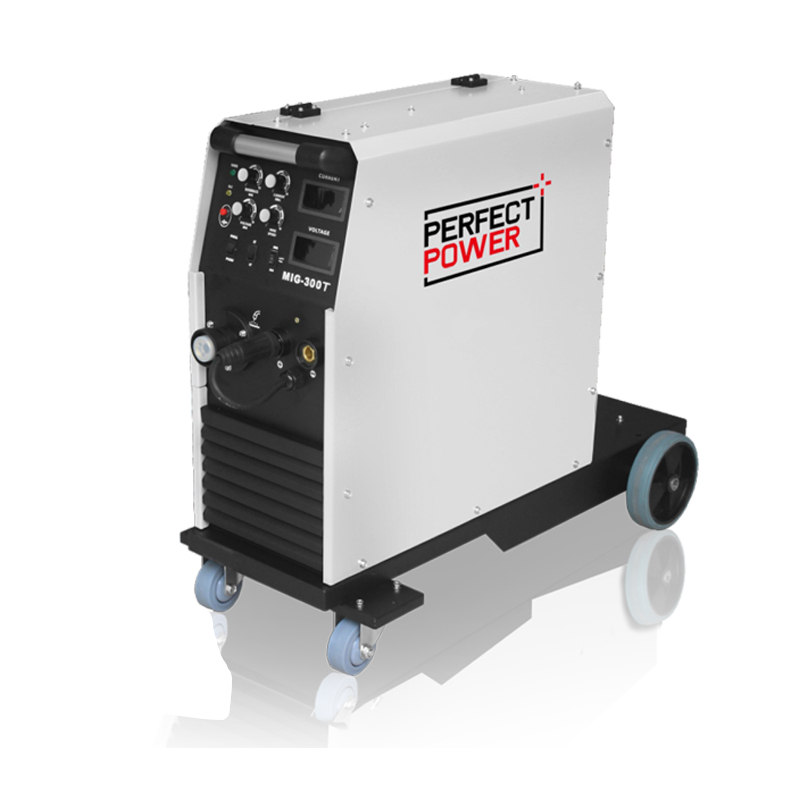

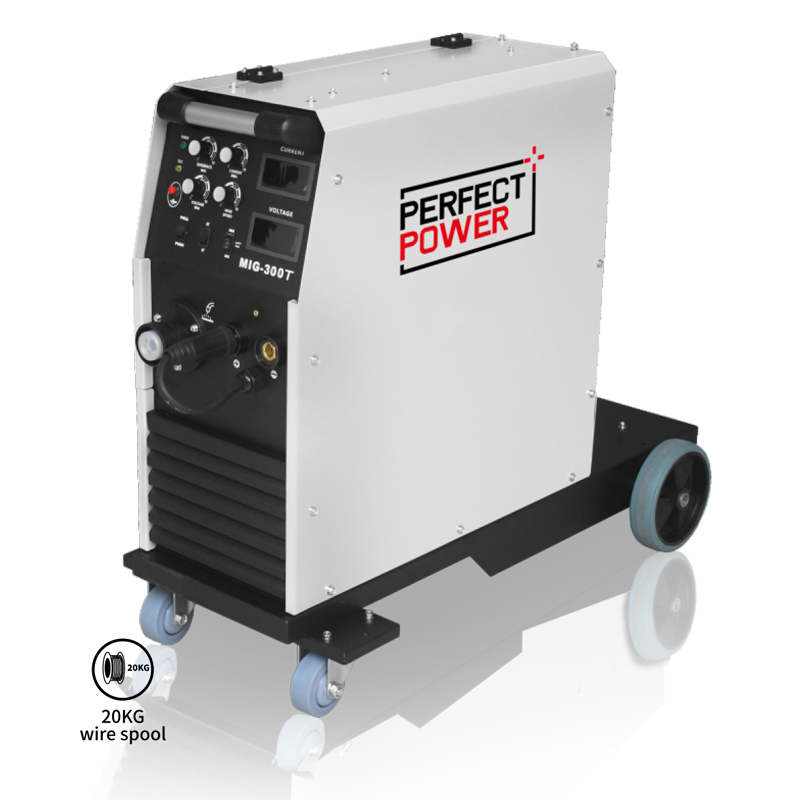

MIG-300T MIG Welder /Flux-Cored/TIG/Stick Multi-Process Welder

280 Amp MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder, 380-Volt IGBT Inverter Welding, 35% Duty Cycle

MIG-300T mig welder is a multi-functional(MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder ) electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, iron, and cast iron.

In Stock

MIG-300T mig welder is a multi-functional(MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder ) electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, iron, and cast iron.

Features:

1. Full bridge IGBT converter guarantees stable output power.
2. Multi handler for industrial use: MIG/MAG, gasless flux cored wire welding, MMA and lift TIG.
3. Centralized regulatory function, save complicated settings, and make it easier to operate.
4. Less spatter and high metal deposition rate; nice welding bead and less deformation.
5. MMA function is designed to weld various electrodes like acid, alkaline, stainless steel, cast iron, etc. with excellent performance.
6. Ideal for use in outdoor and indoor conditions.
7. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.

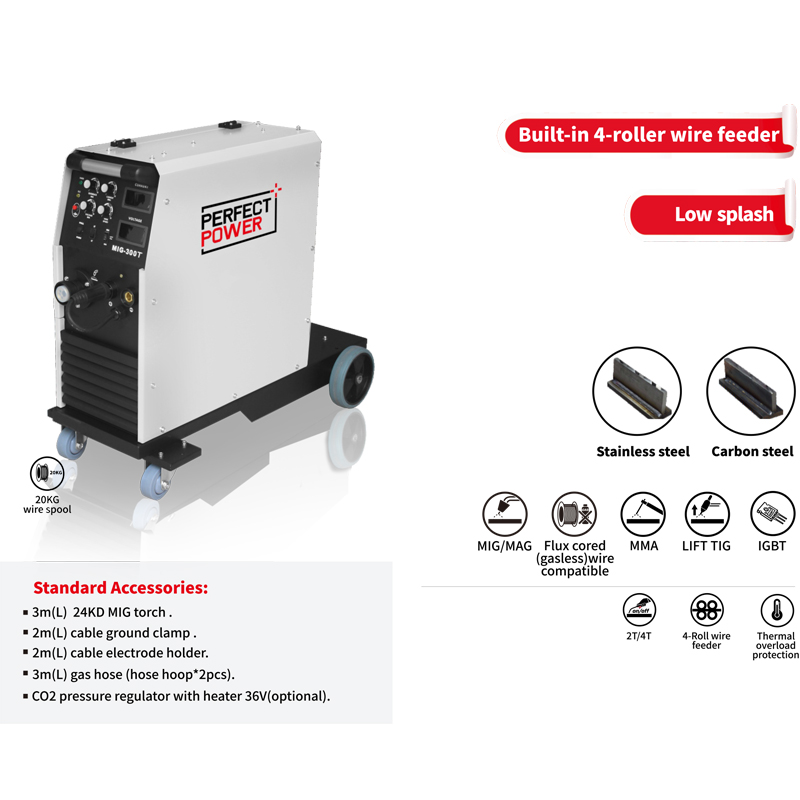

What’s Included:

3m(L) 24KD MIG torch
2m(L) cable ground clamp
2m(L) cable electrode holder
3m(L) gas hose (hose hoop*2pcs)
CO2 pressure regulator with heater 36V(optional)





Power input AC(V)

3ph 380V ±15%

Power input frequency(Hz)

50/60Hz

Max. Load Power Capacity(kVA)

10.8kVA

Rated current input(A)

28.5A

Rated output current(A)/voltage(V)

280/28.0(MIG) 250/30.0(MMA)

Welding current range(A)

50-280(MIG) 50-250(MMA)

Open circuit voltage DC(V)

62V

Rated duty cycle(%)

35%

Wire Feeding Speed(M/min)

2-18 M/min

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

685*365*675 mm

N.M./G.W.(kg)

34.8kg / 40.6kg

Wire Melting Type

short circuit transfer

Welding Process

MIG / Flux-Cored / TIG / Stick

Wirespool Capable

20kg

Recommend Wire(mm)

0.8~1.2mm

Thickness of welding material(mm)

Steel/Carbon Steel:2.0~16.0mm
Stainless Steel:2.0~16.0mm
