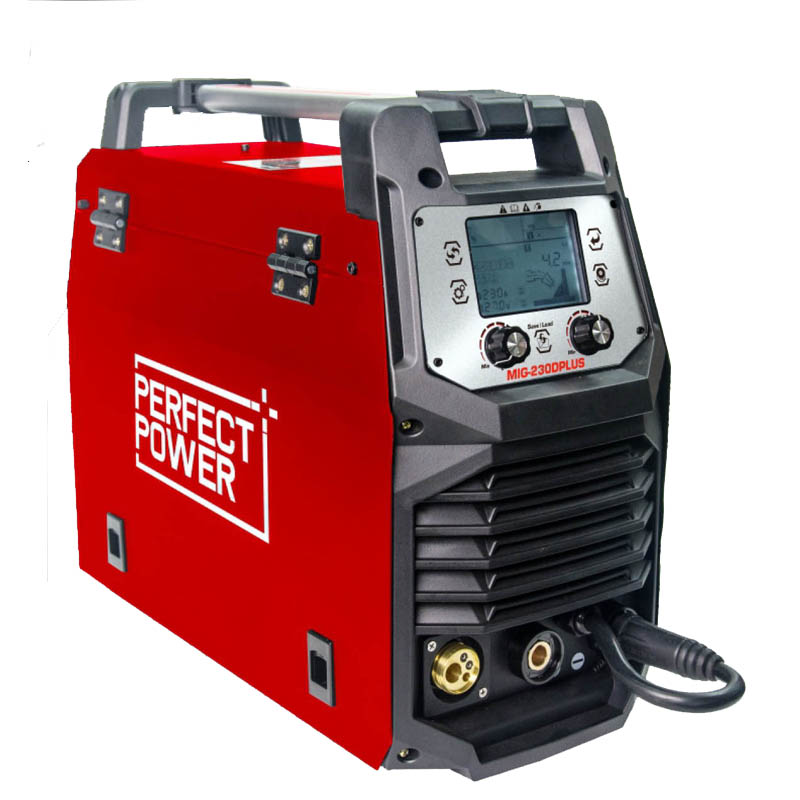

MIG-230DPLUS MIG WELDER

Categories: ,

Description

1. 5 in 1 machine-MIG/MAG, pulsed MIG/MAGdouble pulse MIG/MAG, flux cored wire welding, and MMA.
2. High resolution LCD screen help adjust welding parameter.
3. Intelligent synergic control makes your work easy.
4. Pulse and double pulse function, spatter-free welding, especially suitable for aluminum welding.
5.2T/4T/spot/ multiple choices menus such as adjustable front air/rear air/pulse frequency.
6. MMA mode with adjustable VRD control, guarantees operator safety.
7. Ideal for both indoor and outdoor use.
8. Overheat, overcurrent, and overvoltage protection.

Additional information

Model

MIG-230DPLUS
Power input AC(V)

1ph 220V 士15%
Power input frequency(Hz)

50/60
Max. load power capacity(kVA)

8.4
Rated current input(A)

35A
Welding current range(A)

20-230A
Wire-feeding speed(m/min)

2.5-15
Wire dia.

0.6mm/0.8mm/1.0mm/1.2mm
Open circuit voltage DC(V)

60V
Rated duty cycle

60%-230A100%-178A
Weldable (cutting) materials

Carbon, steel, Stainless steell, low alloy steel, AlSi, AlMg, Cu
Packing dimension(mm)

660*320*510
N.W/G.W(kg)

14.5/23
