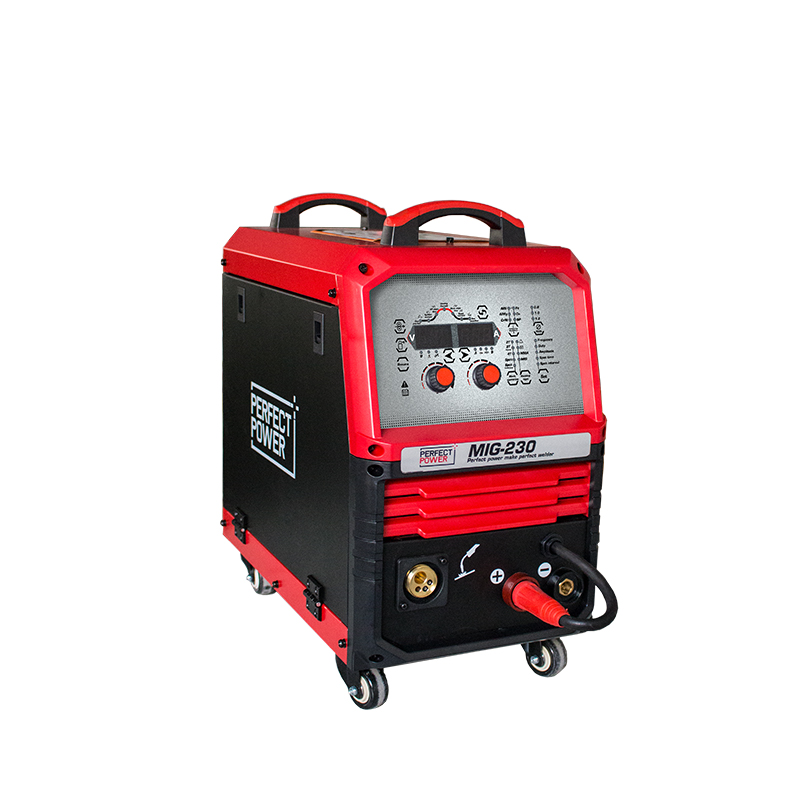

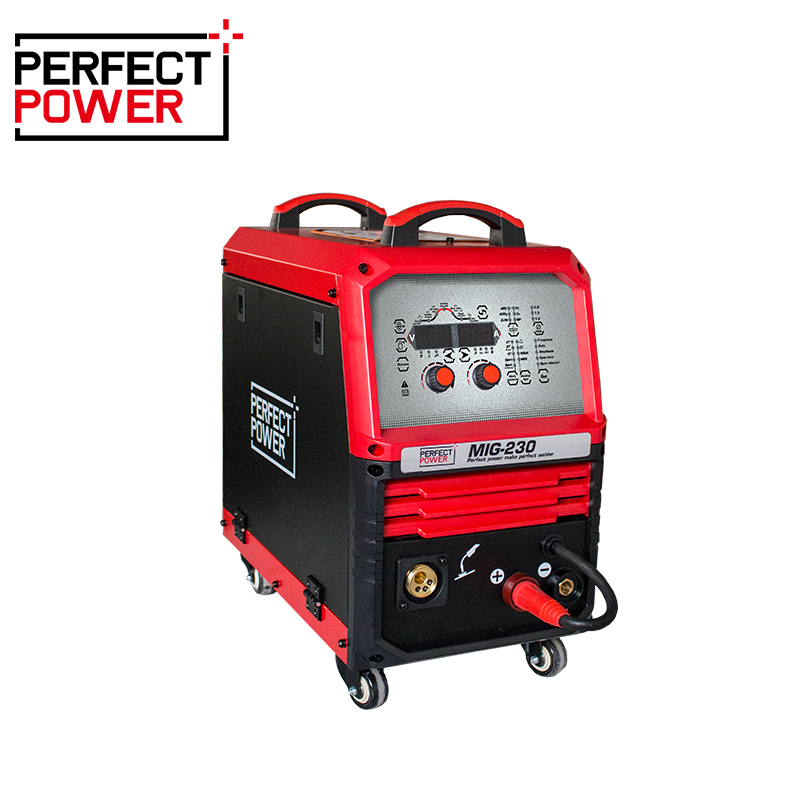

MIG-230 MIG Welder

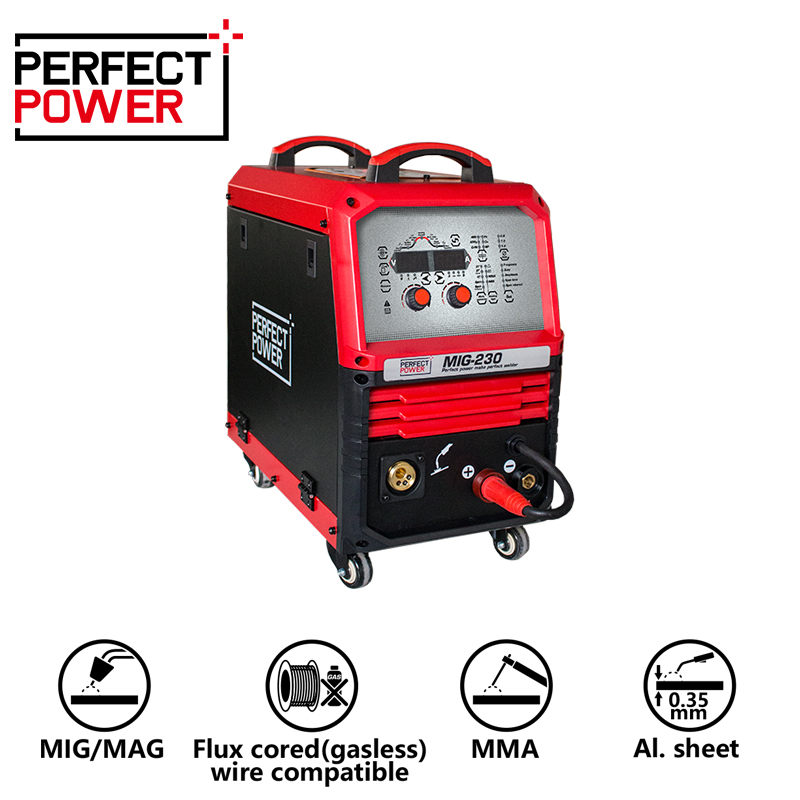

MIG-230 MIG welder is a dual-voltage MIG welders combine the versatility of welding with a 220V input with the high power output available from a 380V outlet all in one machine. MIG-230 5-in-1 Multi-Process MIG Welding Machine, specially designed for MIG/MAG, LIFT TIG, MMA, and FLUX CORED Wire welding, and renowned for its expertise in handling thin metal materials.

In Stock

MIG-230 MIG welder is a dual-voltage MIG welders combine the versatility of welding with a 220V input with the high power output available from a 380V outlet all in one machine. MIG-230 5-in-1 Multi-Process MIG Welding Machine, specially designed for MIG/MAG, LIFT TIG, MMA, and FLUX CORED Wire welding, and renowned for its expertise in handling thin metal materials.

➠【   Master of Welding Thin Metal  】 Unlock the art of welding thin metal materials with the MIG-230. Its specialized capabilities ensure impeccable welds even on the most delicate surfaces.

➠【   Patented Digital Control Software Technology  】 Experience unparalleled control with our patented digital control software technology. Achieve precise welding results with ease, thanks to its cutting-edge features.

➠【   Synergic Function for Ultimate Performance  】 Take your welding to the next level with the synergic function. Seamlessly achieve optimal welding parameters for impeccable results every time.

➠【   High-Frequency Inverter: IGBT 35 kHz  】 Experience unmatched welding stability with the high-frequency inverter technology. The IGBT 35 kHz frequency ensures a stable and consistent welding performance.

➠【   Welding Parameters Memorized Function  】Customize your welding experience with ease, as the MIG-230 memorizes your preferred welding parameters. Enjoy streamlined workflows and efficient results.

➠【   Overload and Voltage Protection for Peace of Mind  】 Your safety is paramount. The MIG-230 is equipped with overload and voltage protection, ensuring worry-free welding operations.

➠【   Compatible with Industrial Robots  】 Experience cutting-edge welding capabilities with the ability to work alongside industrial robots via communication modules. Elevate your welding efficiency like never before.

➠【   Versatile Welding Processes  】 From MIG/MAG to pulsed MIG/MAG and double pulse MIG/MAG, the MIG-230 offers versatile welding processes to suit a wide range of welding applications.

Model

MIG-230

Power input AC(V)

1ph 220V ±15%, 3ph 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

6.4

Rated current input(A)

29(380V), 9.4(220V)

Rated output current(A)/voltage(V)

220A/25V

Welding current range(A)

10-220 A

Open circuit voltage DC(V)

65

Rated duty cycle(%)

60%

Wire Feeding Speed(M/min)

2-18

IP grade

IP21

Insulation grade

F

N.M./G.W.(KG)

29/31

Wire Melting Type

globular transfer
