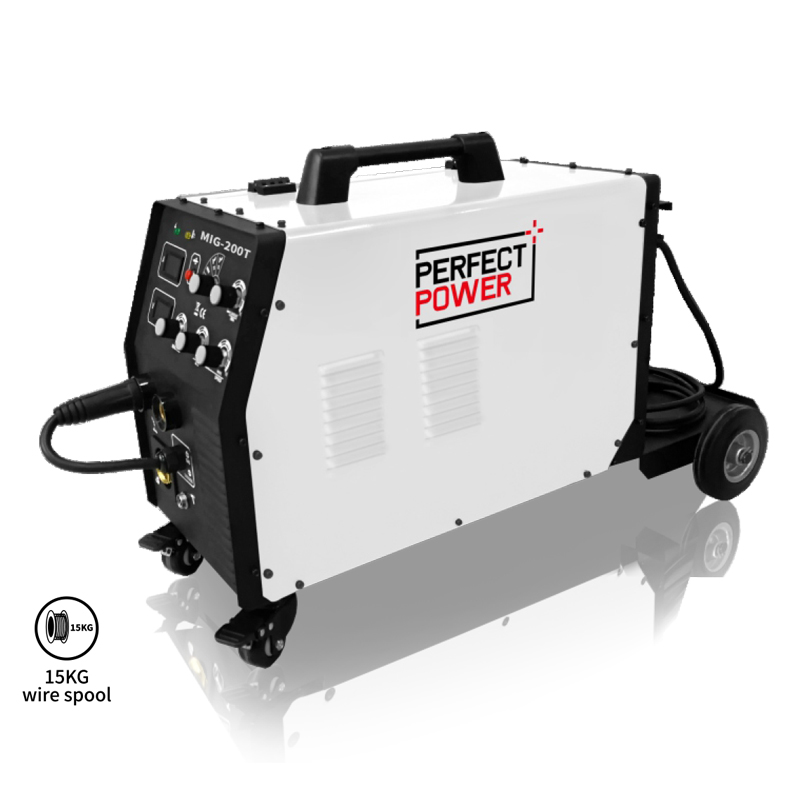

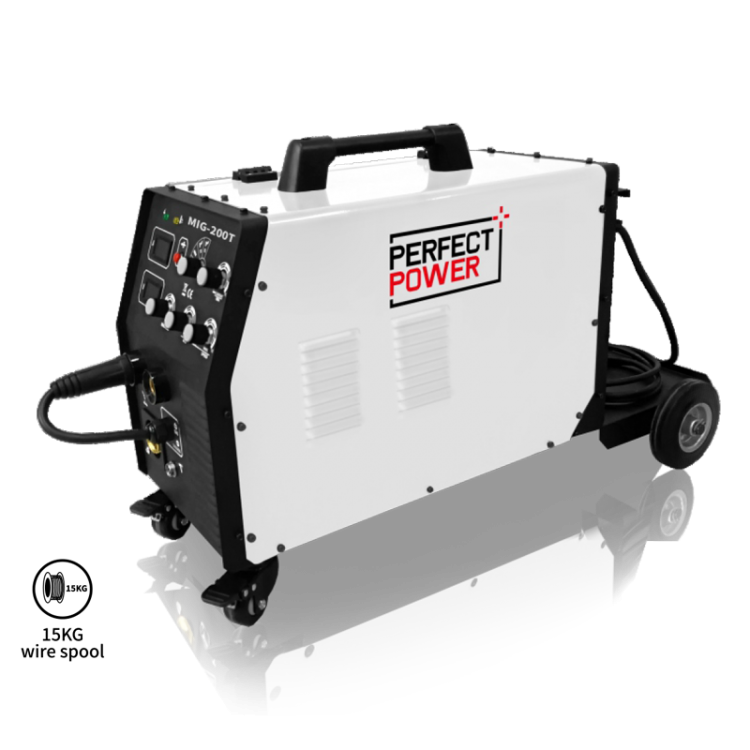

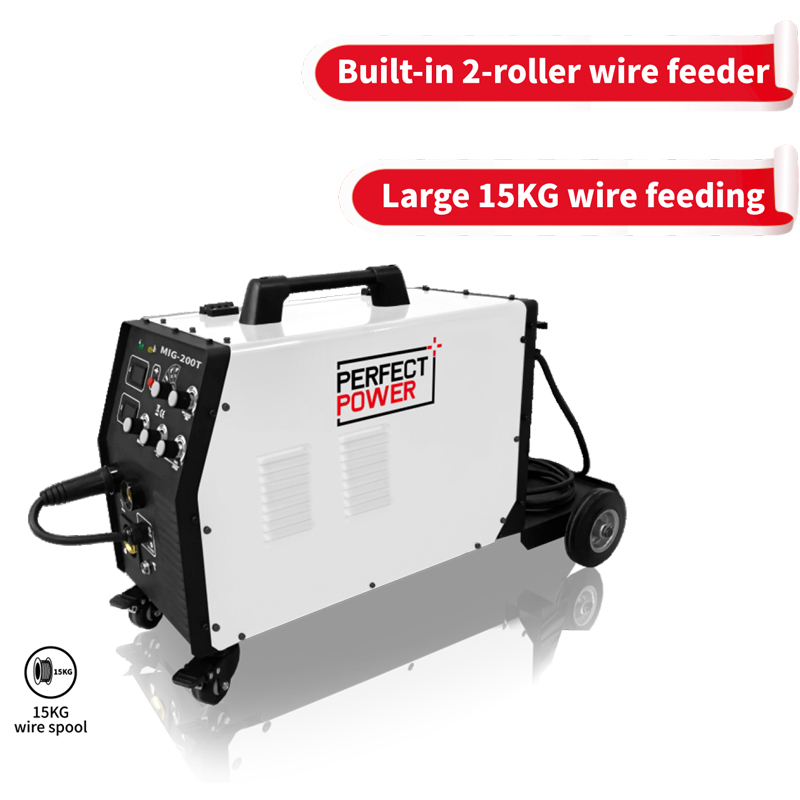

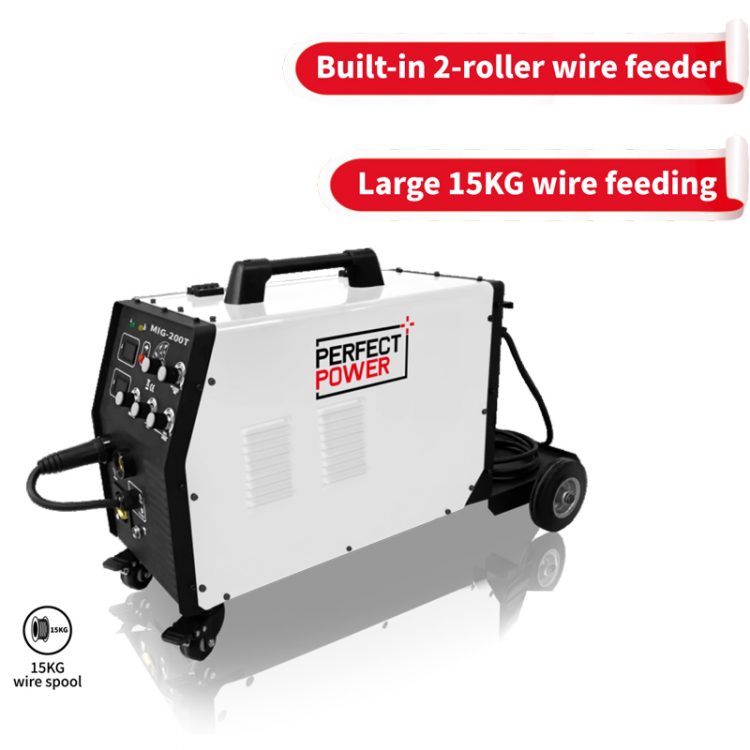

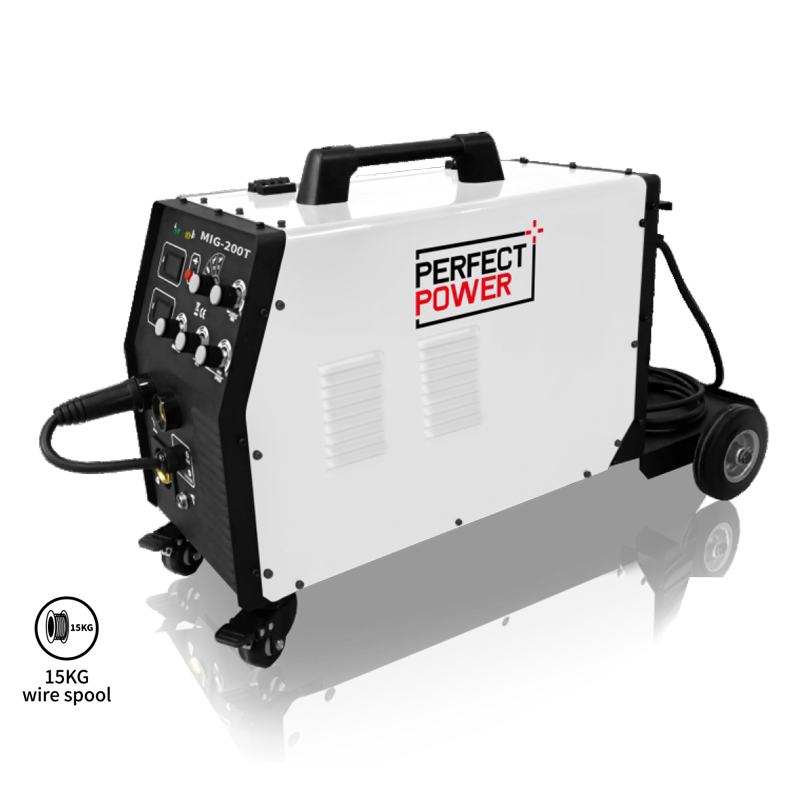

MIG-200T MIG Welder /Flux-Cored/TIG/Stick Multi-Process Welder

200 Amp MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder, 110-Volt and 220-Volt IGBT Inverter Welding, 35% Duty Cycle

MIG-200T mig welder is a multi-functional(MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder ) electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, iron, and cast iron.

In Stock

MIG-200T mig welder is a multi-functional(MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder ) electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, iron, and cast iron.

Features:

1. Full bridge IGBT converter guarantees stable output power.
2. Can achieve MIG/MAG, gasless flux cored wire welding, MMA and lift TIG.
3. Integrated construction with rack for easy moving
4. Welding parameters can be adjusted independently;
5. Stable arc output, superior welding quality.
6. Effective spatter control, improved penetration, and better welding effect.
7. Ideal for use in outdoor and indoor conditions.
8. Excellent protection circuit, with overheat and overvoltage protection function, safe and reliable, and easy to troubleshoot.

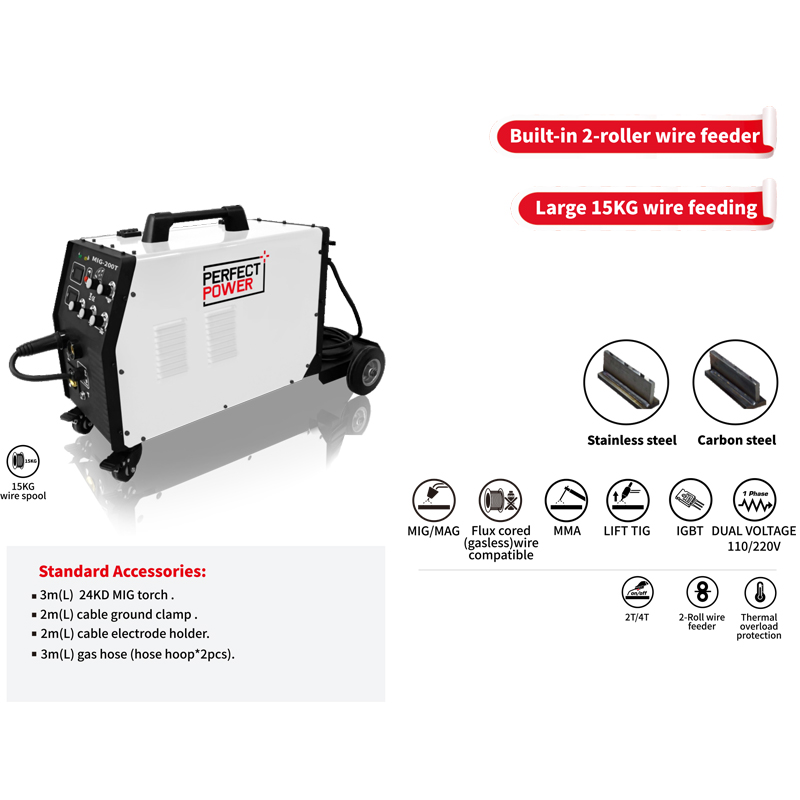

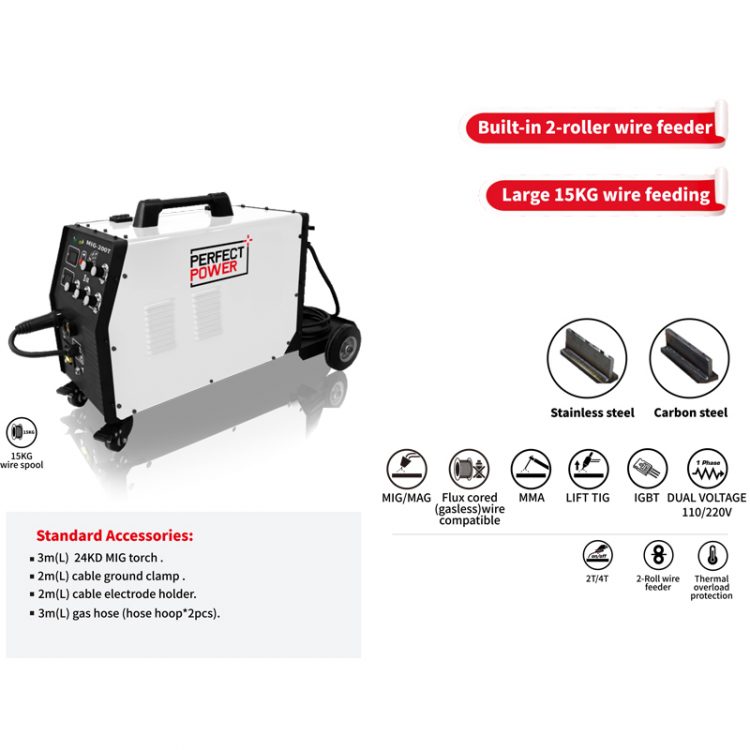

What’s Included:

3m(L) 24KD MIG torch
2m(L) cable ground clamp
2m(L) cable electrode holder
3m(L) gas hose (hose hoop*2pcs)





Power input AC(V)

1ph 110V/220V ±15%

Power input frequency(Hz)

50/60Hz

Max. Load Power Capacity(kVA)

6.5kVA

Rated current input(A)

29.5A

Rated output current(A)/voltage(V)

200/24.0(MIG,220V) 160/26.4(MMA,220V) / 140/21.0(MIG,110V) 120/24.8(MMA,110V)

Welding current range(A)

30-200(MIG,220V) 20-160(MMA,220V)/ 30-140(MIG,110V) 20-120(MMA,110V)

Open circuit voltage DC(V)

64V

Rated duty cycle(%)

35%

Wire Feeding Speed(M/min)

2-15 M/min

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

640*370*450 mm

N.M./G.W.(kg)

20kg / 25kg

Wire Melting Type

short circuit transfer

Welding Process

MIG / Flux-Cored / TIG / Stick

Wirespool Capable

1kg/5kg

Recommend Wire(mm)

0.6~1.0mm

Thickness of welding material(mm)

Steel/Carbon Steel:1.0~8.0mm
Stainless Steel:1.0~8.0mm
