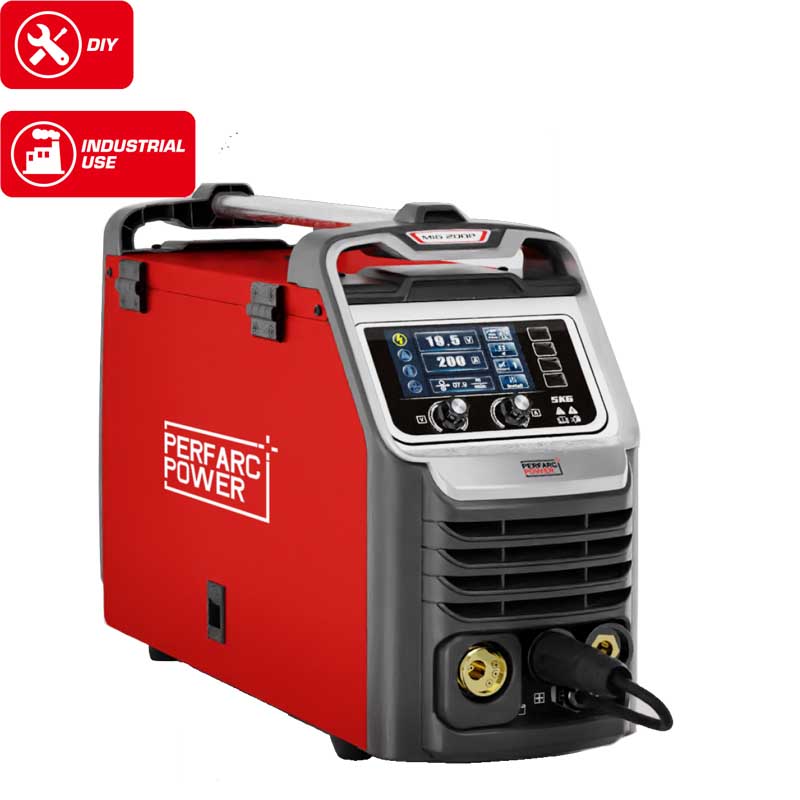

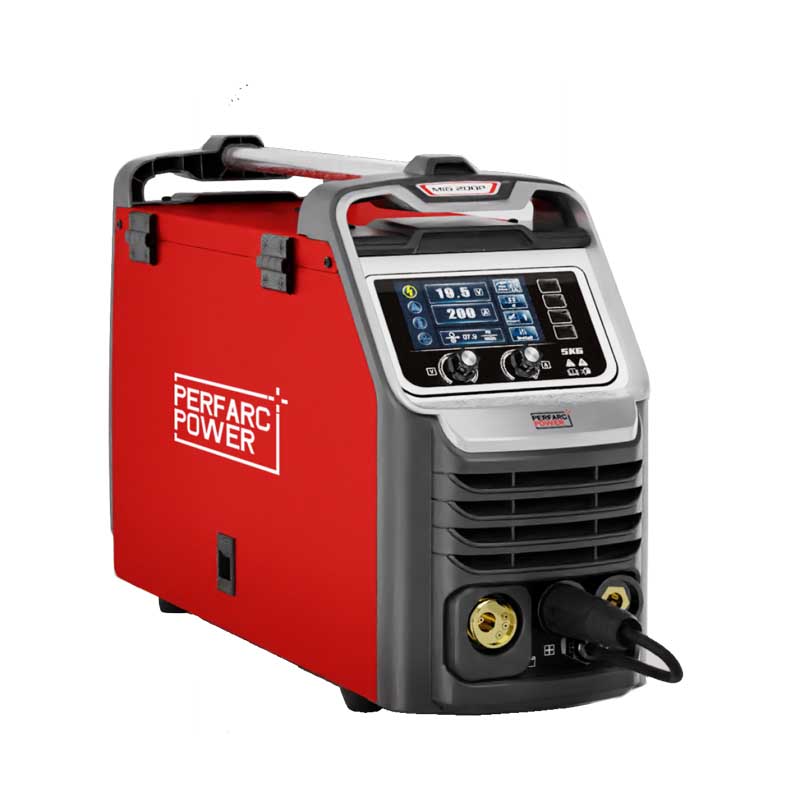

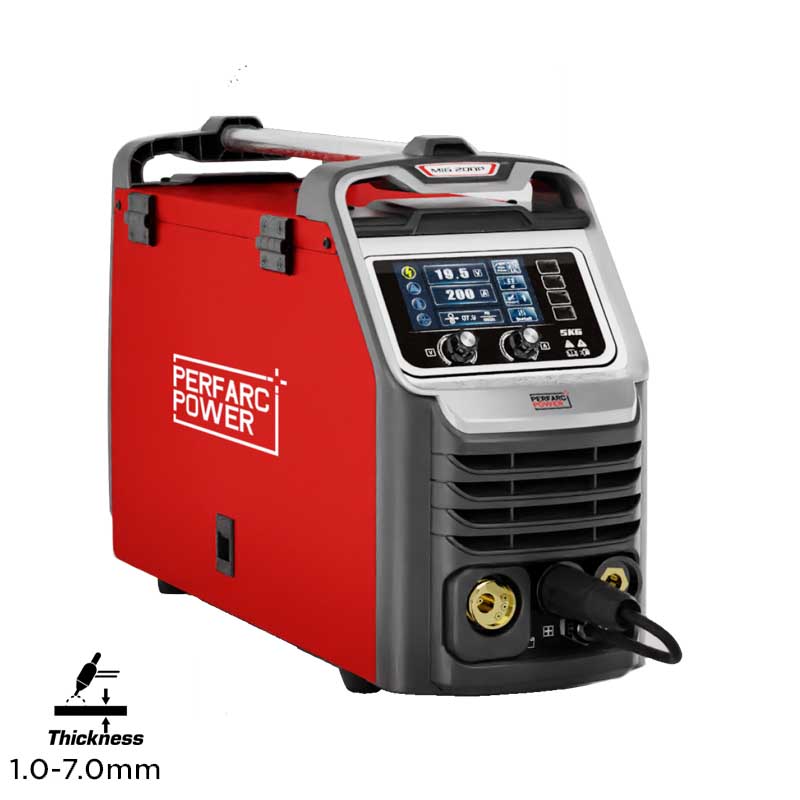

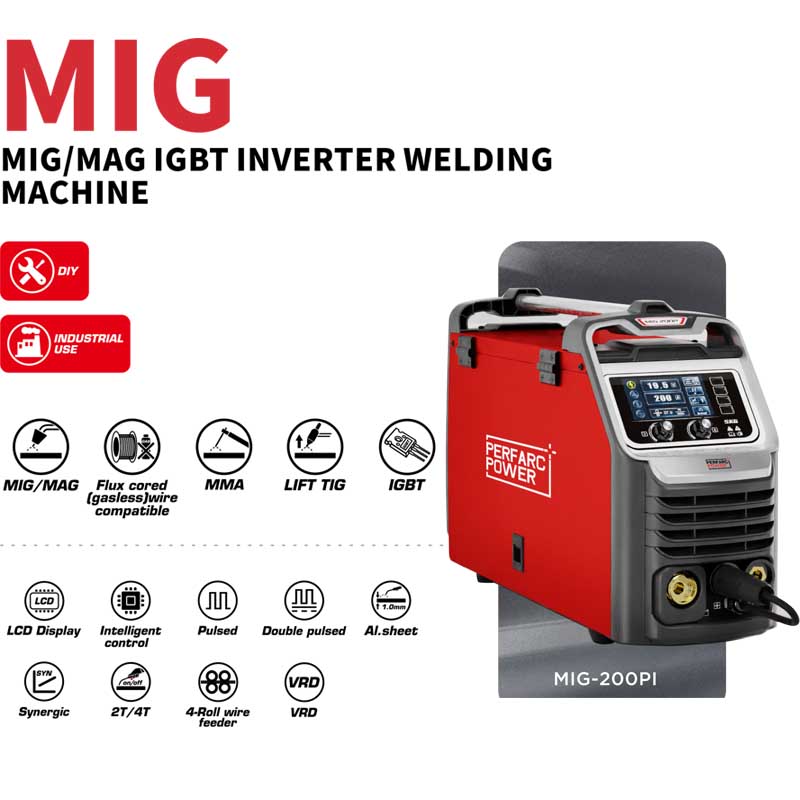

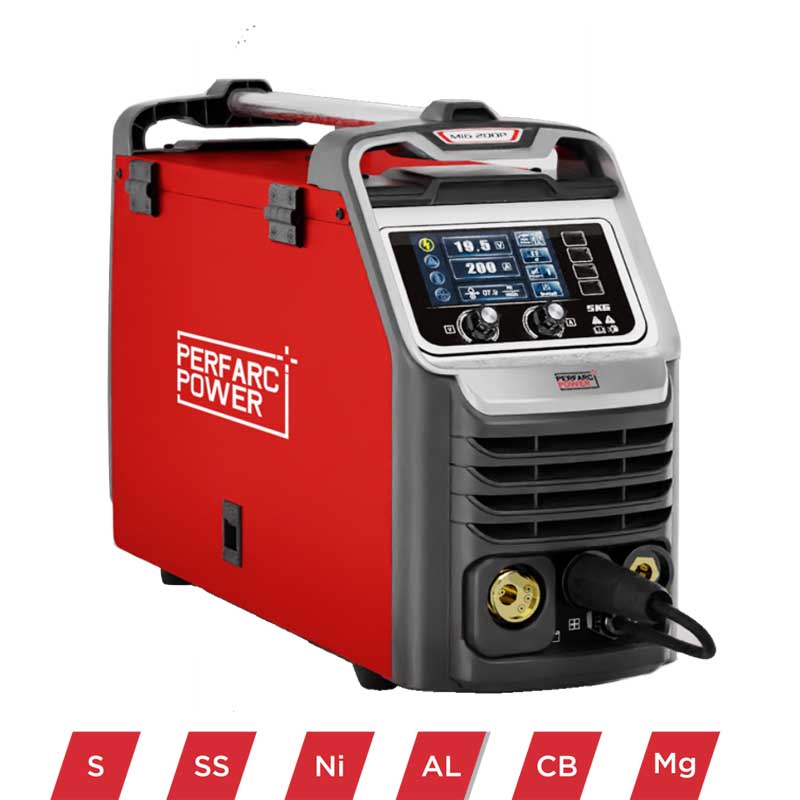

MIG-200PI MIG Welder Pulsed MIG/Double pulse MIG/Flux-Cored/TIG/Stick Multi-Process Welder

200 Amp MIG Welder, MIG Welder, Pulsed MIG Welder, Double pulse MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder, 220-Volt IGBT Inverter Welding, 60% Duty Cycle

MIG-200PI mig welder is a multi-functional(MIG Welder, Pulsed MIG Welder, Double pulse MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder ) electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, iron, and cast iron.

In Stock

MIG-200PI mig welder is a multi-functional(MIG Welder, Pulsed MIG Welder, Double pulse MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder ) electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, iron, and cast iron.

Features:

1. Multi-function welding – MIG/MAG, Pulsed MIG/MAG, Double pulse MIG/MAG, Flux cored wire welding, MMA, and lift TIG.
2. Intelligent Synergic control makes your work easy.
3. Double pulse function, spatter-free welding, especially suitable for aluminum welding.
4. Capable of both thin and moderately thick metal material welding.
5. High-speed current capability achieves stable arc and high efficiency.
6. Rich selection of aluminum welding process parameters, such as adjustable pre-flow time/post-flow time/pulse frequency.

What’s Included:

3m(L) 24KD MIG torch (graphite hose inside)
2.5m(L) cable with ground clamp
2.5m(L) cable with electrode holder
3m(L) steel wire feed spring tube
3m(L) gas hose (hose hoop*2pcs)





Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60Hz

Max. Load Power Capacity(kVA)

9.5kVA

Rated current input(A)

43.0A

Welding current range(A)

20-200A(MIG,220V) 20-200A(MMA,220V)

Open circuit voltage DC(V)

65V

Rated duty cycle(%)

60%

Wire Feeding Speed(M/min)

2-15 M/min

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

600*300*460 mm

N.M./G.W.(kg)

12.3kg / 16.5kg

Wire Melting Type

short circuit transfer

Welding Process

MIG/MAG, Pulsed MIG/MAG, Doublepulse MIG/MAG, Flux cored wire welding,MMA, lift TIG

Wirespool Capable

1kg/5kg

Recommend Wire(mm)

0.8~1.2mm

Thickness of welding material(mm)

Steel/Carbon Steel:1.0~8.0mm
Stainless Steel:1.0~8.0mm
Aluminum:1.0~8.0mm
