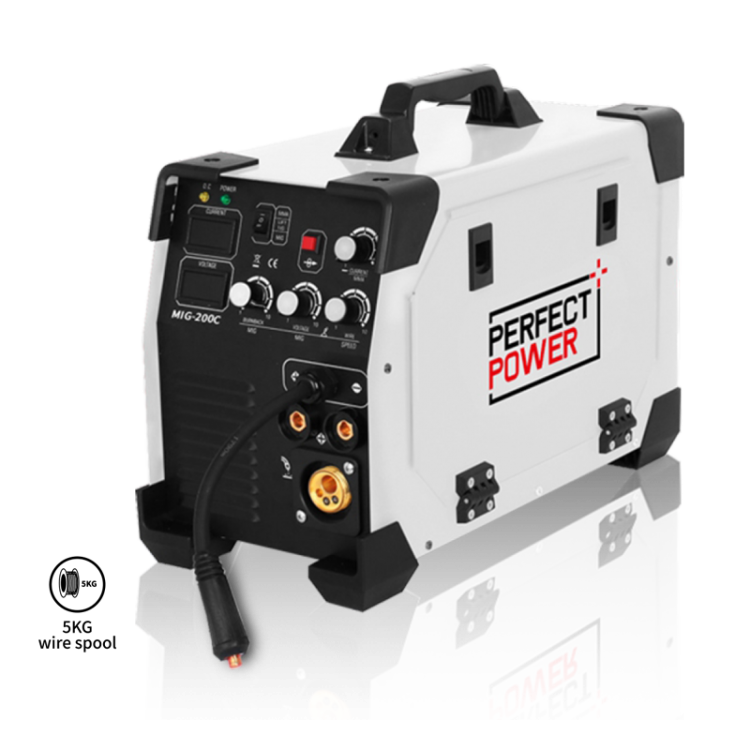

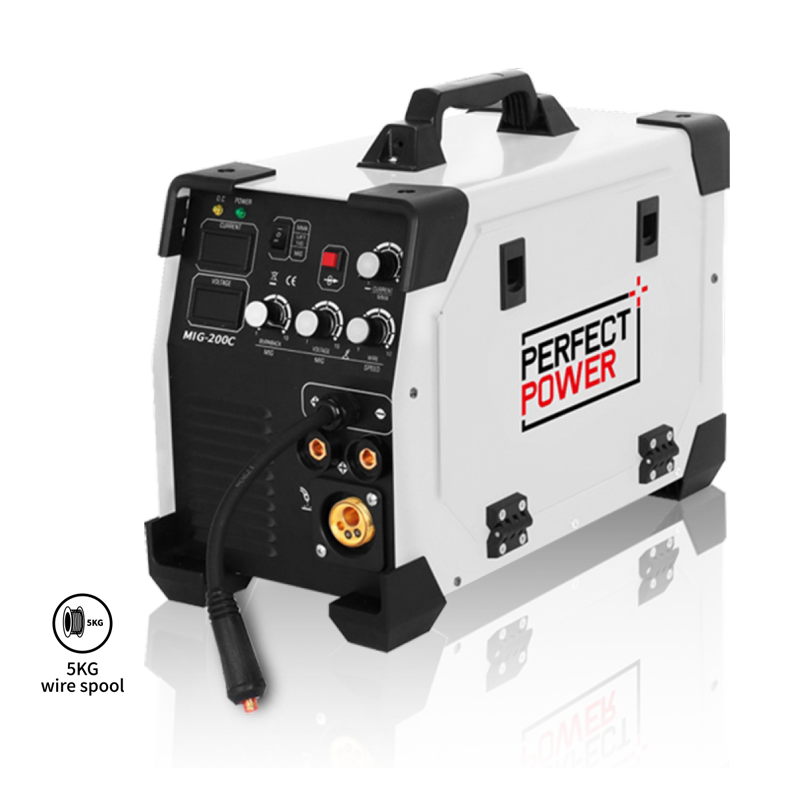

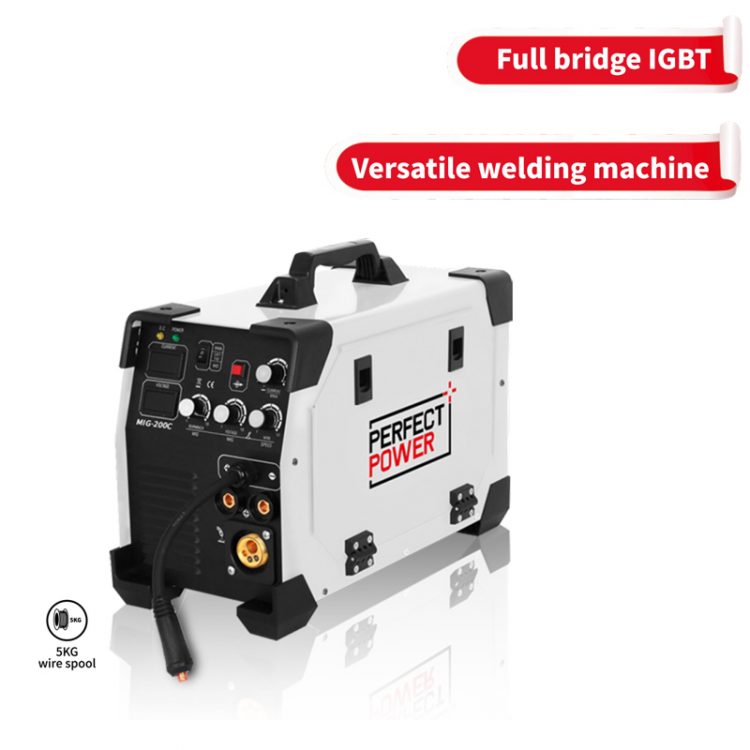

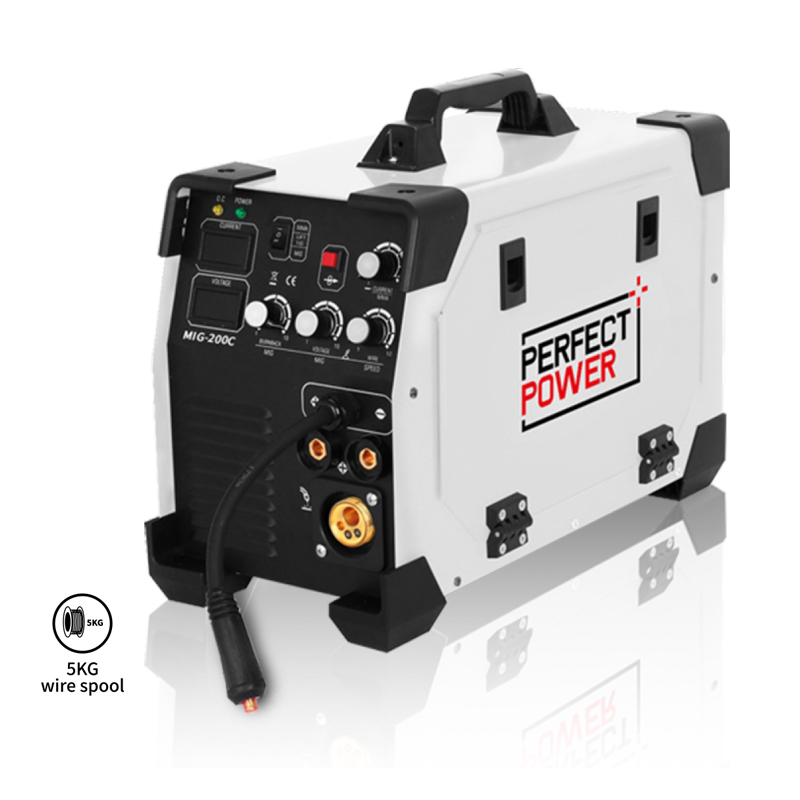

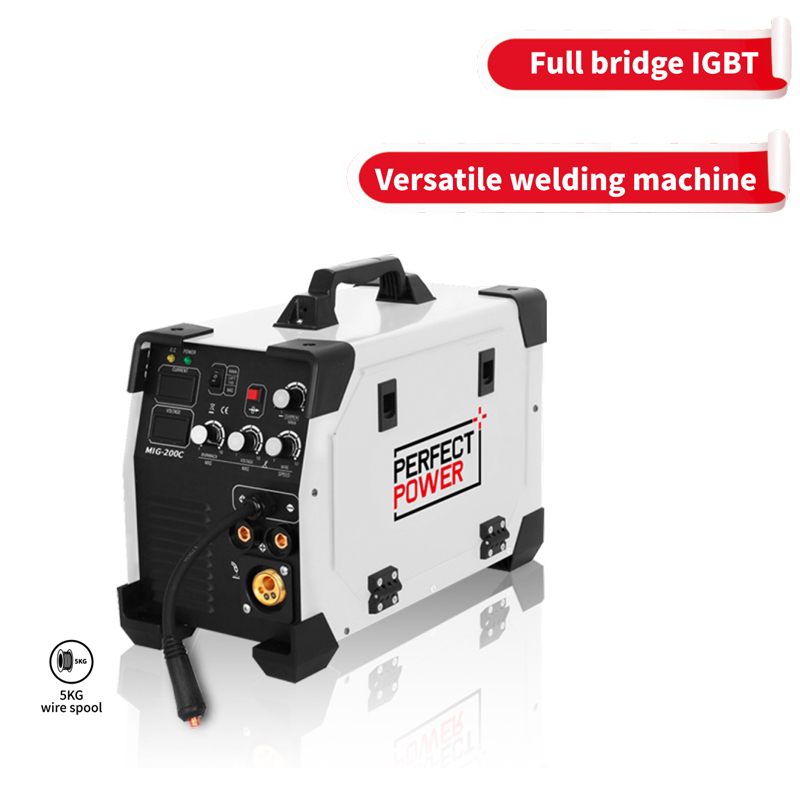

MIG-200C MIG Welder /Flux-Cored/TIG/Stick Multi-Process Welder

200 Amp MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder, 110-Volt and 200-Volt IGBT Inverter Welding, 60% Duty Cycle

MIG-200C mig welder is a multi-functional(MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder ) electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, iron, and cast iron.

In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

MIG-200C mig welder is a multi-functional(MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder ) electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, iron, and cast iron.

Features：

1. Full bridge IGBT converter guarantees stable output power.
2. Can achieve MIG/MAG, gasless flux cored wire welding, MMA and lift TIG.
3. Simple operation interface plus synergic adjustment, easy to operate.
4. Effective spatter control, improved penetration, and better welding effect.
5. ideal for use in outdoor and indoor conditions.
6. Excellent protection circuit, with overheat and overvoltage protection function, safe and reliable, and easy to trouble shooting.

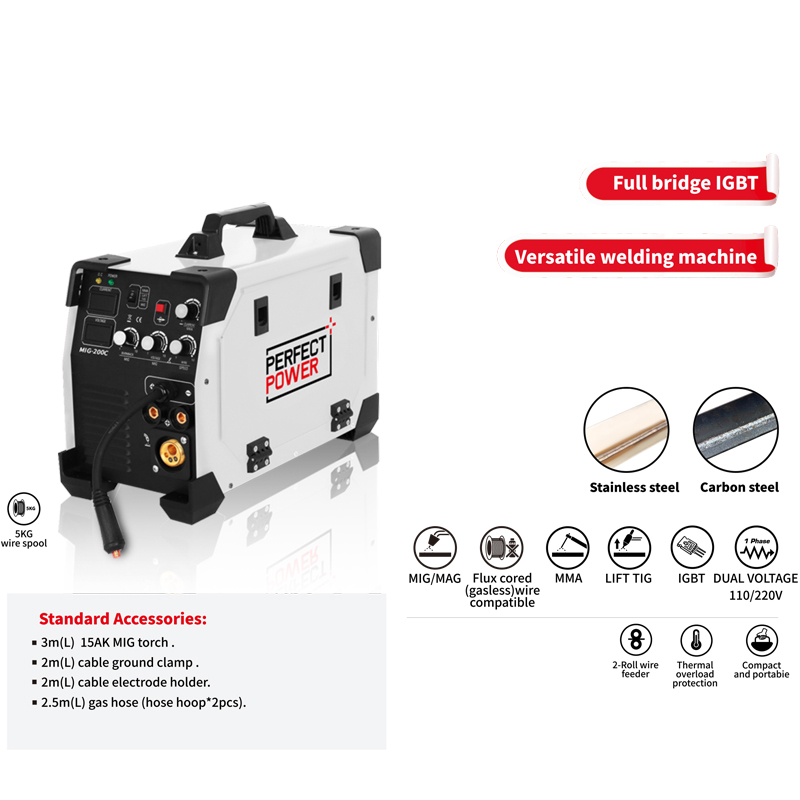

What’s Included：

2M(L) Power Cable (American plug)
3M(L) 15AK MIG Torch
2M(L) 16mm² cable with 200A ground clamp 35-50
2M(L) 16mm² cable with 300A electrode holder 35-50
American plug adaptor (big size)





Power input AC(V)

1ph 110V/220V ±15%
Power input frequency(Hz)

50/60Hz
Max. Load Power Capacity(kVA)

4.9kVA
Rated current input(A)

29A
Rated output current(A)/voltage(V)

180/23.0（MIG，220V） 160/26.4（MMA，220V） / 140/21.0（MIG，110V） 120/24.8（MMA，110V）
Welding current range(A)

30-180（MIG，220V） 30-160（MMA，220V）/ 30-140（MIG，110V） 20-120（MMA，110V
Open circuit voltage DC(V)

62V
Rated duty cycle(%)

60%
Wire Feeding Speed(M/min)

2-15 M/min
IP grade

IP21S
Insulation grade

F
Dimensions(mm)

520*300*375 mm
N.M./G.W.(kg)

11.0kg / 13.5kg
Wire Melting Type

short circuit transfer
Welding Process

MIG / Flux-Cored / TIG / Stick
Wirespool Capable

1kg/5kg
Recommend Wire(mm)

0.6~1.0mm
Thickness of welding material（mm）

Steel/Carbon Steel:1.0~8.0mm
Stainless Steel:1.0~8.0mm
