1. Multi-function welding – MIG/MAG, MMA, and FLUX CORED Wire welding.
2. Capable for 15kg and 5kg wire spool.
3. Professional MMA welding process with VRD function.
4. 2T/4T function.
5. Stable arc with less spatter.
6. Ideal for use in outdoor and indoor conditions.

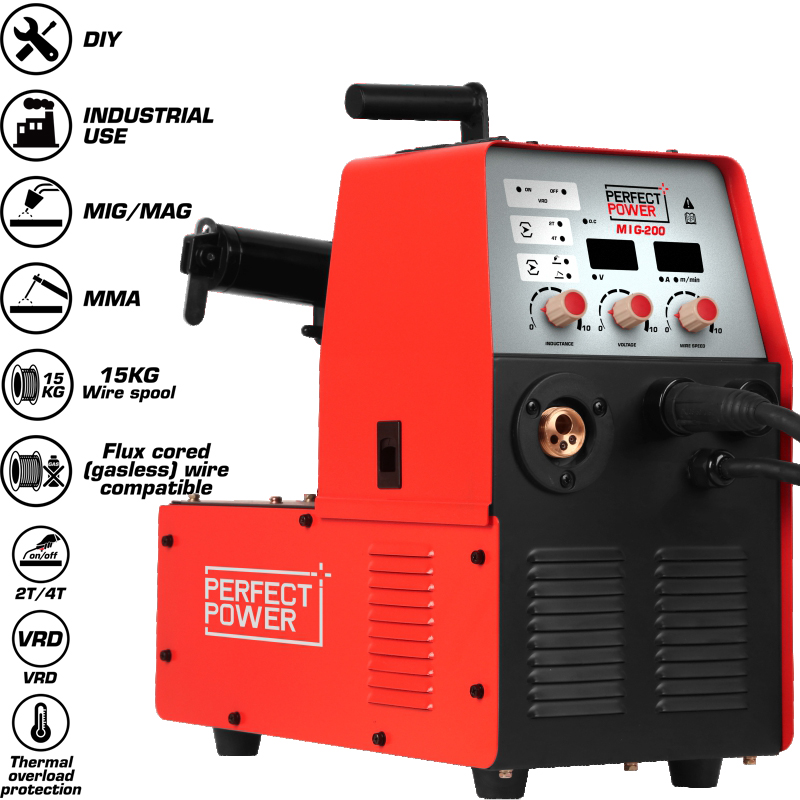

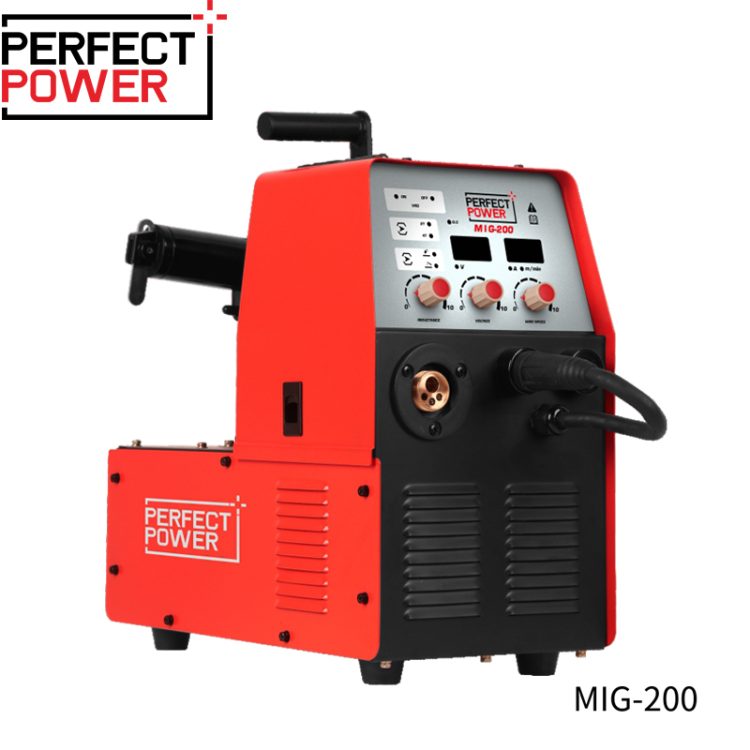

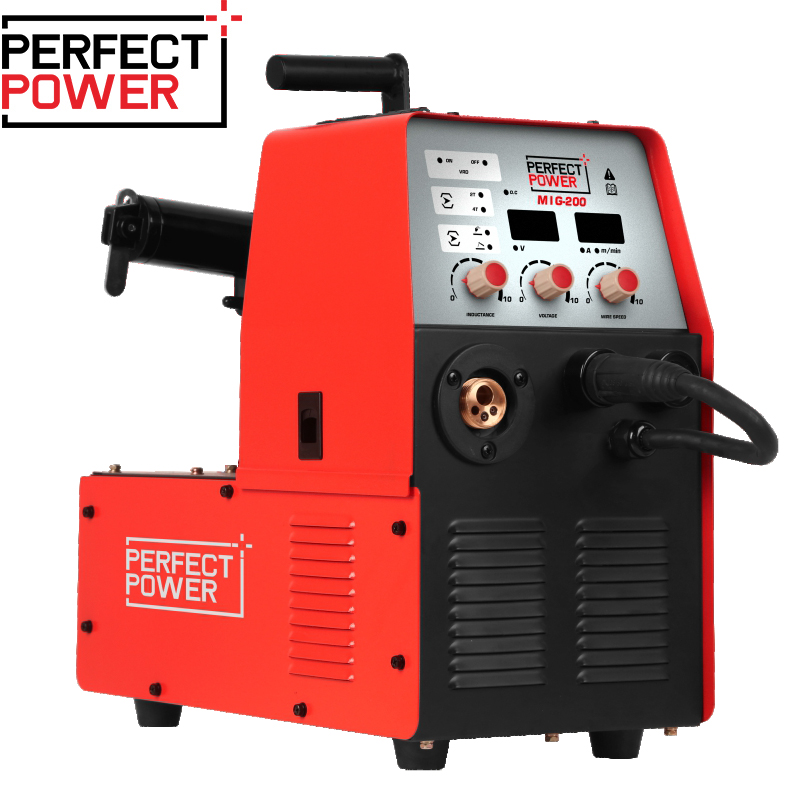

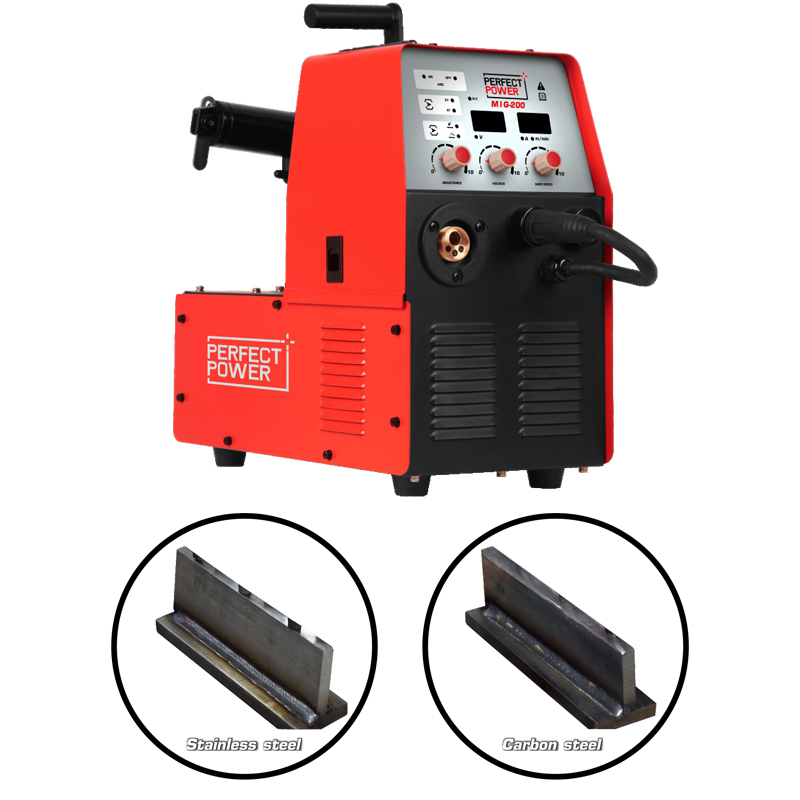

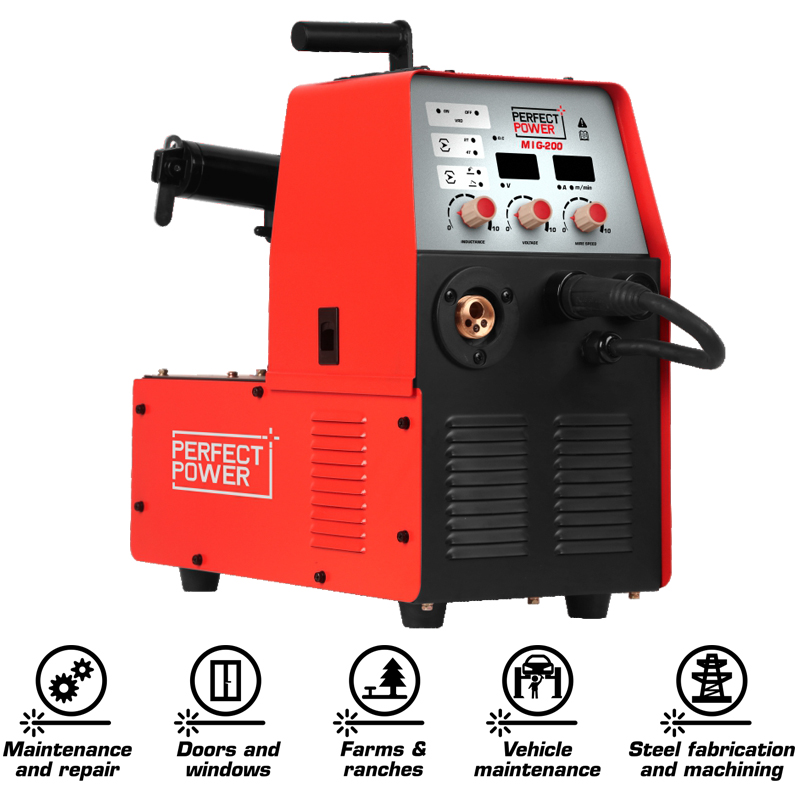

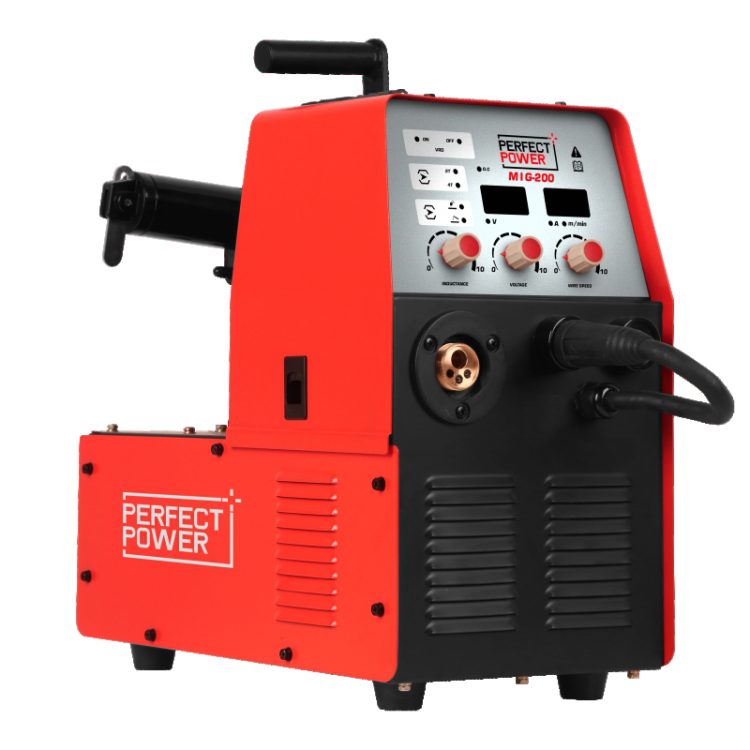

2T/4T function adjustable Pre-Flow and Post-FlowExcellent performance for the priceMulti-process welder| Model | MIG-200 |
|---|---|
| Power input AC(V) | 1ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 9.6 |
| Rated current input(A) | 43.6 |
| Rated output current(A)/voltage(V) | 200/24.0(MIG) 200/28.0(MMA) |
| Welding current range(A) | 40-200(MIG) 30-200(MMA) |
| Open circuit voltage DC(V) | 56 |
| Rated duty cycle(%) | 60 |
| Wire Feeding Speed(M/min) | 2-18 |
| IP grade | IP21 |
| Insulation grade | H |
| Dimensions(mm) | 550x310x535 |
| Weight (KG) | 21.3 |
| Wire Melting Type | short circuit transfer |
MIG-200 MIG Welder Video
