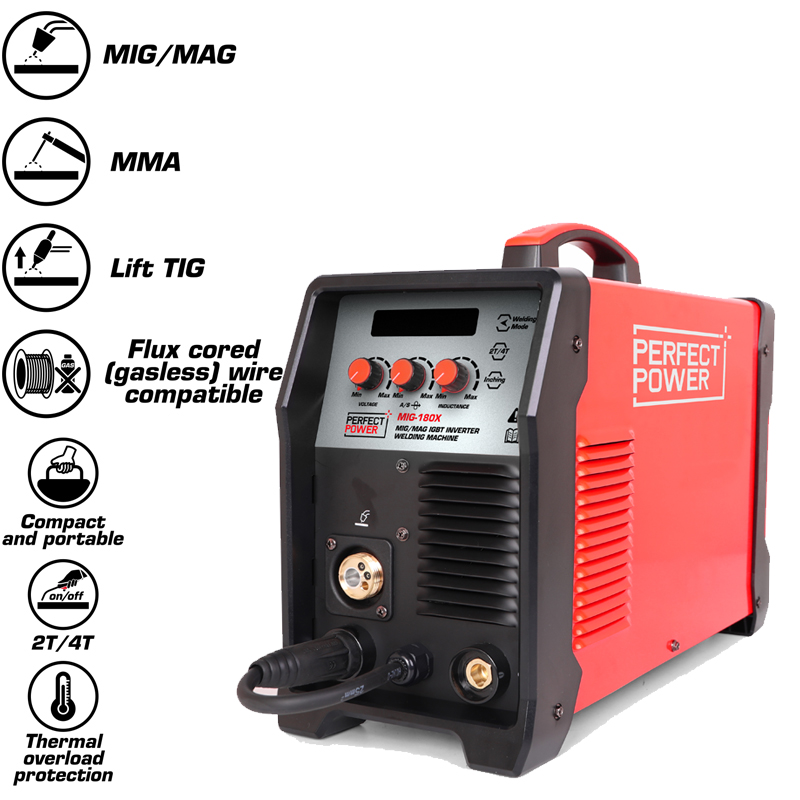

1. Multi-function welding – MIG/MAG, LIFT TIG / MMA and FLUX CORED
2. Wire welding.
3. Capable for1kg and 5kg wire spool.
4. 2T/4T function.
5. Stable arc with less spatter.
6. Ideal for use in outdoor and indoor conditions.
| Model | MIG-200X |
|---|---|
| Power input AC(V) | 1pH 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 6.9 |
| Rated current input(A) | 30.9 |
| Rated output current(A)/voltage(V) | 160/26.4(MMA) 180/17.2(TIG) 180/26.0(MIG) |
| Welding current range(A) | 20～160(MMA) 20～180(TIG) 30～180(MIG) |
| Open circuit voltage DC(V) | 64 |
| Rated duty cycle(%) | 20 |
| Wire Feeding Speed(M/min) | 1.5～16 |
| IP grade | IP21S |
| Insulation grade | H |
| Dimensions(mm) | 610*330*440 |
| Weight (KG) | 10.8 |
| Wire Melting Type | short circuit transfer |
