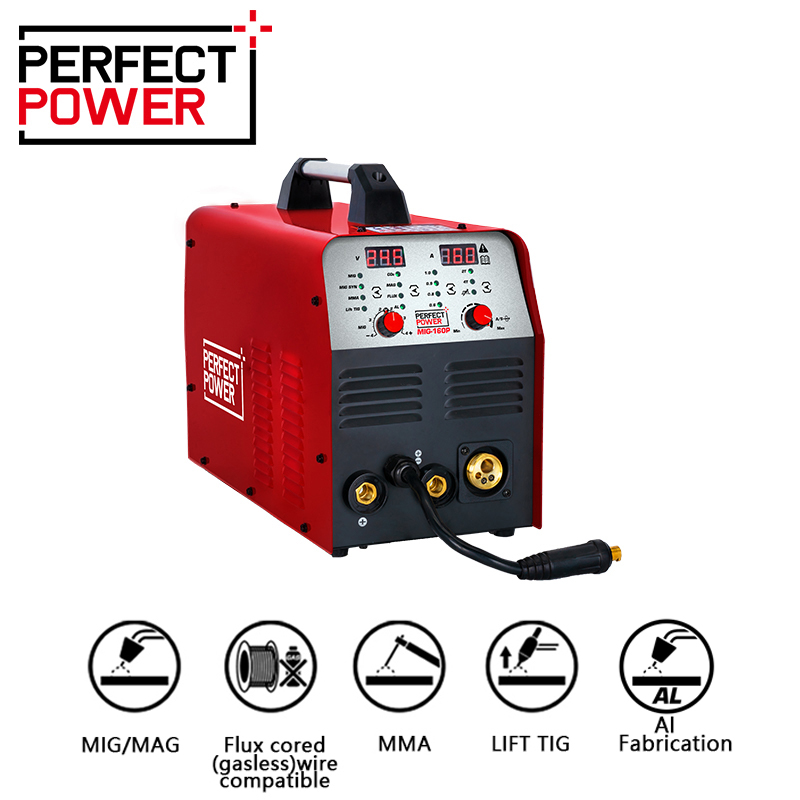

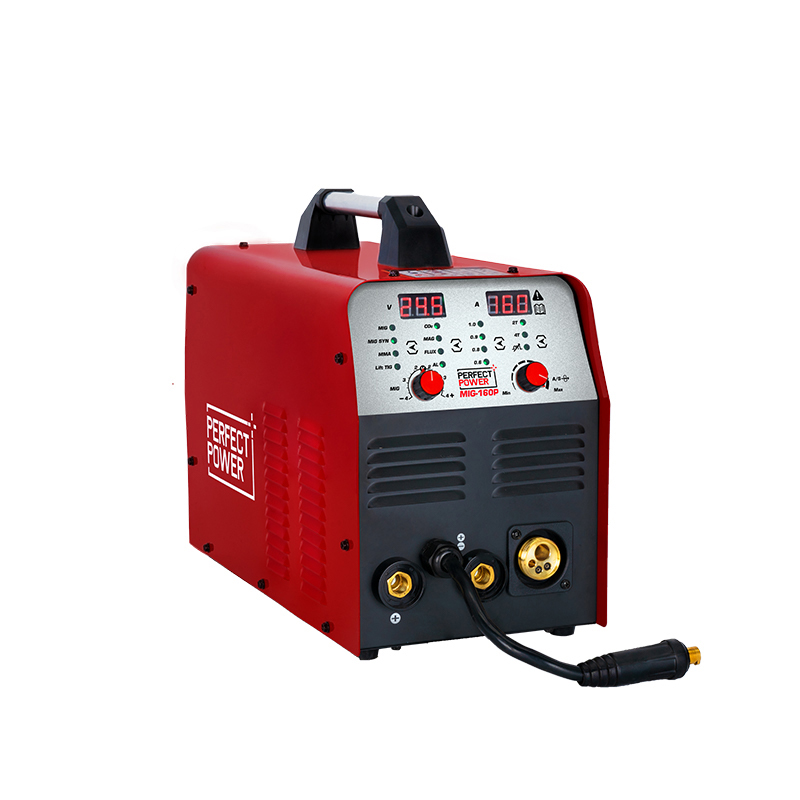

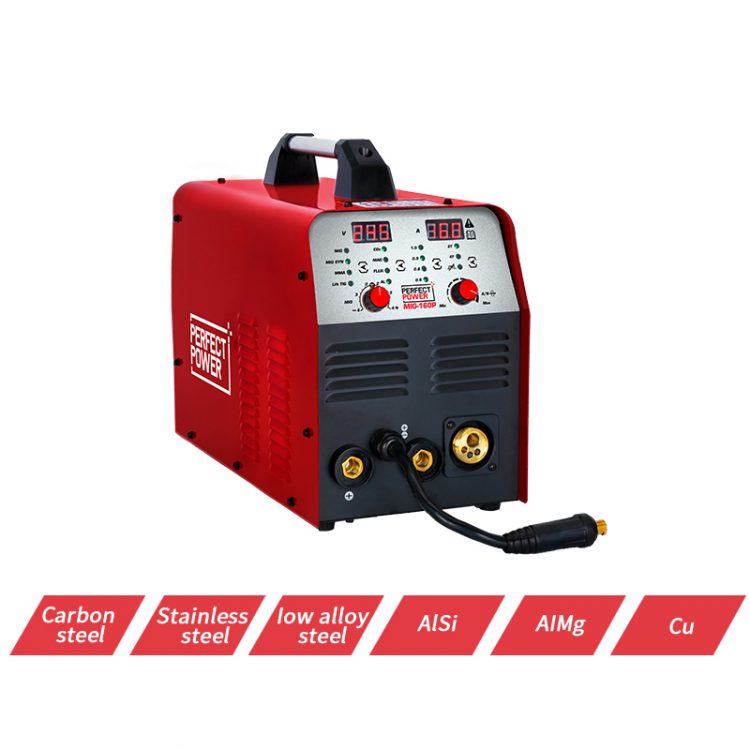

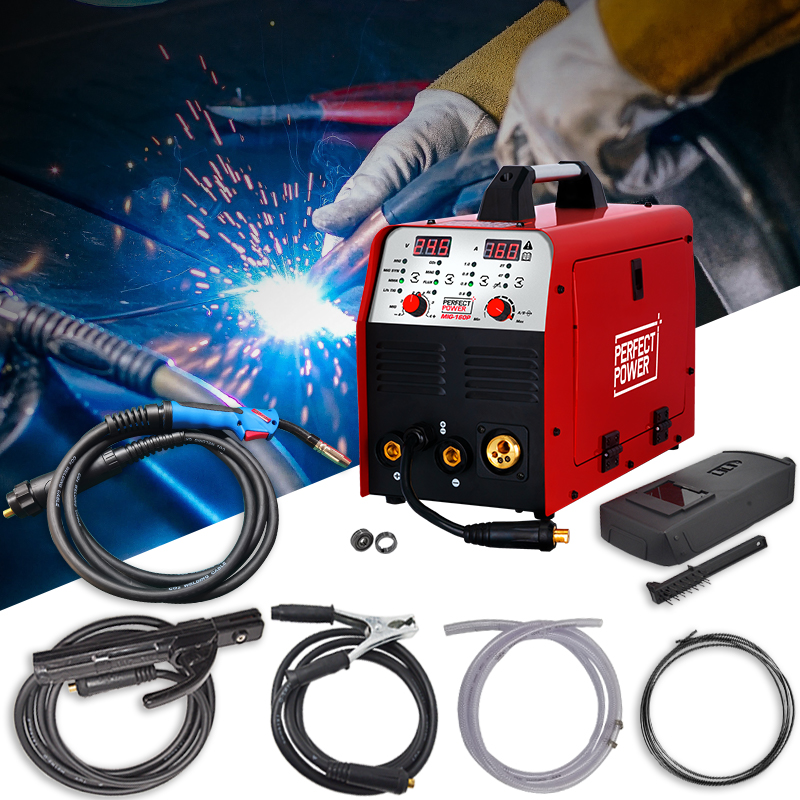

MIG-160P MIG Welder

MIG-160P Multi-Process MIG Welder, designed to excel in a range of welding techniques including MIG/MAG, PULSED MIG, DOUBLE PULSED MIG, LIFT TIG, MMA, and FLUX CORED Wire welding.

In Stock

MIG-160P Multi-Process MIG Welder, designed to excel in a range of welding techniques including MIG/MAG, PULSED MIG, DOUBLE PULSED MIG, LIFT TIG, MMA, and FLUX CORED Wire welding.

➠【  Master Multifunctional Welding 】 Experience the ultimate welding flexibility with the MIG-160P. From MIG/MAG to PULSED MIG, DOUBLE PULSED MIG, LIFT TIG, MMA, and FLUX CORED Wire welding, this welder is your all-in-one solution for a diverse range of welding applications

➠【  Precision PULSED MIG and DOUBLE PULSED MIG 】 Take your aluminium welding to the next level with digital controlled PULSED MIG and DOUBLE PULSED MIG capabilities (MIG-200DP). Achieve precision and excellence in every weld, even when working with challenging materials.

➠【  Capable of Handling 1KG/5KG Wire Spools 】 Whether your project is big or small, the MIG-160P can handle it. With the ability to work with 1KG or 5KG wire spools, you have the flexibility to choose the perfect fit for your welding tasks.

➠【  2T/4T Function for Optimal Operation 】 Take control of your welding experience with the 2T/4T function. Customize your welding preferences for maximum efficiency and ease of operation.

➠【  Stable Arc with Minimal Spatter 】 Experience steady and precise welding with a stable arc and minimal spatter. The MIG-160P ensures superior welding performance, delivering clean and accurate results every time.

➠【  Ideal for Both Outdoor and Indoor Use 】 Designed to excel in any environment, the MIG-160P is your reliable companion for both outdoor and indoor welding projects. No matter the conditions, expect exceptional welding quality.

Unleash your welding potential with the MIG-160P Multi-Process MIG Welder. Its multifunctional capabilities, precision features, and versatility in various welding techniques make it the ultimate choice for professionals and enthusiasts alike. Invest in the MIG-160P now and redefine what’s possible in the world of welding!

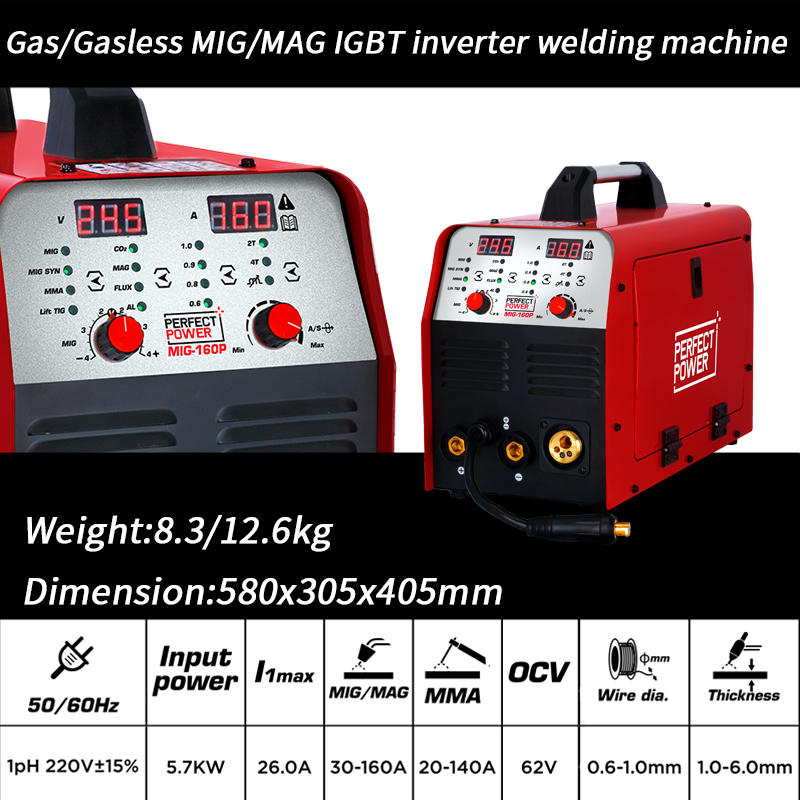

Model

MIG-160P

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

5.7

Rated current input(A)

26

Rated output current(A)/voltage(V)

160/22.0(MIG), 140/25.6(MMA)

Welding current range(A)

30-160(MIG), 20-140(MMA)

Open circuit voltage DC(V)

62

Rated duty cycle(%)

60%

Wire Feeding Speed(M/min)

2-15

IP grade

IP21

Insulation grade

H

N.M./G.W.(KG)

8.3/12.55

Wire Melting Type

short circuit transfer
