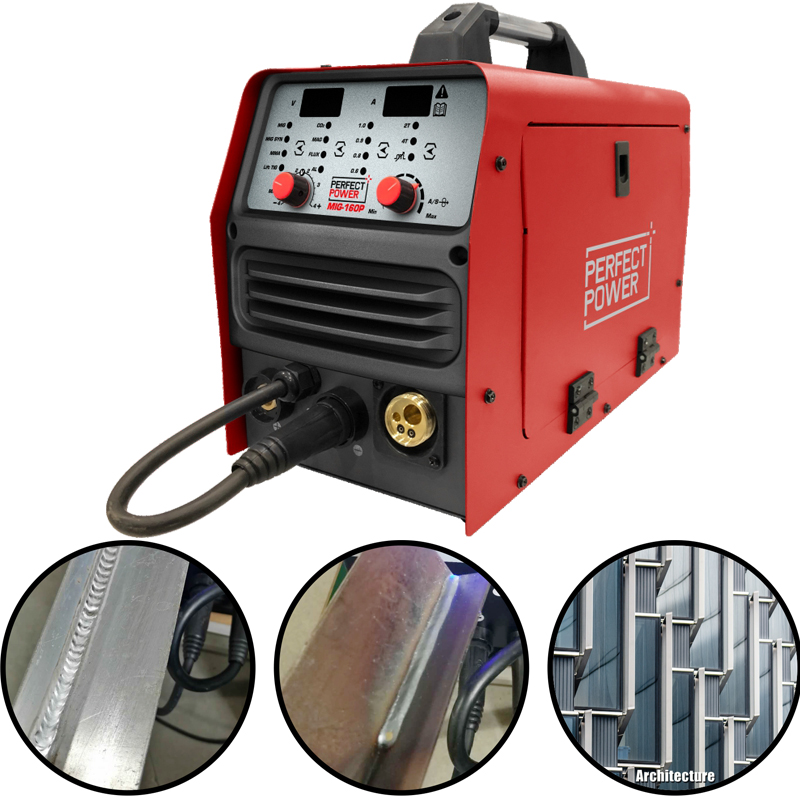

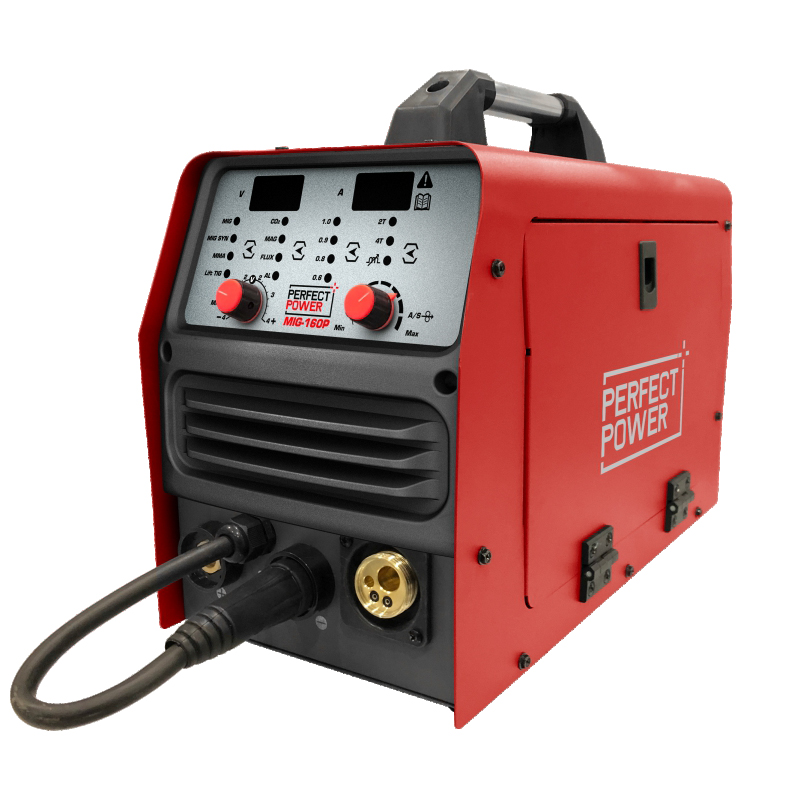

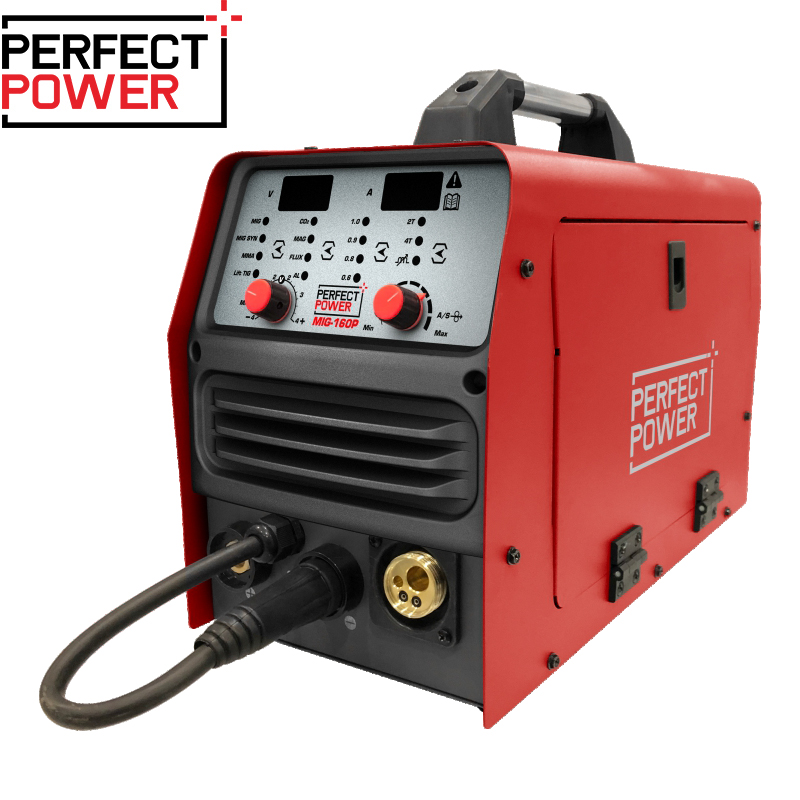

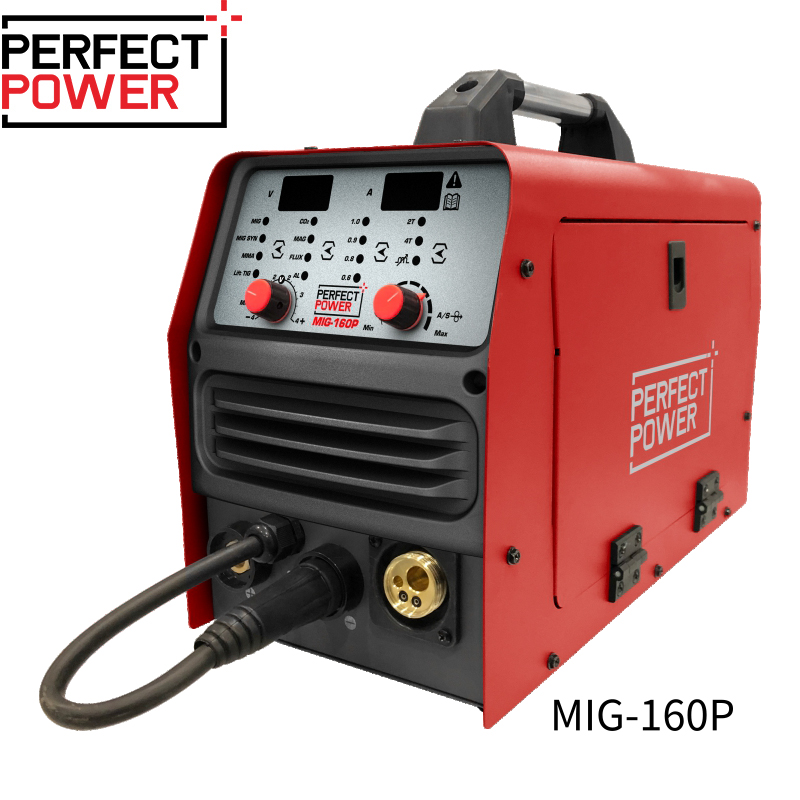

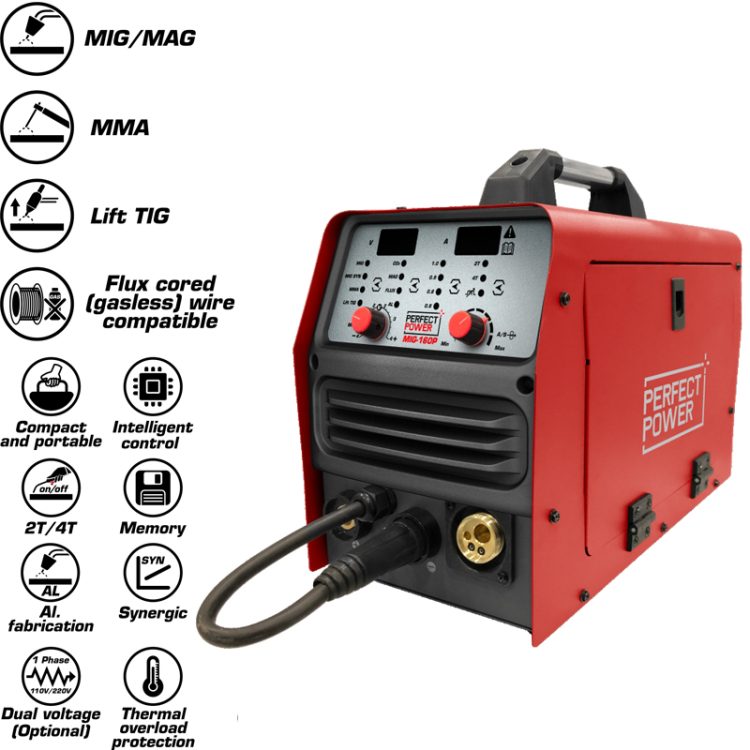

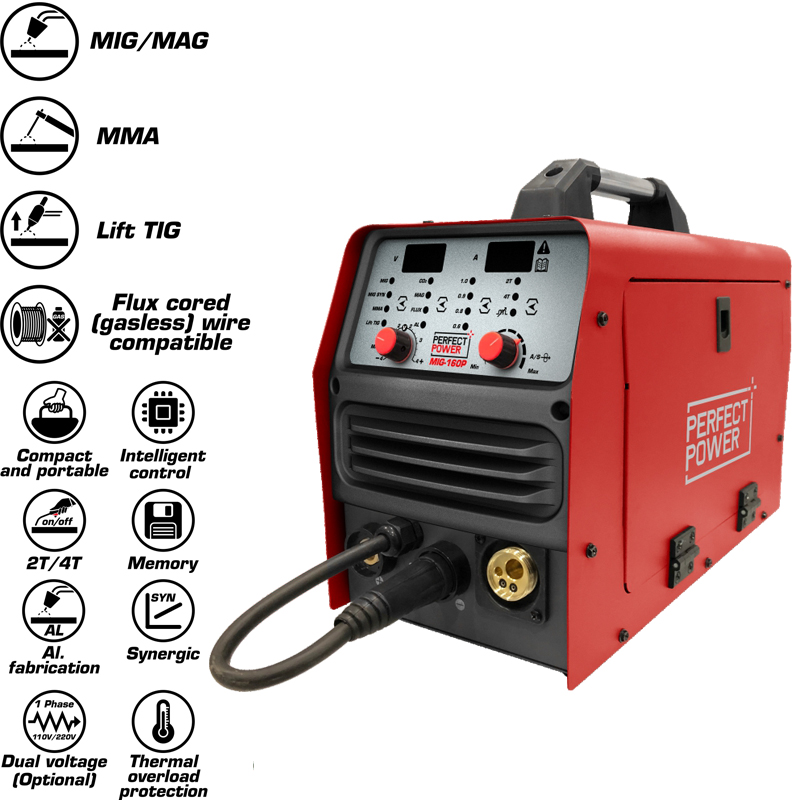

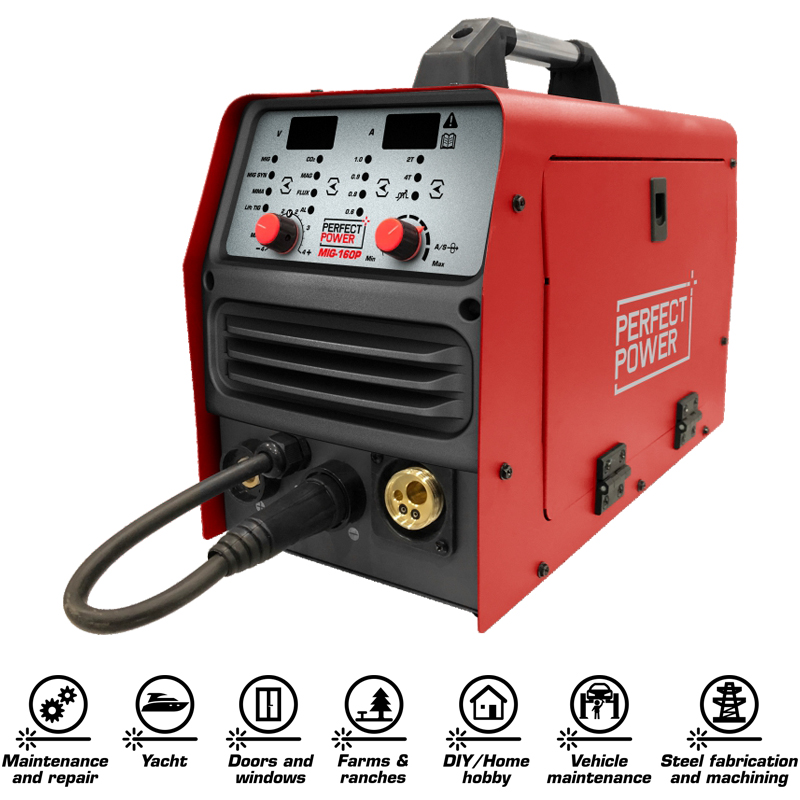

MIG-160P Gas MIG/MAG/Gasless Flux Core MIG IGBT Inverter Welding Machine

In Stock
Welder Custom LabelDouble-pulse MIG and Flux-cored welding
Welder Custom LabelEasy and safe to use
Welder Custom LabelExcellent for beginners

1. Multi-function welding – MIG/MAG, PULSED MIG, DOUBLE PULSED MIG, LIFT TIG, MMA, FLUX CORED Wire welding.
2. Digital controlled PULSED MIG and DOUBLE PULSED MIG for Aluminium welding(MIG-200DP).
3. 1KG/5KG wire spool capable.
4. 2T/4T function.
5. Stable arc with less spatter.
6. Ideal for use in outdoor and indoor conditions.

Model

MIG-160P

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

5.7

Rated current input(A)

26

Rated output current(A)/voltage(V)

160/22.0(MIG) 140/25.6(MMA)

Welding current range(A)

30-160(MIG) 20-140(MMA)

Open circuit voltage DC(V)

62

Rated duty cycle(%)

60

Wire Feeding Speed(M/min)

2-15

IP grade

IP21

Insulation grade

H

Dimensions(mm)

560*270*405

Weight (KG)

14.5

Wire Melting Type

short circuit transfer
