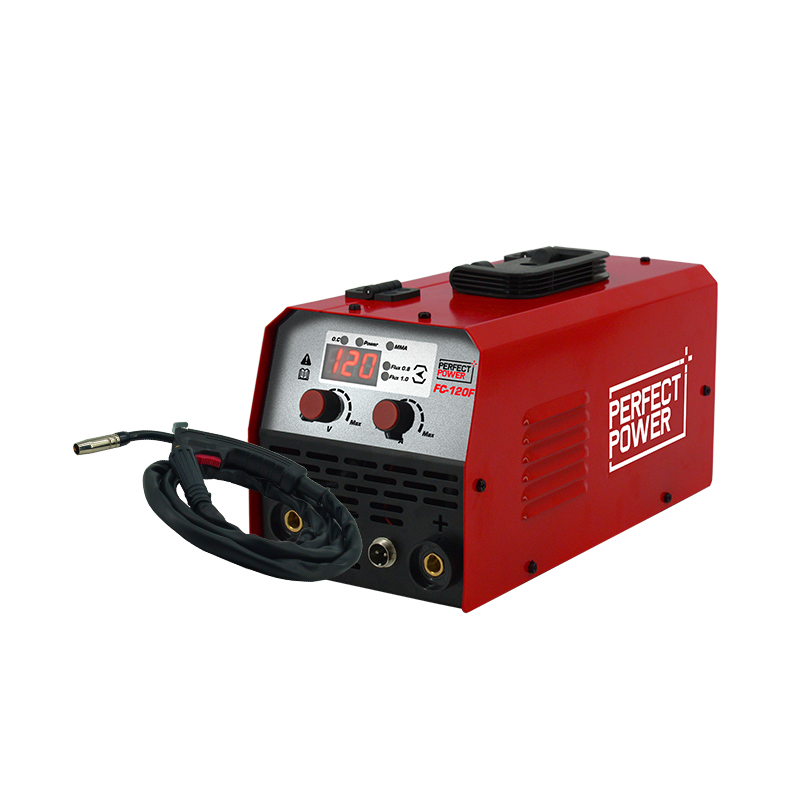

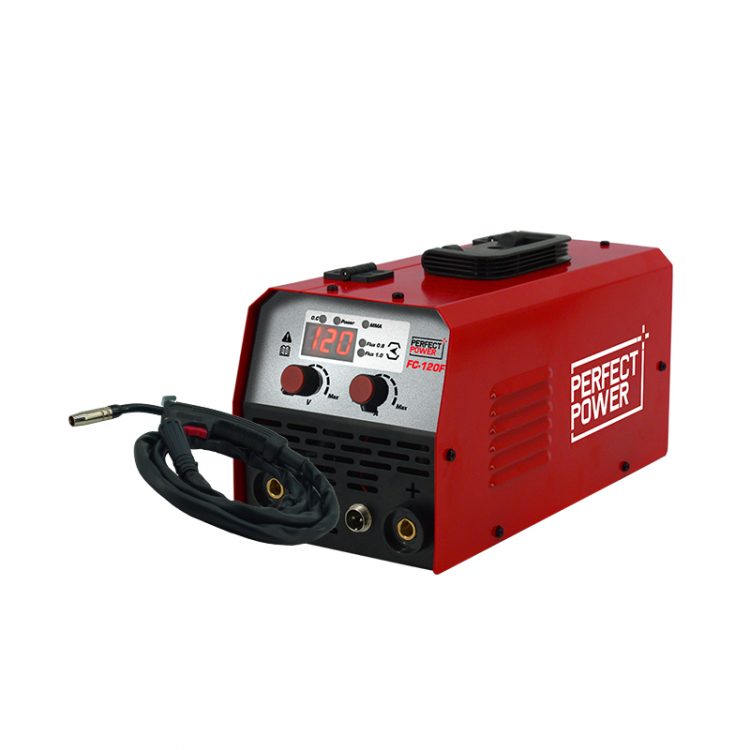

FC-120F Flux Core Welder 120Amp 220V Gasless MIG Welding Machine

Get the best performance and value on DIY light metal fab by choosing a Perfect Power welder. The mig welder FC-120F flux core wire welder is the new-and-improved version of our popular MIG 120 welder that’s perfect for sheet metal or even for beginners who want to start with light metal fab. The R&D guys have updated it to the latest IGBT inverter technology. This allows you do to the same high-quality welding on thin mild steel and stainless steel with a welder that weighs less than 16 pounds. That makes it easy to bring your welder to a project.

In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Get the best performance and value on DIY light metal fab by choosing a Perfect Power welder. The mig welder FC-120F flux core wire welder is the new-and-improved version of our popular MIG 120 welder that’s perfect for sheet metal or even for beginners who want to start with light metal fab. The R&D guys have updated it to the latest IGBT inverter technology. This allows you do to the same high-quality welding on thin mild steel and stainless steel with a welder that weighs less than 16 pounds. That makes it easy to bring your welder to a project.

1. Multi-function: Gasless flux-cored wire welding, MMA, and lift TIG.

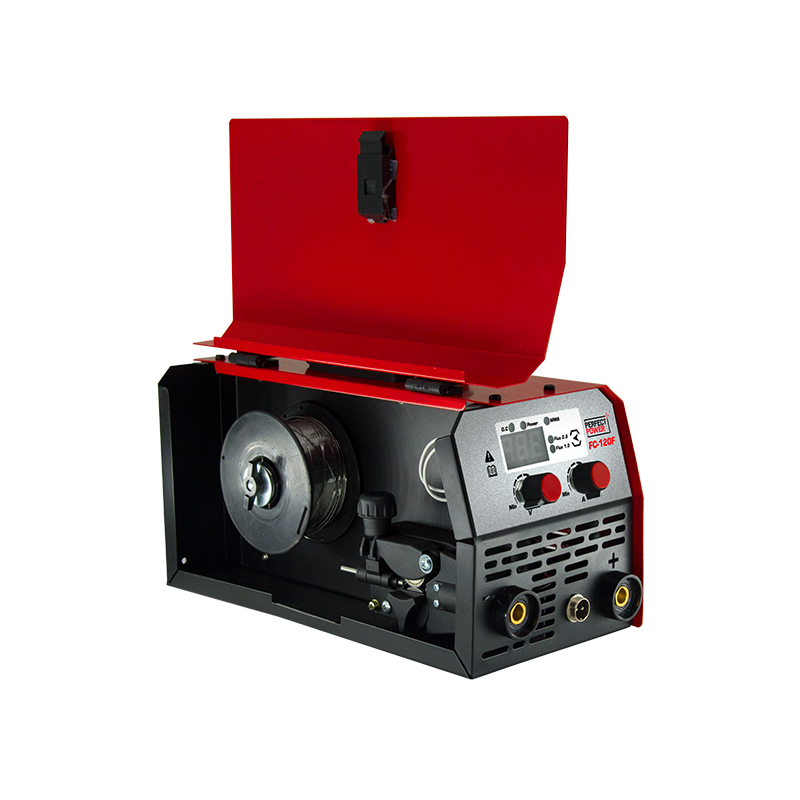

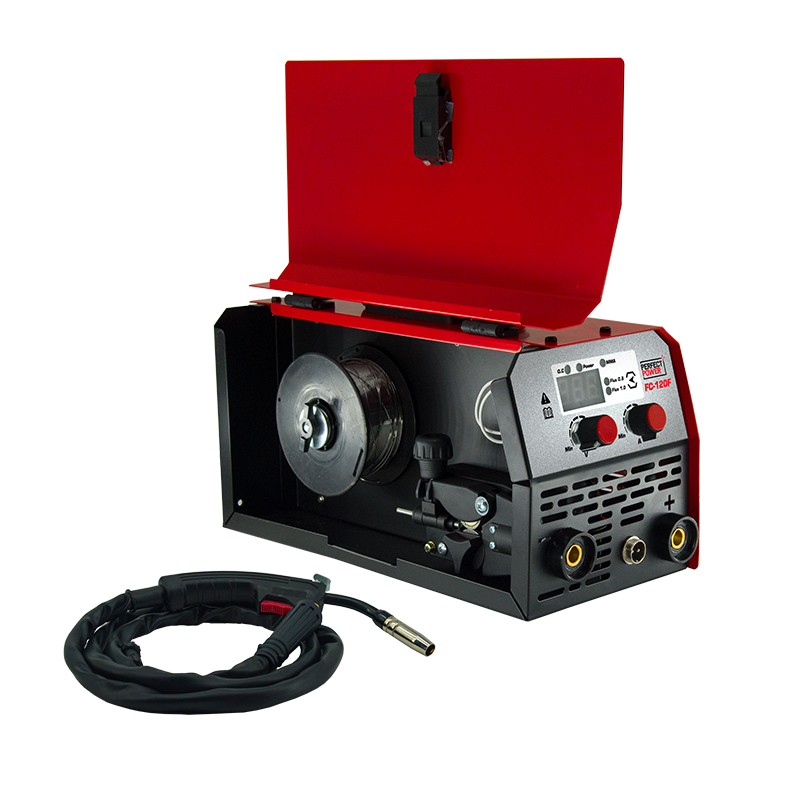

2. Suitable for 1KG wire spool.
3. Compact design, lightweight, but robust.
4. User-friendly and cost-effective.
5. Overload protection.
You can just plug and then weld with a complete accessory set: MIG torch, earth cable, welding mask, and a steel brush.

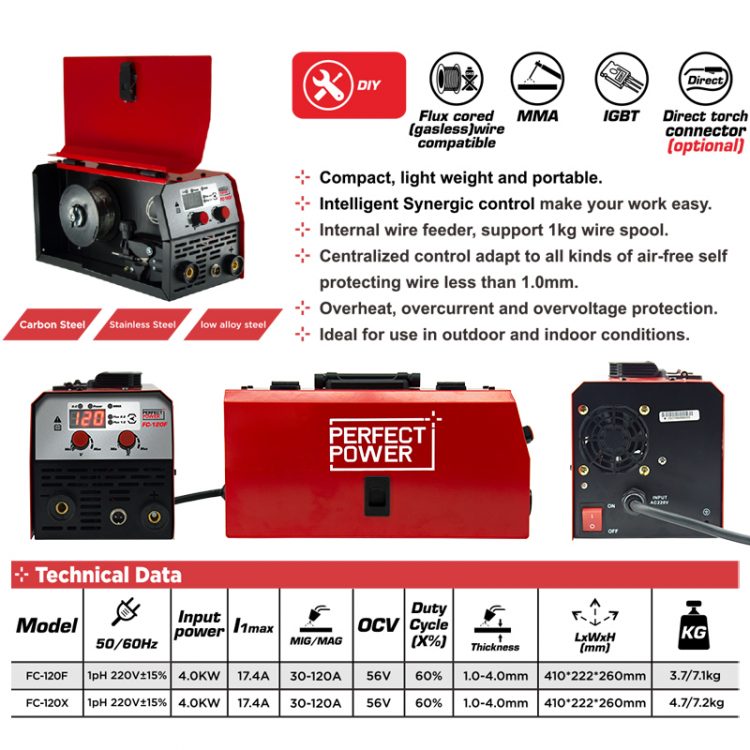

Model

FC-120F
Power input AC(V)

1ph 220V ±15%
Power input frequency(Hz)

50/60
Max. Load Power Capacity(kVA)

5.1
Rated current input(A)

23
Rated output current(A)/voltage(V)

120/20.0（MIG） 120/24.8（MMA）
Welding current range(A)

30-120（MIG） 20-120（MMA）
Open circuit voltage DC(V)

60
Rated duty cycle(%)

60
Wire Feeding Speed(M/min)

2-15
IP grade

IP21
Insulation grade

H
Dimensions(mm)

430*220*320
Weight (KG)

7.25
Wire Melting Type

short circuit transfer

FC-120 FLUX CORED MMA Welder Video
