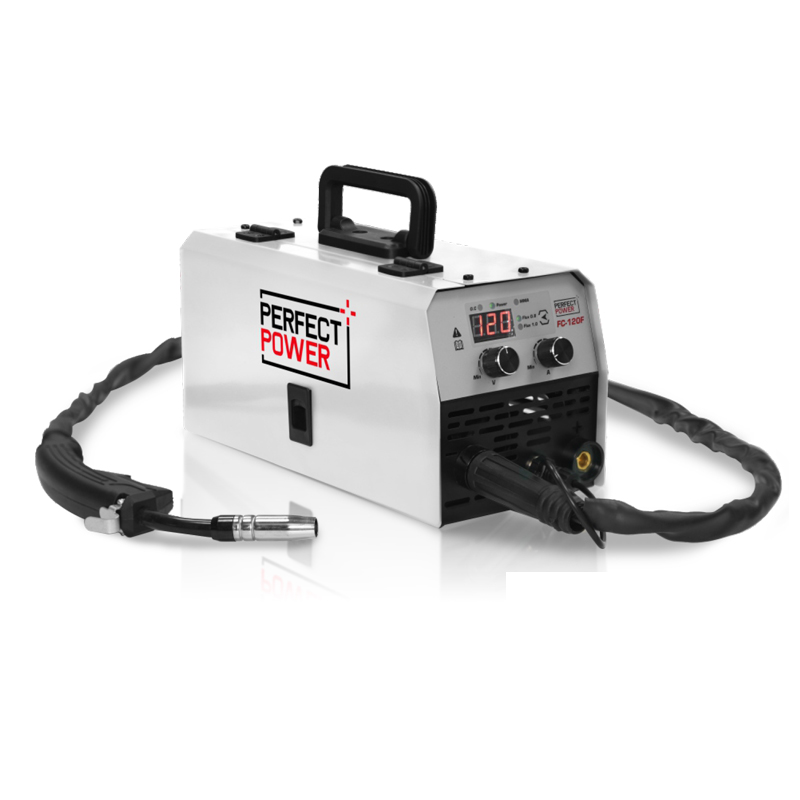

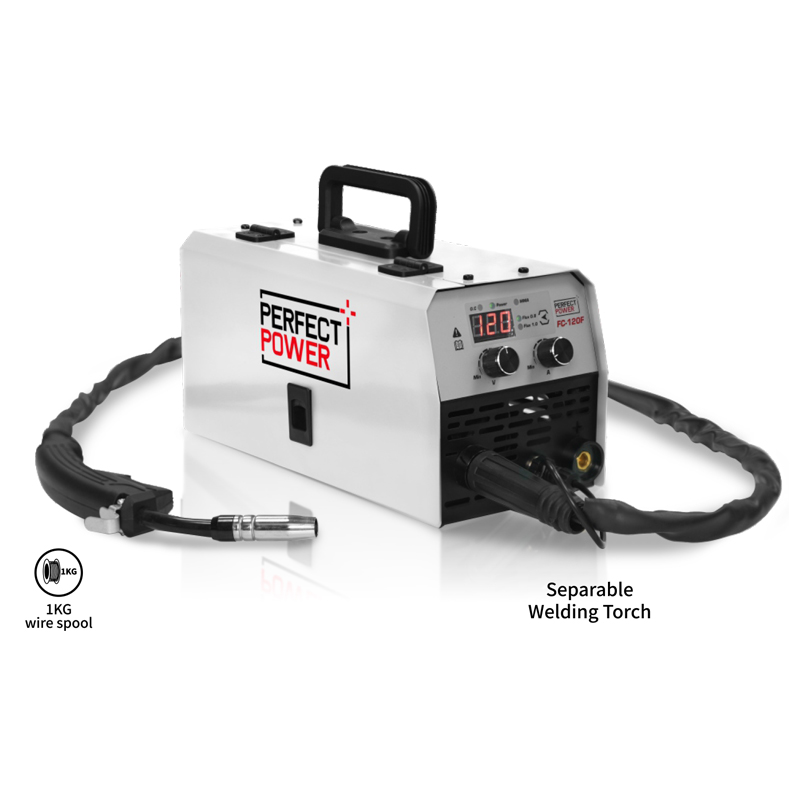

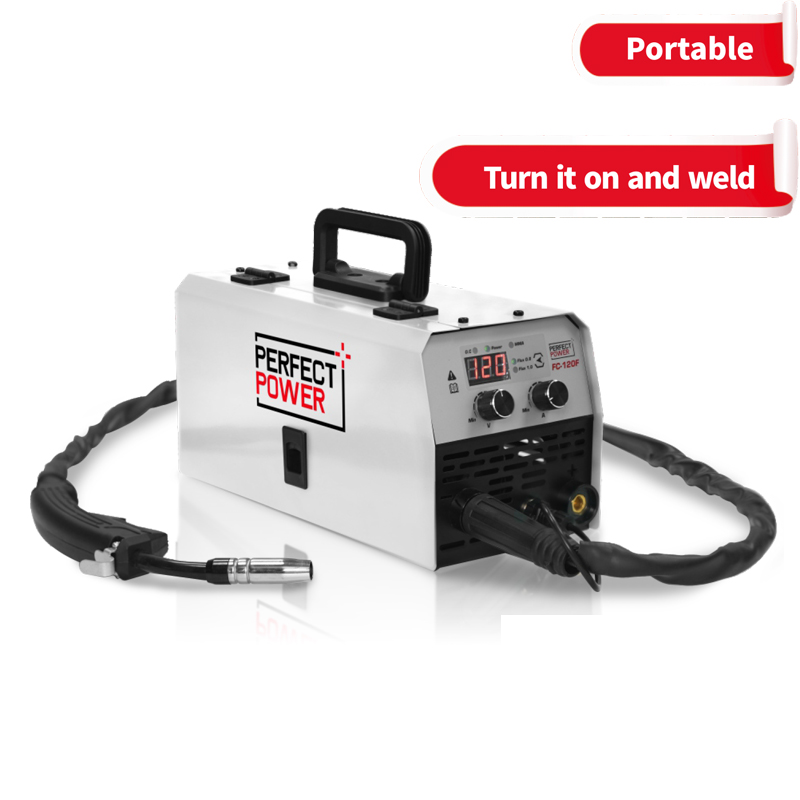

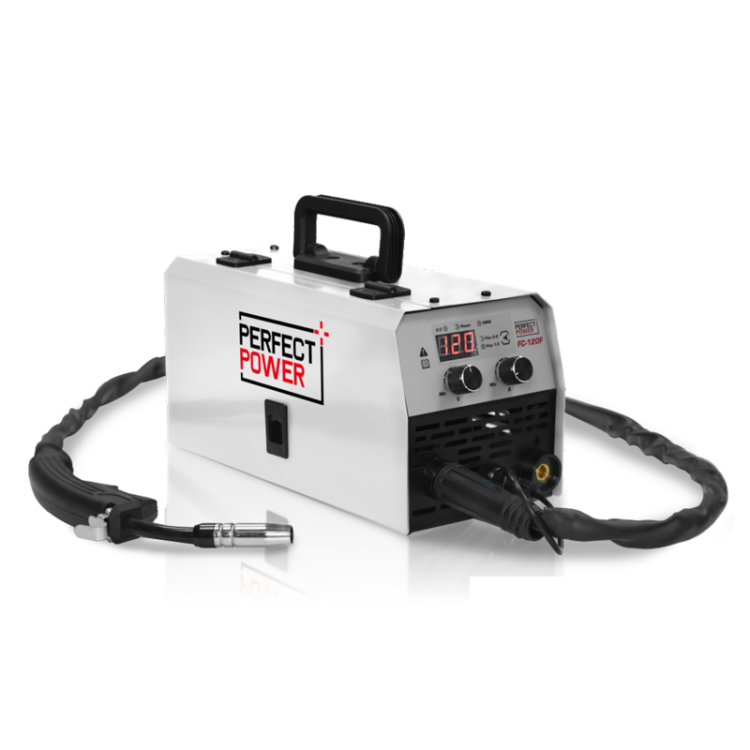

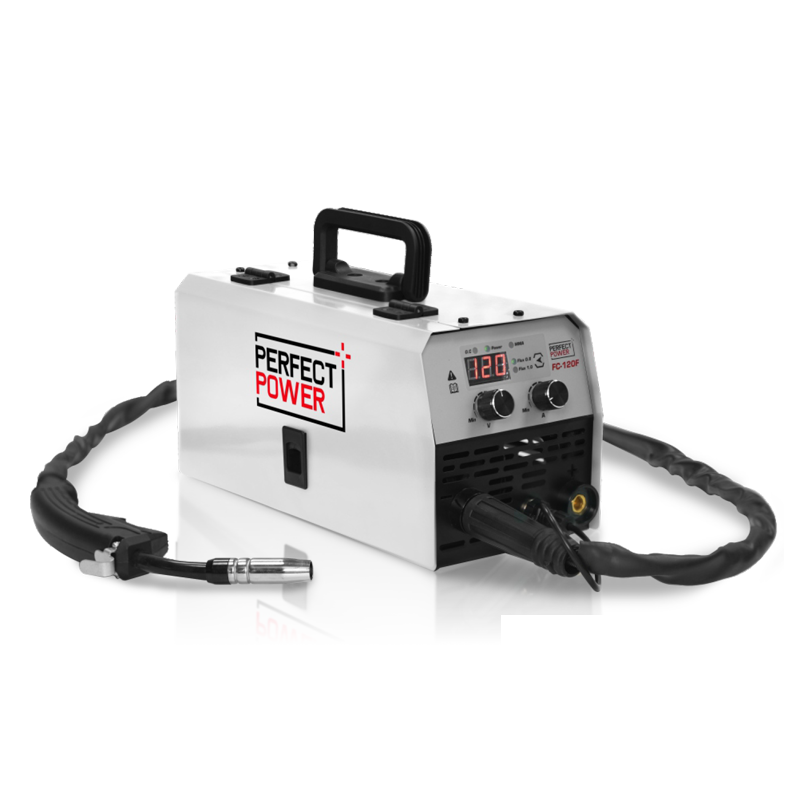

FC-120F Flux Core Gasless Welder

120 Amp Wire Feeder Flux Cored Wire Gasless MIG Welder, 110-Volt and 220-Volt IGBT Inverter Welding, 35% Duty Cycle

FC-120F 120 AMP Flux Core Gasless Welder, is your go-to solution for all your welding needs. Whether you’re a DIY enthusiast or a professional welder, this welder offers exceptional performance, versatility, and ease of use. With a power output of 120 AMP MIG welder, this welder provides ample welding power to tackle a wide range of projects. From automotive repairs to fabrication tasks, this welder delivers precise and reliable welds, ensuring strong and durable connections. Equipped with a flux core welding feature, this welder eliminates the need for external shielding gas, making it incredibly convenient and cost-effective. The flux core wire creates its own shielding gas when heated, providing excellent weld penetration and reducing the risk of weld defects.

In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

FC-120F 120 AMP Flux Core Gasless Welder, is your go-to solution for all your welding needs. Whether you’re a DIY enthusiast or a professional welder, this welder offers exceptional performance, versatility, and ease of use. With a power output of 120 AMP MIG welder, this welder provides ample welding power to tackle a wide range of projects. From automotive repairs to fabrication tasks, this welder delivers precise and reliable welds, ensuring strong and durable connections. Equipped with a flux core welding feature, this welder eliminates the need for external shielding gas, making it incredibly convenient and cost-effective. The flux core wire creates its own shielding gas when heated, providing excellent weld penetration and reducing the risk of weld defects.

Features：

1. Multi-function: Gasless flux cored wire welding and MMA.
2. Compact design, lightweight, but robust.
3. User-friendly and cost-effective.
4. Internal wire feeder, gear driven, support 1kg wire feeding.
5. Centralized control adapts to all kinds of air-free self-protecting wire less than 1.0 mm.
6. Equipped with a trimmer potentiometer on the control panel,it is more convenient for the voltage compensation of welding to make the welding effect more perfect.
7. MMA supports covered electrode welding with a maximum diameter of 3.2mm, with stable output current and continuous arc during welding.
8. Overheat, overcurrent, and overvoltage protection.

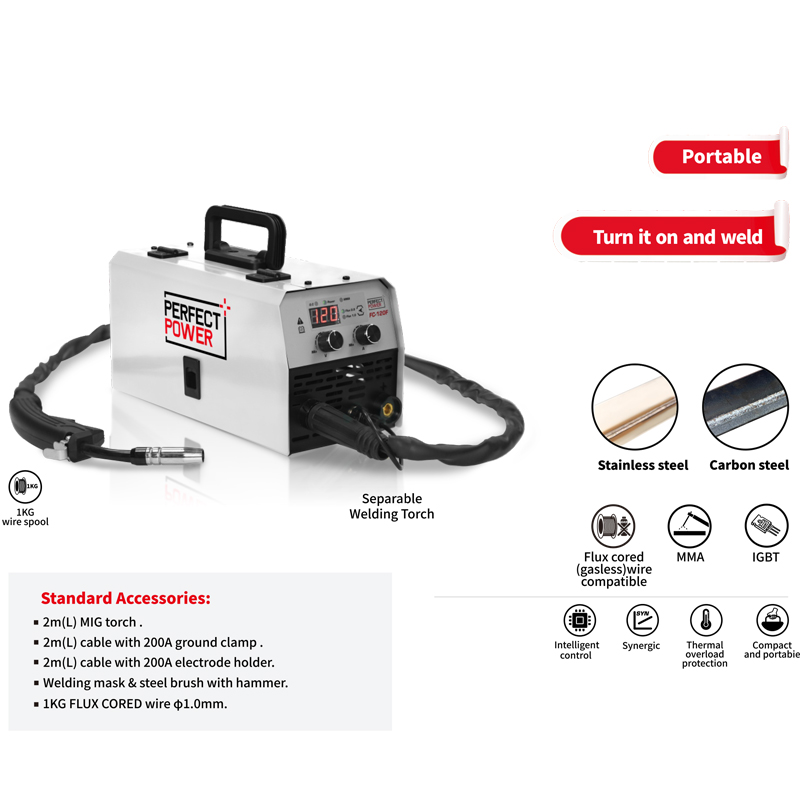

What’s Included：

2M(L) 2*2.5+1mm² Power Cable(EUR Blug)
2M(L)16mm² cable with 300A ground clamp
2M(L)16mm² cable with 200A electrode holder

1x Welding Mask
1x Brush / Hammer
1x φ1.0mm 1KG Flux cored wire



Power input AC(V)

1ph 110V/220V ±15% / 1ph 220V ±15%
Power input frequency(Hz)

50/60Hz / 50/60Hz
Max. Load Power Capacity(kVA)

4.0 kVA / 4.0 kVA
Rated current input(A)

35.5A / 17.4A
Rated output current(A)/voltage(V)

120/20.0（MIG） 120/24.8（MMA） / 120/20.0（MIG） 120/24.8（MMA）
Welding current range(A)

30-120（MIG） 30-120（MMA） / 30-120（MIG） 30-120（MMA）
Open circuit voltage DC(V)

56V / 56V
Rated duty cycle(%)

35% / 35%
Wire Feeding Speed(M/min)

2-15 M/min
IP grade

IP21S
Insulation grade

F
Dimensions(mm)

410*222*260 mm
N.M./G.W.(kg)

5.0kg / 7.5kg
Wire Melting Type

short circuit transfer
Welding Process

Flux-Cored / MMA
Wirespool Capable

1 kg
Recommend Wire(mm)

0.8~1.0 mm
Thickness of welding material（mm）

Steel/Carbon Steel:0.6~4.0mm
Stainless Steel:0.6~4.0mm
