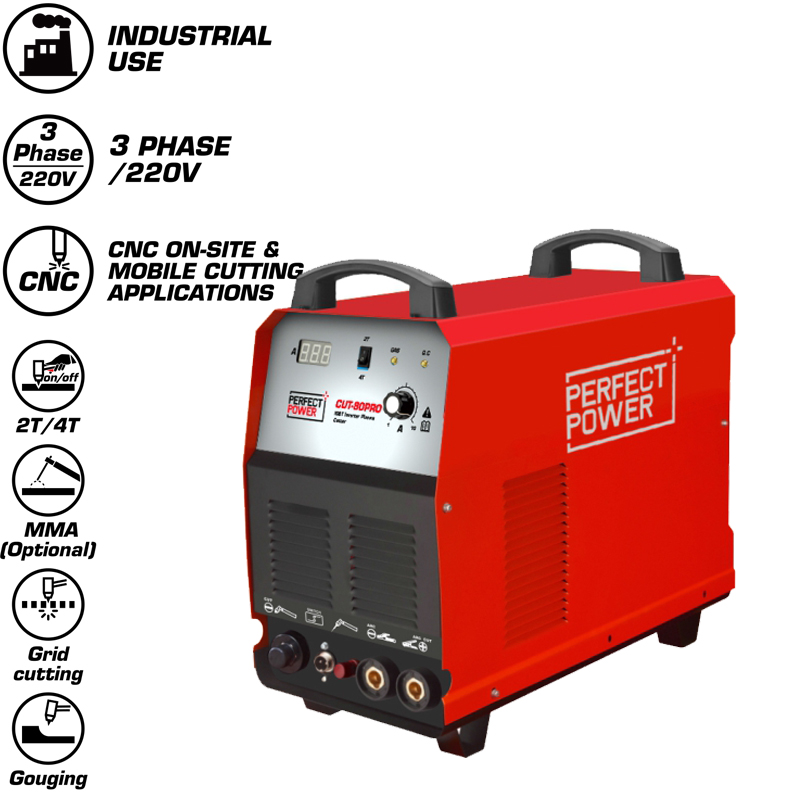

1. 3ph/220V input power allows even 160A cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting function; the connector is optional.
3. MULTI-FUNCTION two in one, optional MMA function.

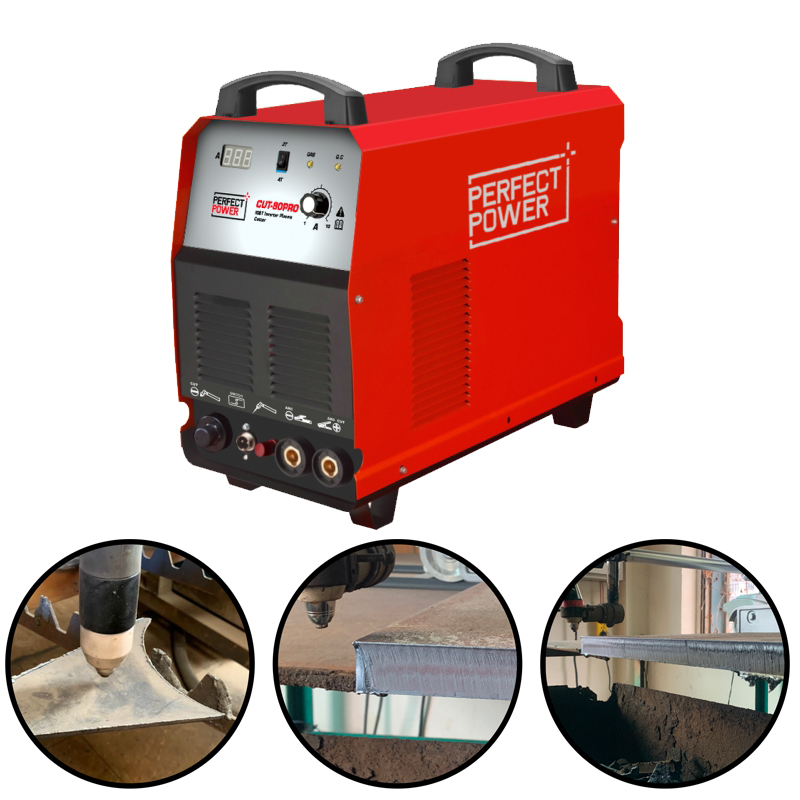

4. Powerful cutting capacity, narrow cutting seam, and clean cutting edge.
5. 2T/4T self-locking function.
6. Pilot Arc Starting increases cutting capability and cutting speed, improving the service life of torch kit.

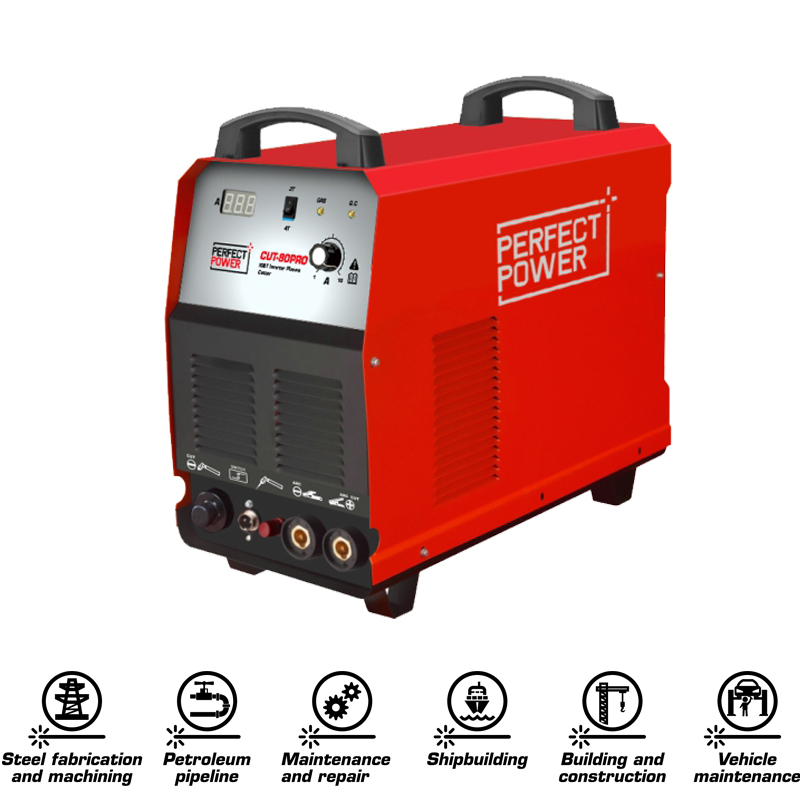

7. Heavy-duty cycle for industrial use.

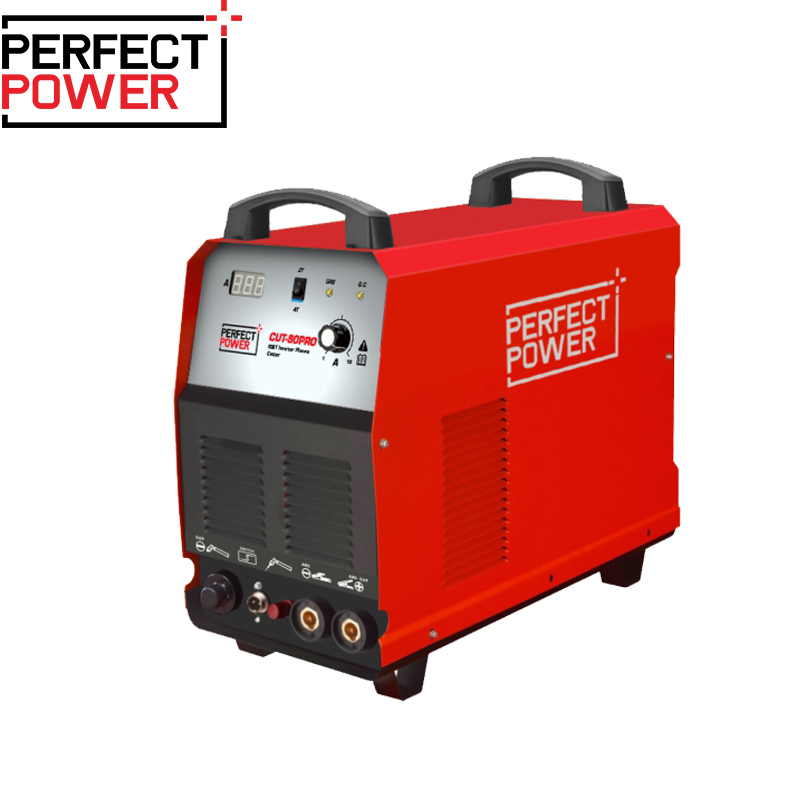

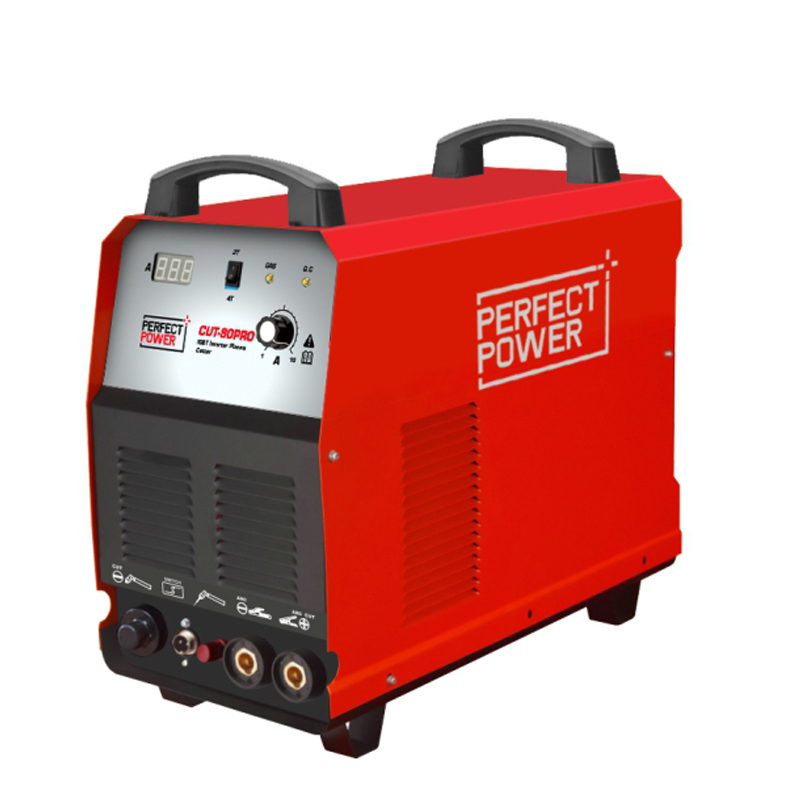

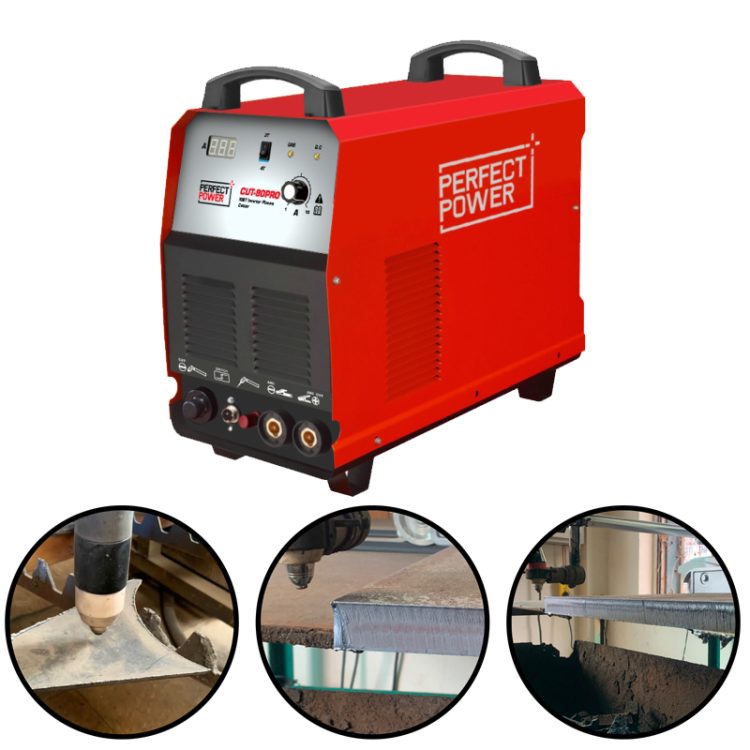

Clean cuts through rusty/painted metalIt delivers powerful performanceIt is a durable plasma cutter| Model | CUT-80PRO |
|---|---|
| Power input AC(V) | 3ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity | 13.9 kVA |
| Rated current input(A) | 36.45 |
| Rated output current(A)/voltage(V) | 80/112 |
| Max. cutting current (A) | 80 |
| Open circuit voltage DC(V) | 280 |
| Rated duty cycle(%) | 60 |

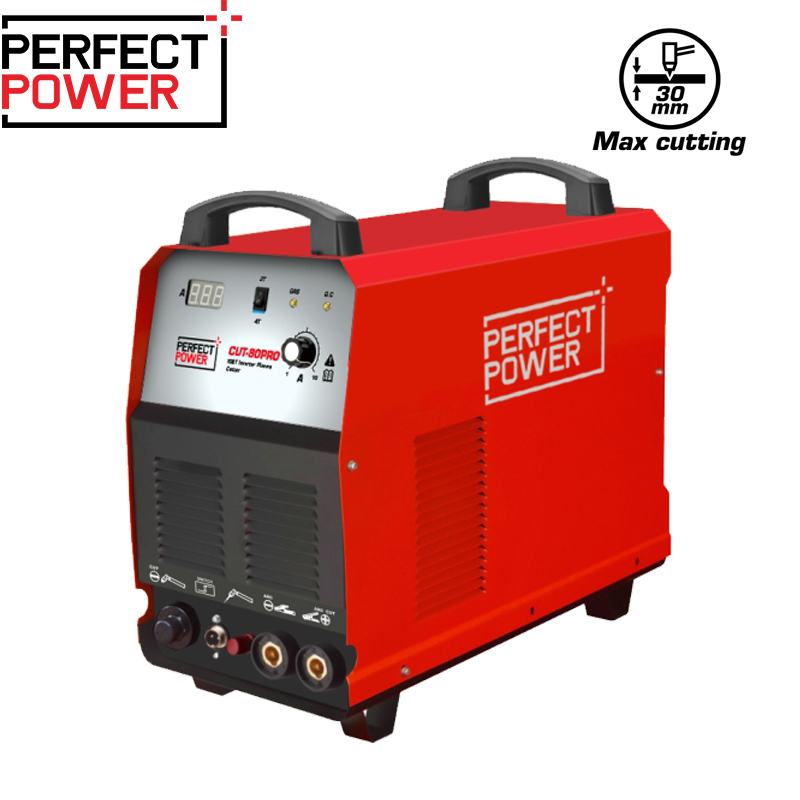

| Max.cutting thickness(mm) | 30 |
| IP grade | IP21 |
| Insulation grade | F |
| Dimensions(mm) | 575*333*490 |
| Weight (KG) | 16.5 |
Video
Related products
-
EquipmentsCUT-40D AIR IGBT Inverter Plasma Cutting Machine
The CUT-40D Air Plasma Cutter is a powerful machine that cuts through mid-steel, thin copper, thin aluminum, and stainless steel up to 16mm thick with ease, using a 220V power source. Its compact design and lightweight construction make it easy to move around, while the built-in air compressor eliminates the need for an external air supply. With a cutting capacity of up to 16mm at 40A, this plasma cutter is perfect for DIY enthusiasts and professionals alike.
- Equipments

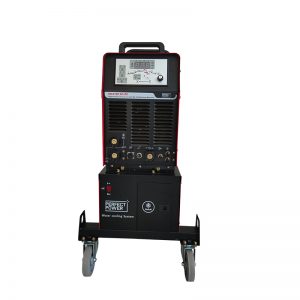

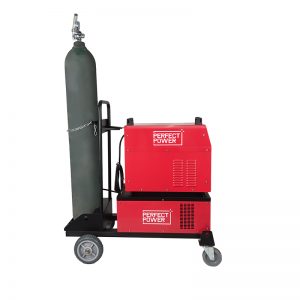

200V-440V AC DC TIG Welder IGBT Inverter TIG-315P AC DC TIG Welding Machine
