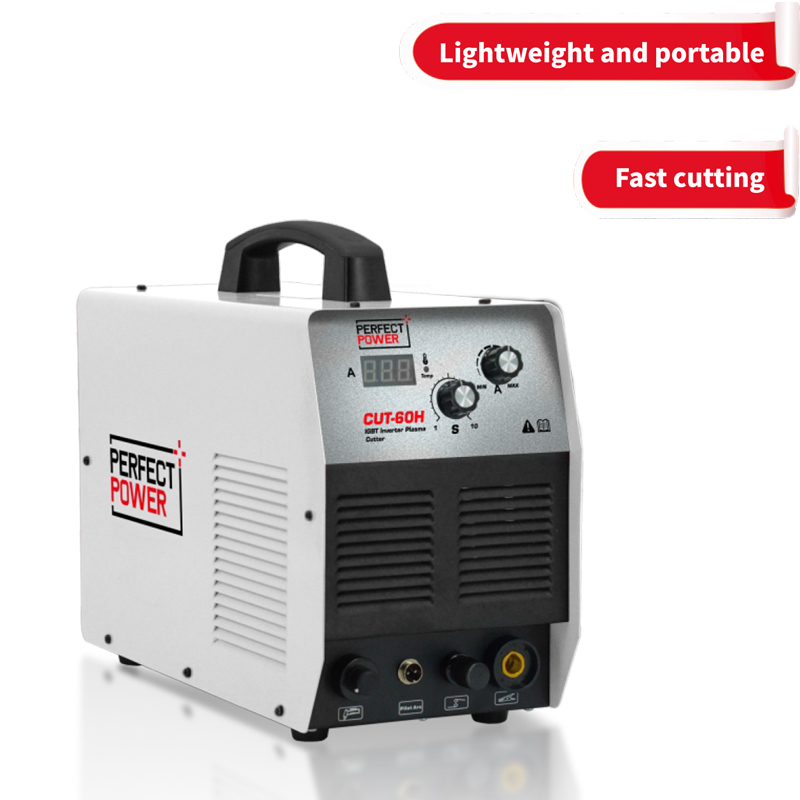

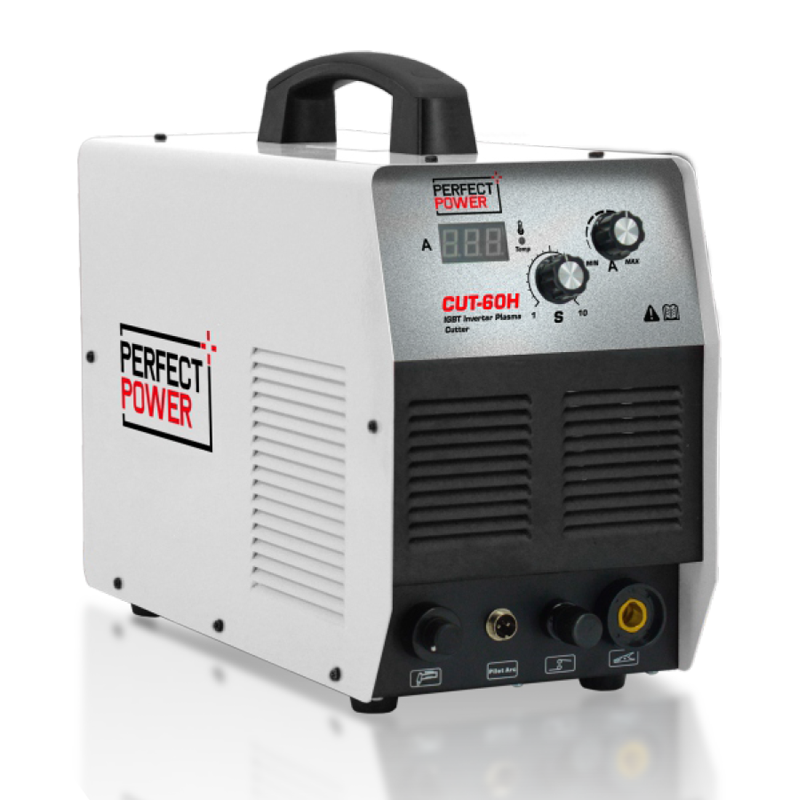

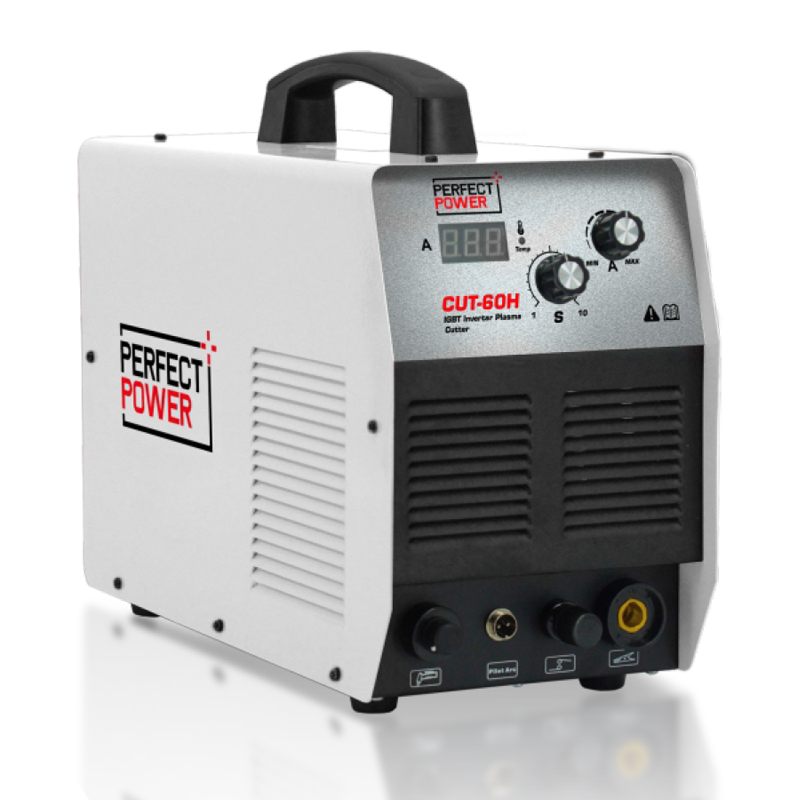

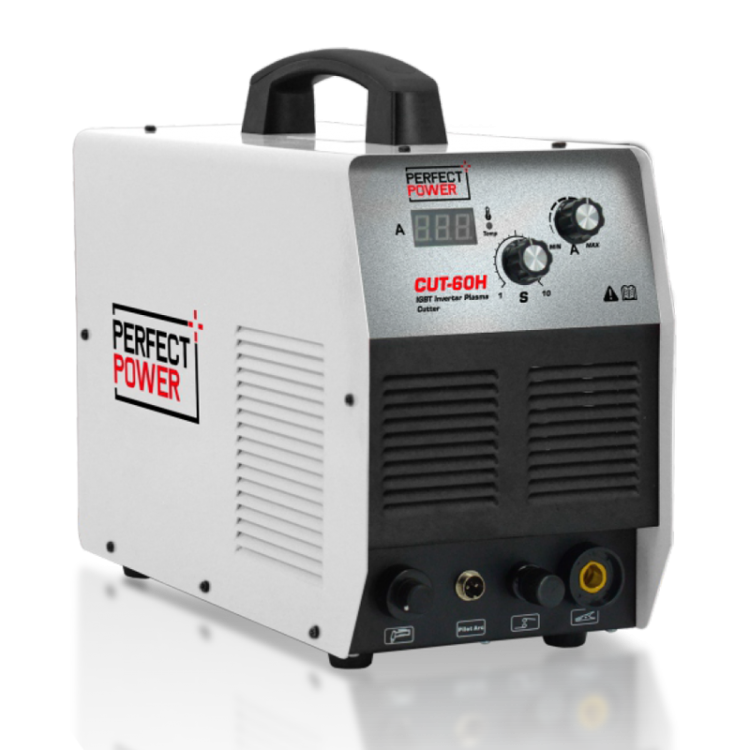

CUT-60H Plasma Cutter

60 Amp Plasma Cutter, 20mm Maximum Cut, 35% Duty Cycle, Plasma Cutting – Anywhere, Anytime

CUT-60H plasma cutter is portable enough to carry to any job site. Hook up the compressed air, grab the torch, and start cutting right away. Due to its reliability and portability, this plasma cutter is ideal for onsite maintenance, small construction sites, HVAC, and demolition.
The new and improved model makes it more convenient and easier to use. New digitally controlled 60-amp Plasma Cutter Machine with advanced inverter technology and high cutting performance. Designed for portable repair work and small business project use, the CUT-60H plasma cutting machine cuts a thickness of 10mm., and the max severance thickness is 20mm.

In Stock

CUT-60H plasma cutter is portable enough to carry to any job site. Hook up the compressed air, grab the torch, and start cutting right away. Due to its reliability and portability, this plasma cutter is ideal for onsite maintenance, small construction sites, HVAC, and demolition.
The new and improved model makes it more convenient and easier to use. New digitally controlled 60-amp Plasma Cutter Machine with advanced inverter technology and high cutting performance. Designed for portable repair work and small business project use, the CUT-60H plasma cutting machine cuts a thickness of 10mm., and the max severance thickness is 20mm.

Features:

1. IGBT inverter for high efficiency, simple operation, and smooth precise cutting.
2. Small size, lightweight, and long cutting time; easy to move, especially suitable for occasions of high mobility
and working at heights.
3. Accurate cutting current preset ensures good cutting effect, energy-saving performance, and convenient operations, suitable for cutting workpieces of different thicknesses.
4. Adjustable Pre-flow checking and post-flow cooling.
5. Narrow cutting seam, clean cutting edge, antideformation.
6. Overheat, overcurrent, and overvoltage protection.
7. Anti-fluctuation of power supply.

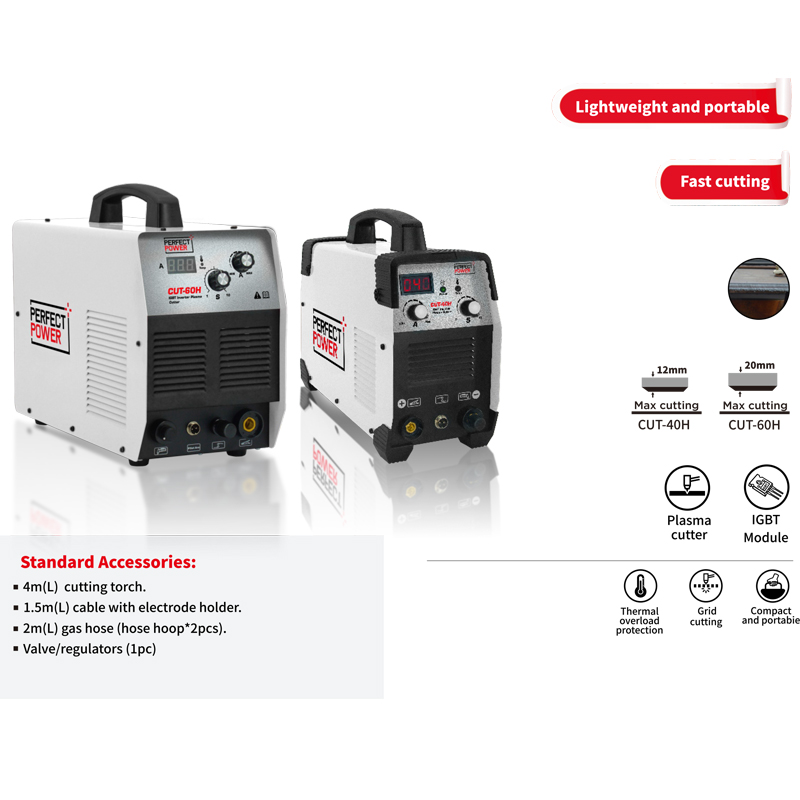

What’s Included:

3M(L) Power Cable
1.5M(L) 16mm² cable with 300A ground clamp
4M(L) P80 Plasma cutting torch
1.5M(L) Gas Hose (Hose Hoop*4pcs)
Valve/regulato (1PC)

Power input AC(V)

1ph 220V ±15% / 3pH 380V ±15%

Power input frequency(Hz)

50/60Hz

Max. Load Power Capacity(kVA)

10.5kVA / 8.9kVA

Rated current input(A)

47.7A / 14.6A

ated output current(A)/voltage(V)

60A/104V

Max. cutting current (A)

60A

Open circuit voltage DC(V)

270V / 340V

Rated duty cycle(%)

35%

Max.cutting thickness(mm)

20mm

IP grade

IP21

Insulation grade

F

Dimensions(mm)

580*315*415 mm

N.M./G.W.(kg)

10.6kg/14.7kg

Quality cutting thickness (mm)

Steel/Carbon Steel:≤15 mm
Stainless Steel:≤15 mm
Aluminum:≤10 mm
Copper/Brass:≤5 mm

Welding Process

CUT / HF / Post Flow
