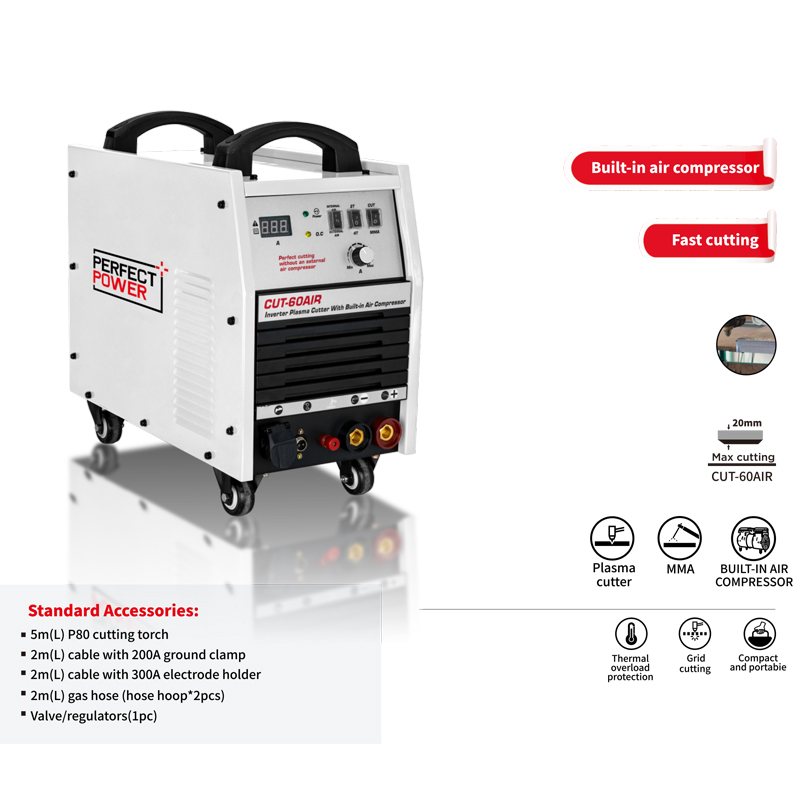

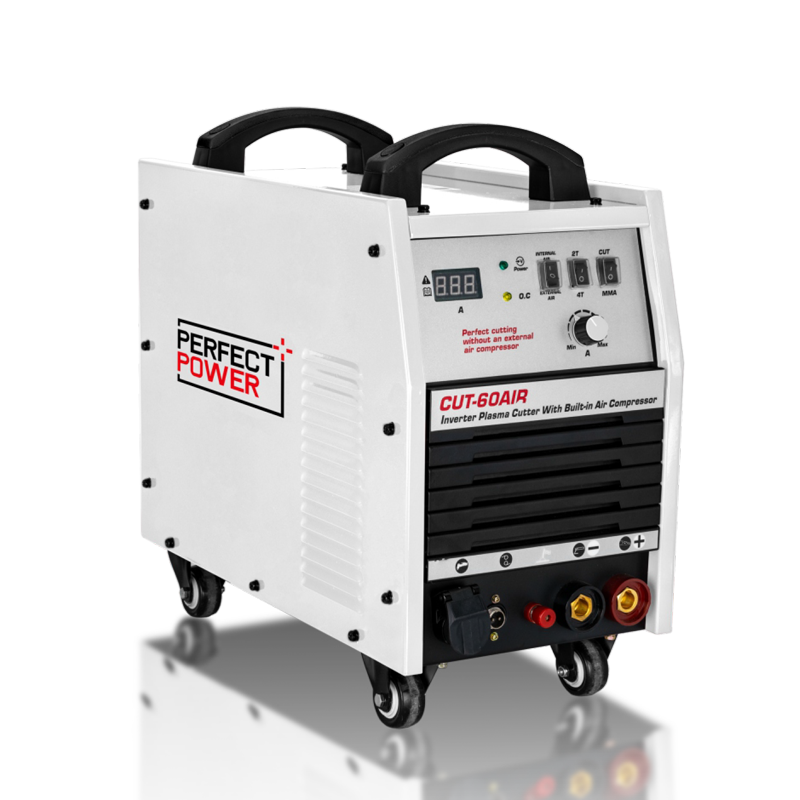

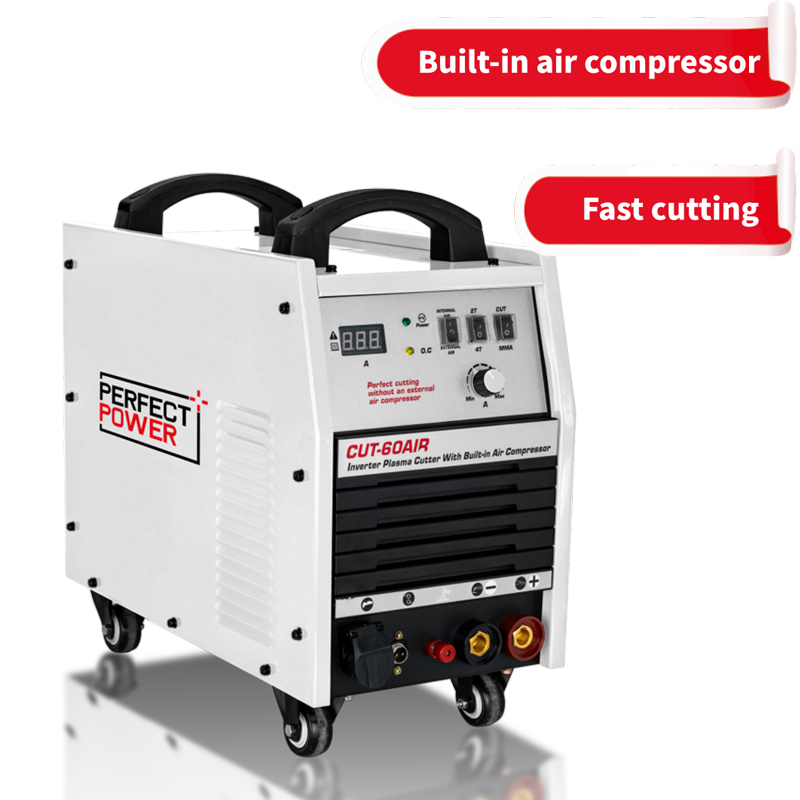

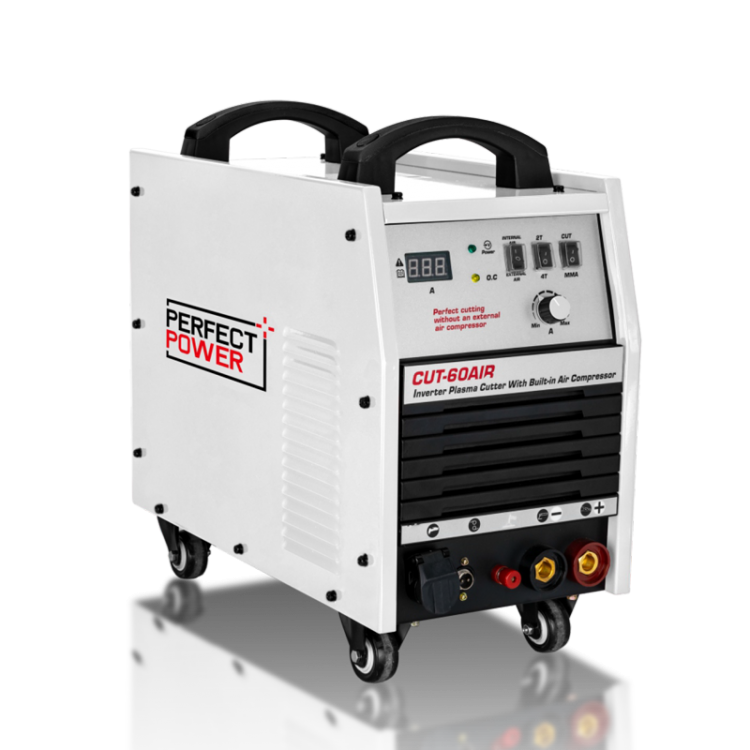

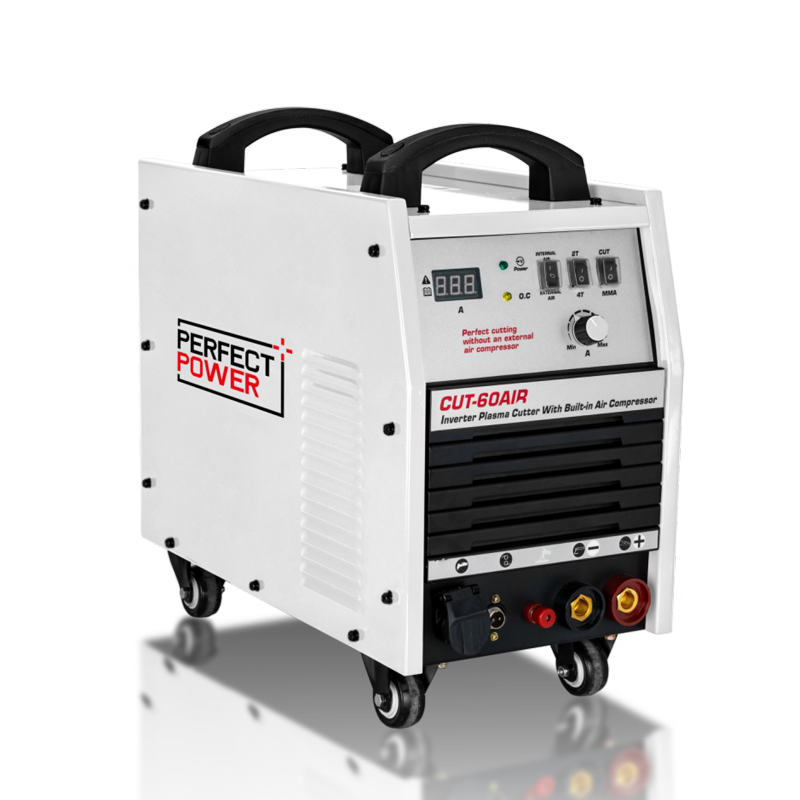

CUT-60AIR Air Plasma Cutter

60 Amp Non-Touch Pilot Arc Plasma Cutter, 25mm Maximum Cut, 60% Duty Cycle, Plasma Cutting – Anywhere, Anytime

CUT-60AIR air plasma cutter is the newest model of the professional digital control plasma cutting machine with built-in air compressor advanced inverter technology. CUT-60AIR plasma cutter is a high-quality design manufactured in accordance with industrial-level standards. The plasma cutting machine has a high-cutting performance and is very user-friendly with a beautiful appearance and exquisite production technology. The instrument is installed inside the machine on the panel, making it more convenient and easier to use. The air filter is installed in the machine and is controlled automatically by a solenoid valve, which greatly improves the work efficiency. The normal cutting thickness of the CUT-60AIR air plasma cutting machine is 15mm, and the maximum cutting thickness is 20mm.

In Stock

CUT-60AIR air plasma cutter is the newest model of the professional digital control plasma cutting machine with built-in air compressor advanced inverter technology. CUT-60AIR plasma cutter is a high-quality design manufactured in accordance with industrial-level standards. The plasma cutting machine has a high-cutting performance and is very user-friendly with a beautiful appearance and exquisite production technology. The instrument is installed inside the machine on the panel, making it more convenient and easier to use. The air filter is installed in the machine and is controlled automatically by a solenoid valve, which greatly improves the work efficiency. The normal cutting thickness of the CUT-60AIR air plasma cutting machine is 15mm, and the maximum cutting thickness is 20mm.

Features:

1. Built in Air Compressor .
2. Highly convenient, operate it anywhere.
3. More precise cut, thinner kerf, less slag to clean up. 4. Stand-off torch cutting.
5. Cut Thickness,15mm Quality Cutting, Max 25mm Cutting.
6. External Air Compressor can be connected.
7. MMA function, max 170A.

What’s Included:

5M(L) P80 cutting torch
2M(L) 10mm² cable with 300A ground clamp
2M(L) Gas Hose (Hose Hoop*2pcs)
Valve/regulato (1PC)

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60Hz

Max. Load Power Capacity(kVA)

8.6kVA

Rated current input(A)

27.8A

ated output current(A)/voltage(V)

60A/104V

Max. cutting current (A)

60A

Open circuit voltage DC(V)

280V

Rated duty cycle(%)

60%

Max.cutting thickness(mm)

25mm

IP grade

IP21

Insulation grade

F

Dimensions(mm)

480*290*390 mm

N.M./G.W.(kg)

28kg/34kg

Quality cutting thickness (mm)

Steel/Carbon Steel:≤20 mm
Stainless Steel:≤20 mm
Aluminum:≤15 mm
Copper/Brass:≤10 mm

Welding Process

CUT / MMA / HF / Pilot-arc / 2T/4T
