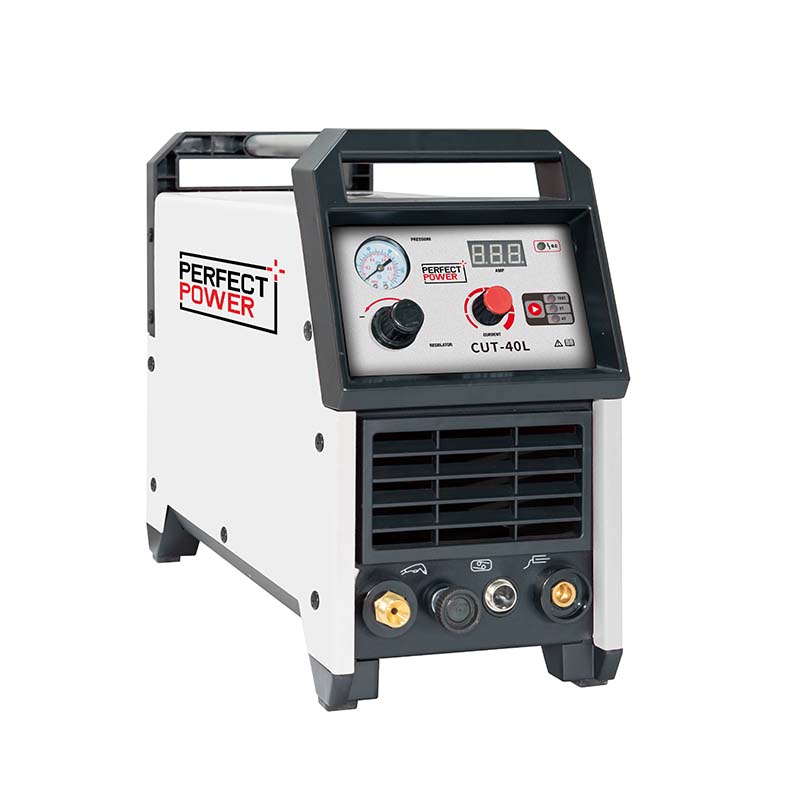

CUT-40L Plasma Cutter

40 Amp Plasma Cutter, 12mm Maximum Cut, 60% Duty Cycle, Plasma Cutting – Anywhere, Anytime

Elevate your cutting experience with the CUT-40L Plasma Cutter, a powerhouse of efficiency, precision, and portability. Designed with cutting-edge technology, this IGBT inverter plasma cutter ensures high efficiency, simple operation, and smooth precise cutting.

Compact in size and light in weight, the CUT-40L offers an extended cutting time, making it the perfect companion for your cutting needs. Choose between the optional HF and NO-HF modes to fulfill diverse market requirements, providing flexibility for various cutting tasks.

In Stock

Elevate your cutting experience with the CUT-40L Plasma Cutter, a powerhouse of efficiency, precision, and portability. Designed with cutting-edge technology, this IGBT inverter plasma cutter ensures high efficiency, simple operation, and smooth precise cutting.

Compact in size and light in weight, the CUT-40L offers an extended cutting time, making it the perfect companion for your cutting needs. Choose between the optional HF and NO-HF modes to fulfill diverse market requirements, providing flexibility for various cutting tasks.

Features:

1. IGBT inverter for high efficiency, simple operation, and smooth precise cutting.
2. Small size, lightweight, and long cutting time.
3. Optional HF and NO-HF to fulfill market requirements.
4. Accurate cutting current preset ensures good cutting effect, energy-saving performance, and convenient operations, suitable for cutting workpieces of different thicknesses.
5. Narrow cutting seam, clean cutting edge, anti-deformation.
6. Overheat, overcurrent, and overvoltage protection.

What’s Included:

4m(L) cutting torch
3m(L) cable with ground clamp
3m(L) gas hose (hose hoop*2pcs)
Valve/regulators (1pc)

Power input AC(V)

1pH 110V ±15% / 1ph 220V ±15%

Power input frequency(Hz)

50/60Hz

Max. Load Power Capacity(kVA)

4.5kVA

Rated current input(A)

16.3A

ated output current(A)/voltage(V)

40A/96V(220V) 30A/92V(110V)

Max. cutting current (A)

40A

Open circuit voltage DC(V)

311V

Rated duty cycle(%)

60%

Max.cutting thickness(mm)

12mm

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

425*205*385mm

N.M./G.W.(kg)

10.4kg

Quality cutting thickness (mm)

Steel/Carbon Steel:≤8 mm
Stainless Steel:≤8 mm
Aluminum:≤5 mm
Copper/Brass:≤3 mm

Welding Process

CUT / HF / NO-HF / Grid cutting
