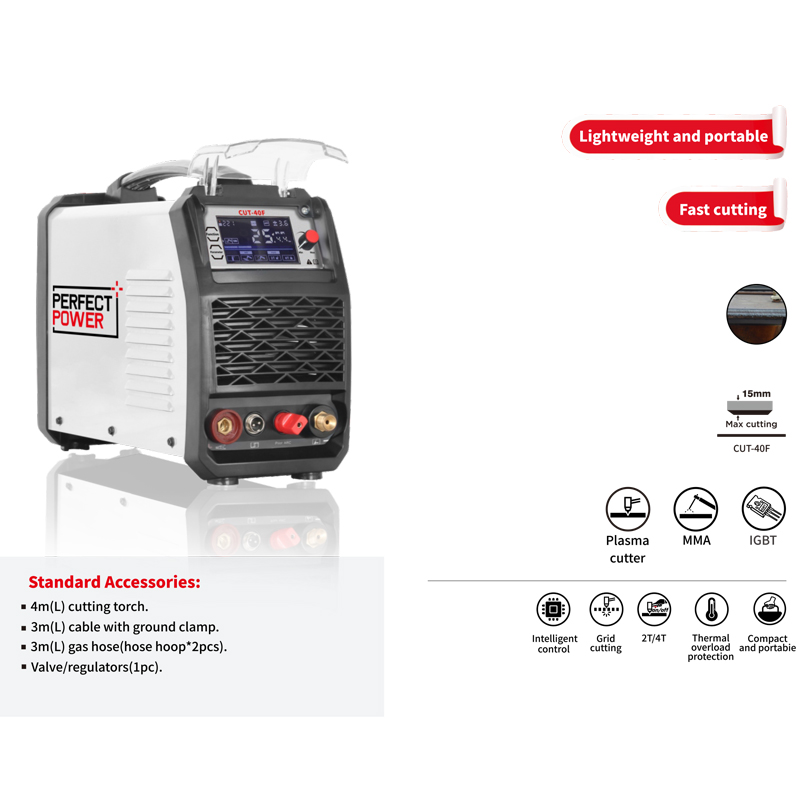

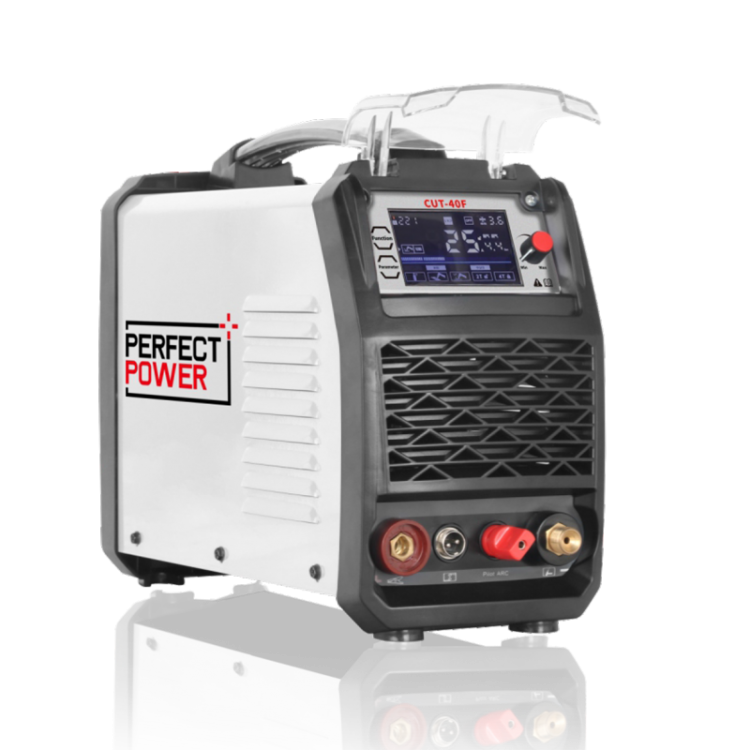

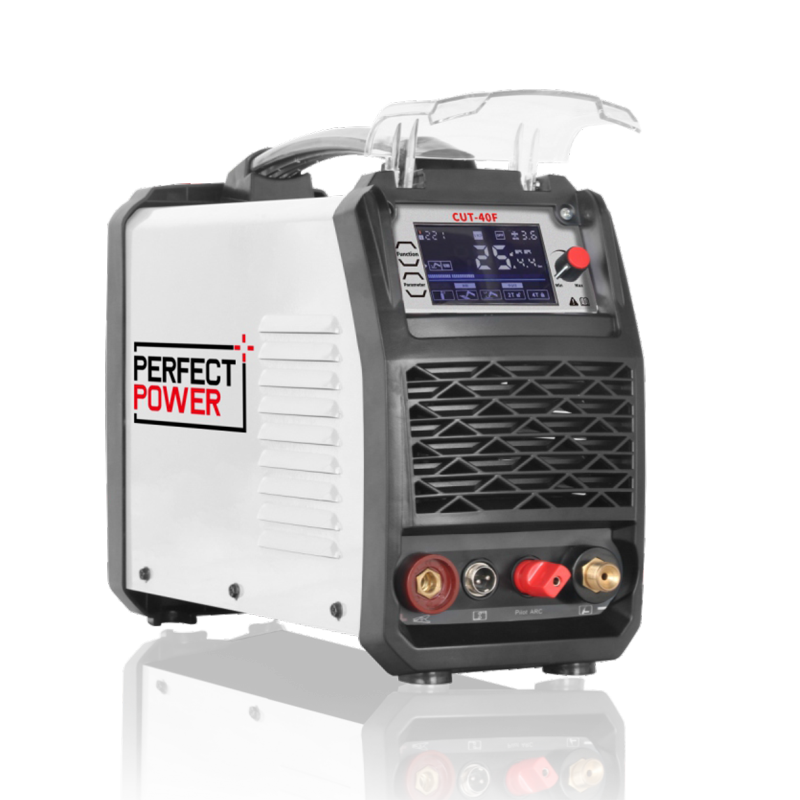

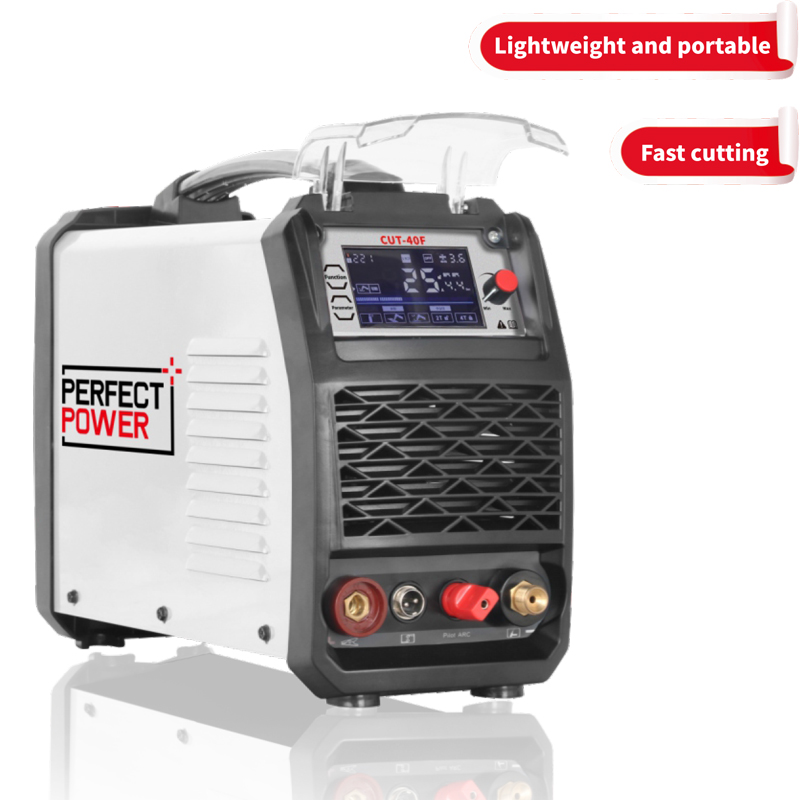

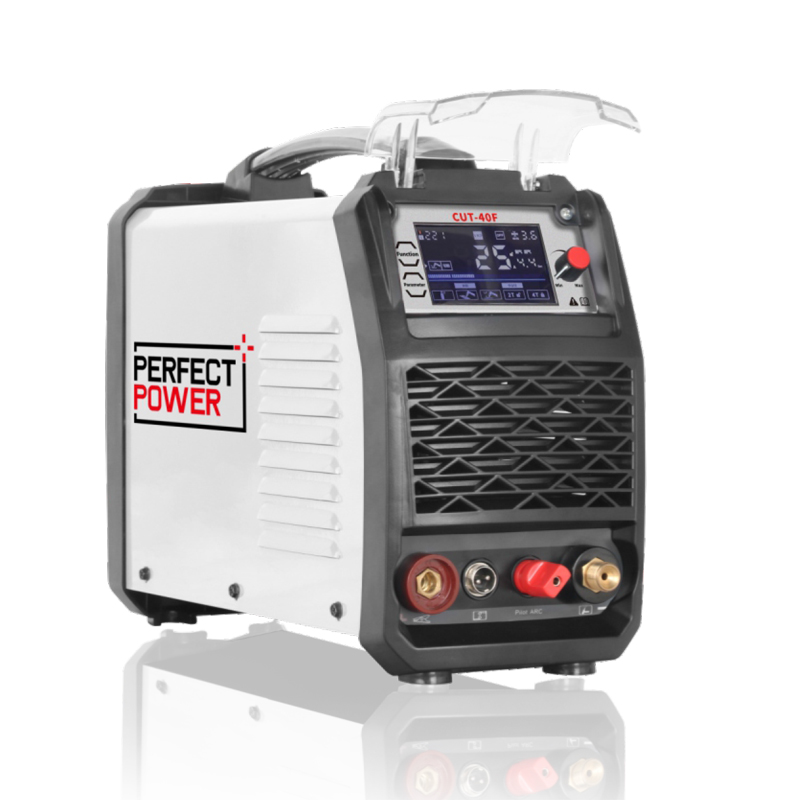

CUT-40F Plasma Cutter

40 Amp Plasma Cutter, 15mm Maximum Cut, 40% Duty Cycle, Plasma Cutting – Anywhere, Anytime

The CUT-40F plasma cutter is a portable, 40 amp plasma cutting machine. Sever up to 15 mm of almost any metal! Equipped with a large LED display, the CUT-40F plasma cutter is easy to read during operation so you won’t need to remove your PPE to make adjustments. The CUT-40F portable plasma cutting machine is very easy to setup and use, making it an excellent choice for small fabrication shops on a tight budget.

In Stock

The CUT-40F plasma cutter is a portable, 40 amp plasma cutting machine. Sever up to 15 mm of almost any metal! Equipped with a large LED display, the CUT-40F plasma cutter is easy to read during operation so you won’t need to remove your PPE to make adjustments. The CUT-40F portable plasma cutting machine is very easy to setup and use, making it an excellent choice for small fabrication shops on a tight budget.

The CUT-40F plasma cutter is equipped with all the safety features you would expect from a machine much more expensive! With over-heat, over-current, over-load, and over-voltage protection, rest assured this plasma cutter will be slaying metal for years to come! With fan-on-demand technology, the CUT-40F plasma cutter vents efficiently, only when needed, reducing its noise level and discharging generated heat.

Features:

1. IGBT inverter for high efficiency, simple operation, and smooth precise cutting.
2. Small size, lightweight, and long cutting time.
3. Optional HF and NO-HF to fulfill market requirements.
4. Narrow cutting seam, clean cutting edge, anti-deformation.
5. Overheat, overcurrent, and overvoltage protection.
6. Accurate cutting current preset ensures good cutting effect, energy-saving performance, and convenient operations, suitable for cutting workpieces of different thicknesses.
7. Adjustable pre-flow checking and post-flow cooling.



Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60Hz

Max. Load Power Capacity(kVA)

5.2kVA

Rated current input(A)

23A

ated output current(A)/voltage(V)

40A/96V

Max. cutting current (A)

40A

Open circuit voltage DC(V)

243V

Rated duty cycle(%)

40%

Max.cutting thickness(mm)

15mm

IP grade

IP21

Insulation grade

F

Dimensions(mm)

480*240*408 mm

N.M./G.W.(kg)

6.2kg/10kg

Quality cutting thickness (mm)

Steel/Carbon Steel:≤8 mm
Stainless Steel:≤8 mm
Aluminum:≤5 mm
Copper/Brass:≤3 mm

Welding Process

CUT / HF / NO-HF
