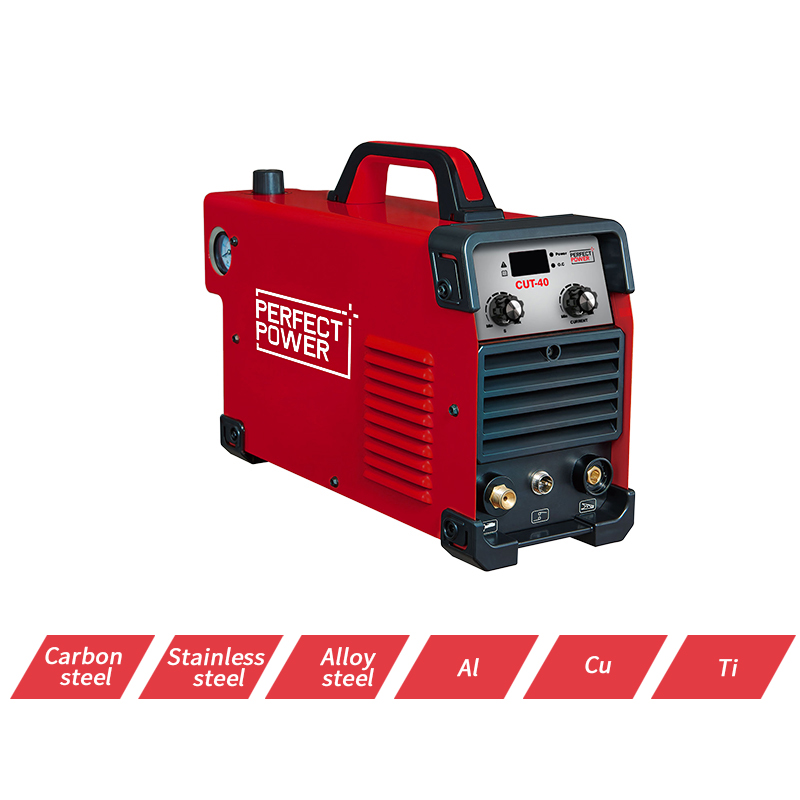

CUT-40 IGBT Inverter Plasma Cutting Machine

Code: CUT-40 Plasma Cutting Machine

The CUT-40 Plasma Cutter is a powerful machine that cuts through mid-steel, thin copper, thin aluminum, and stainless steel up to 12mm thick with ease, using a 220V power source and features automatic water-proofing, pilot arc starting, and O.H&O.C protection. With a cutting capacity of up to 12mm at 40A, this plasma cutter is perfect for DIY enthusiasts and professionals alike.

In Stock
2T/4T self-locking function
O.H&O.C protection
up to 12mm thick with ease
1. IGBT inverter for high efficiency, simple operation, and smooth precise cutting.
2. Pressure regulating valve does water-proof automatically, the gas meter was molded together with the machine, no need to install it.
3. Pilot arc starting increases cutting capability and cutting speed, improving the service life of the torch kit.
4. Adjustable post-flow function.
5. 2T/4T self-locking function.
6. Capable of cutting all metal plates.
7. O.H&O.C protection, for long-term use.
Model

CUT-40

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity

6.2

Rated current input(A)

28

Rated output current(A)/voltage(V)

40A/96V

Cutting current range(A)

15-40 A

Open circuit voltage DC(V)

280 V

Rated duty cycle(%)

60%

Max.cutting thickness(mm)

12 MM

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

422*156*275 mm

Weight (KG)

8.13 KG
