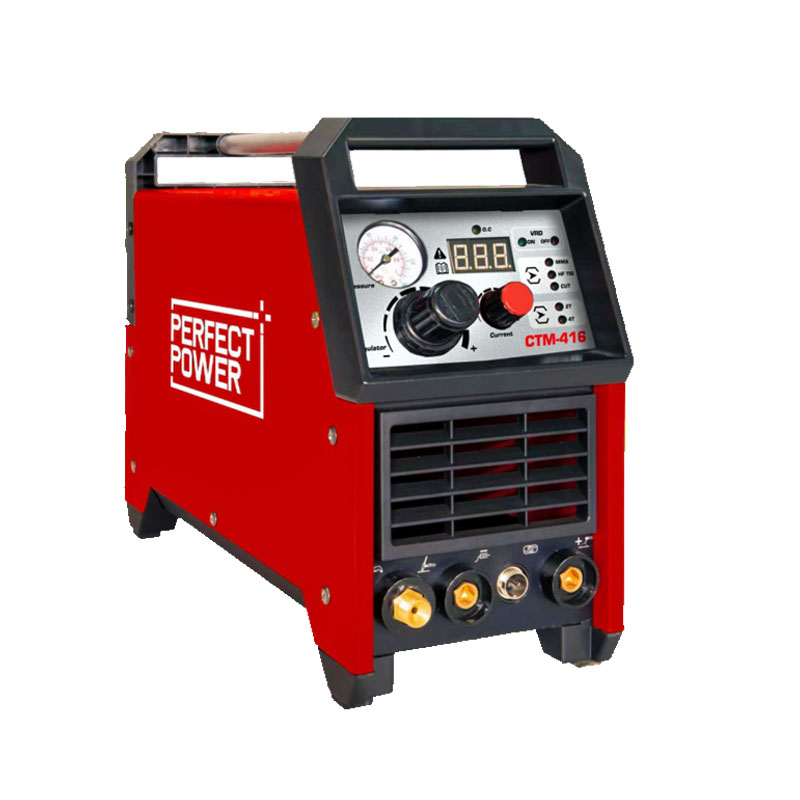

CTM-416 3 in 1 Multi-Functional Plasma Cutting Machine With CUT/HF TIG /MMA Function

The CTM-416 is a versatile plasma cutting machine with CUT, HF TIG, and MMA functions. It features a digital control system, adjustable welding parameters, and a 100% success rate for arc ignition. The machine also has safety features like adjustable VRD control and over-current protection.

In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

The CTM-416 Plasma Cutter is a versatile plasma cutting machine with CUT, HF TIG, and MMA functions. It features a digital control system, adjustable welding parameters, and a 100% success rate for arc ignition. The machine also has safety features like adjustable VRD control and over-current protection.

1. 3 in 1 function, including CUT, MMA, and HF TIG.
2. Full digital control system, welding parameters can be adjusted independently.
3. At TIG mode, arc starting with HF,100% success rate of arc ignition.
4. Narrow cutting seam, clean cutting edge, anti-deformation, high usage of metal.
5. MMA mode with adjustable VRD control, guarantees operator safety.
6. 2T/4T self-locking function.
7. Pressure adjustment and indicate on panel.
8. With perfect over current, overheating under voltage protection.

Model

CTM-416
Power input AC(V)

1ph 220V ±15%
Power input frequency(Hz)

50/60
Max. Load Power Capacity

4.9kVA
Rated current input(A)

30.4
Welding current range(A)

15-150(MMA) 20-40(CUT) 30-150(TIG)
Open circuit voltage DC(V)

69(MMA/TIG)277(CUT)
Maxcutting thickness(mm)

12 mm
Rated duty cycle(%)

40%-150A, 100%-95A(MMA/TIG) 40A, 100%-25A(CUT)
Weldable (cutting) materials

Carbon steel, Alloy steel, Ni,Stainless steel, Cu, Ti
IP grade

IP21S
Insulation grade

F
Dimensions(mm)

535X255x510
Weight (KG)

9.9/18.5
