1. High-resolution LCD screen help adjust welding parameter.
2. Industrial-class protection design.
3. Both MMA and lift TIG function.
4. Adjustable Arc Force, Anti-Stick, and Hot Start technology enable easy arc starting, arc stability, and smooth welding.
5. High power factor saving more energy.
6. Overload protection.
| Model | ARC-320D |
|---|---|
| Power input AC(V) | 3pH 380V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 13.7 kVA Arc Welder |
| Rated current input(A) | 20.8 |
| Rated output current(A)/voltage(V) | 320/32.8 |
| Welding current range(A) | 30-320 |
| Open circuit voltage DC(V) | 62 |
| Rated duty cycle(%) | 40 |
| IP grade | IP21S |
| Insulation grade | H |
| Dimensions(mm) | 551*325*432 |
| N.W(kg) | 12/15 |

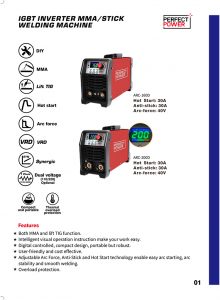

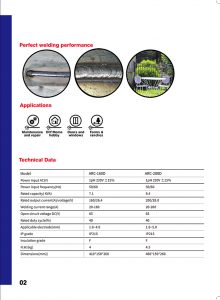

Brochure
ARC-200D ARC Welder Video
