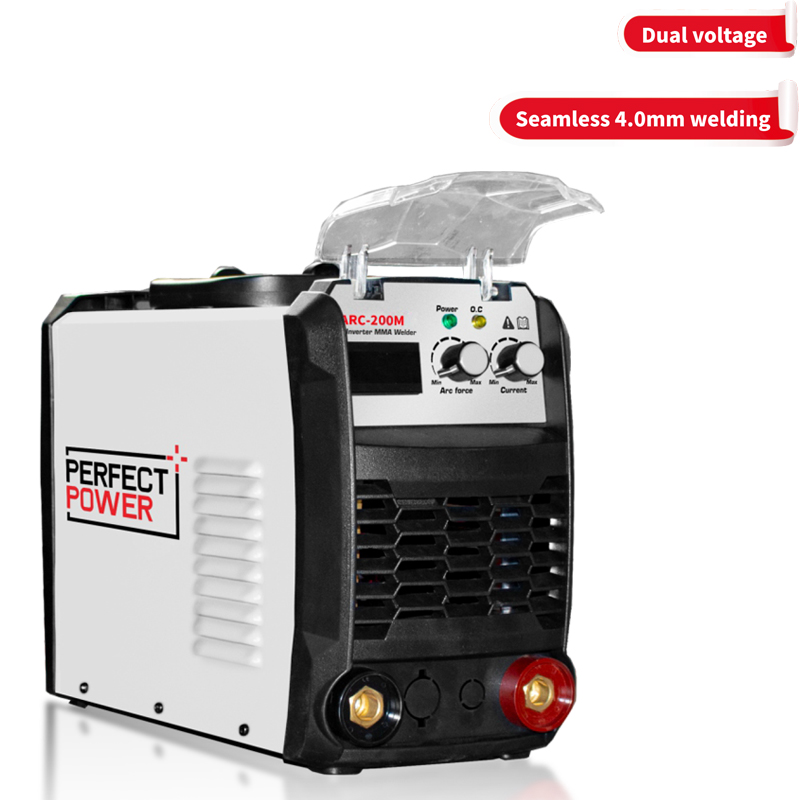

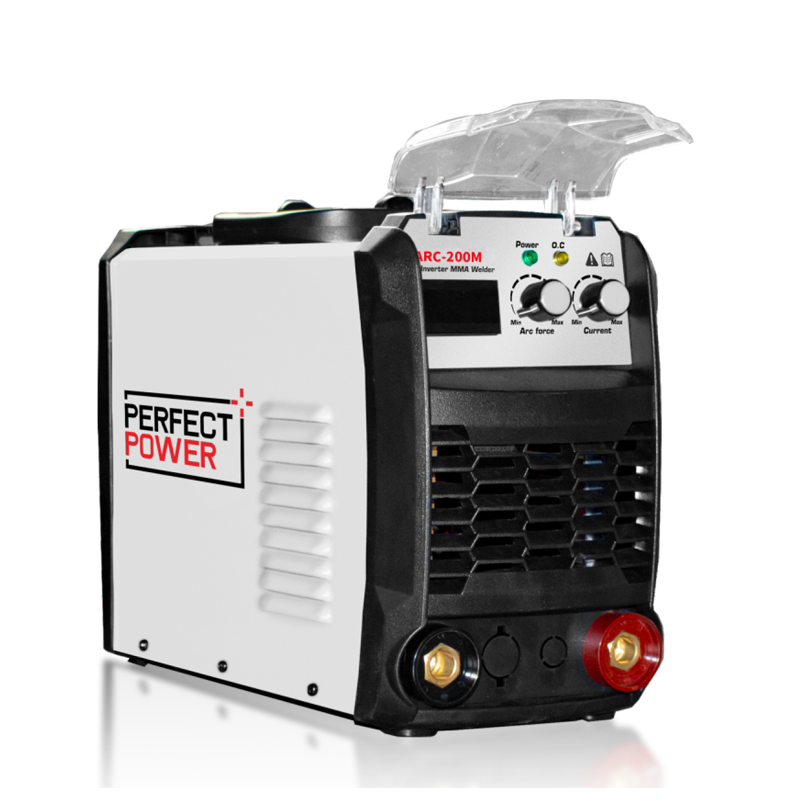

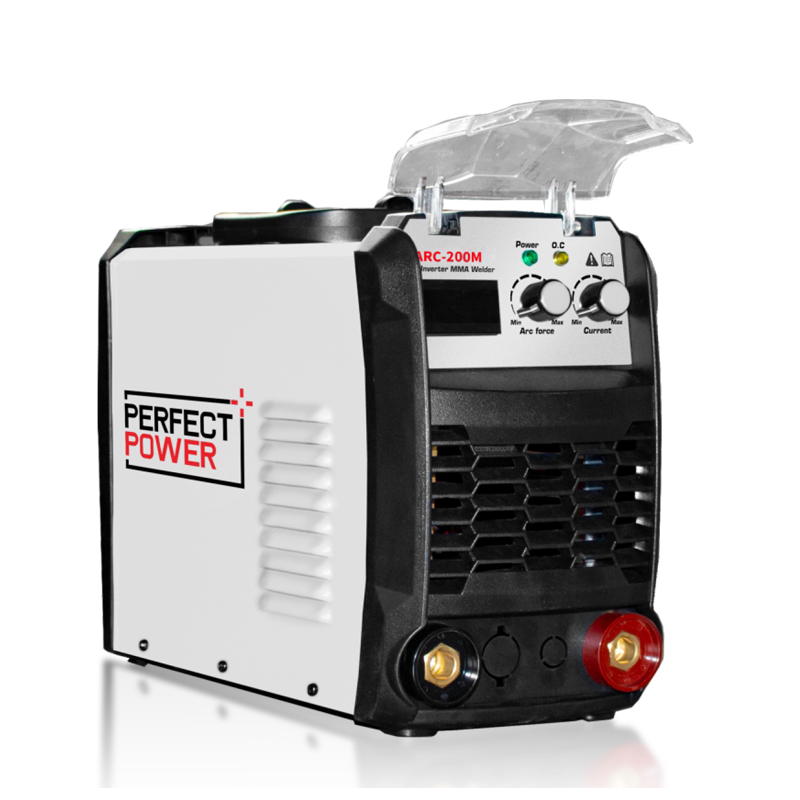

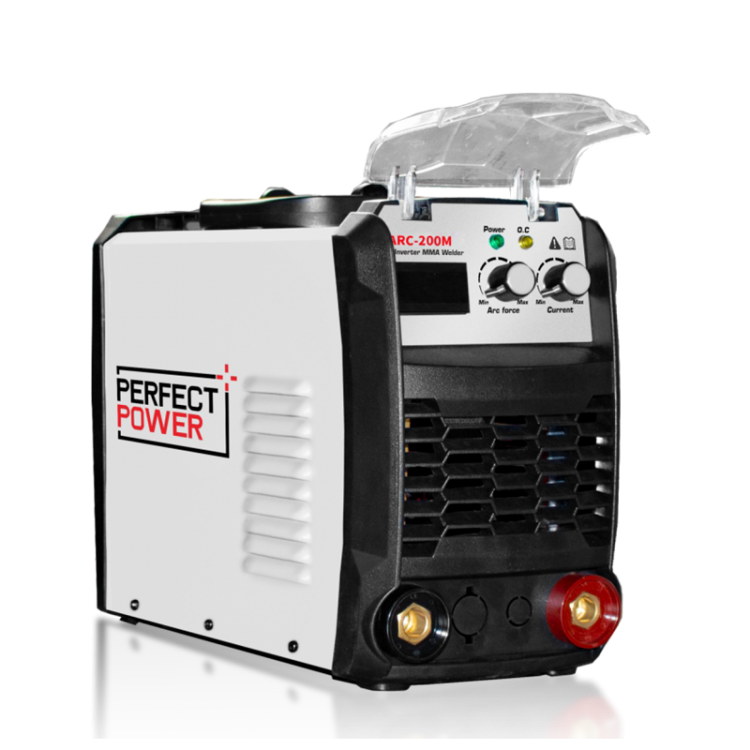

ARC-200M Stick Welder

Portable. Professional. Rugged. Affordable.

ARC-200M stick welder is a rectifier incorporating the most advanced inverter technology. The stick welding machine source can offer a more reliable, more concentrated, and more stable arc. When the stick and work-piece shorten, the response will be quicker. It features 110/220V auto reconnect operation and can operate from a portable generator.Arc Force, Anti-Stick and Hot Start technology enable easy arc starting, arc stability and smooth welding.

In Stock

ARC-200M stick welder is a rectifier incorporating the most advanced inverter technology. The stick welding machine source can offer a more reliable, more concentrated, and more stable arc. When the stick and work-piece shorten, the response will be quicker.

ARC-200M mma welder uses a variety of electrodes, such as acid electrodes, alkaline electrodes, and cellulose electrodes (6010, 6011, 6013, 6014, 7014, 7018, etc.). This stick welder is an extremely lightweight welder, that can be used almost anywhere. It even includes a hand grip for ultimate portability. This versatile welder works as hard as you do, handling mild steel, cast iron and hard surfacing. Includes Arc Welder Machine, Copper Electrode Holder, Ground Clamp, Protection Mask, Brush/Chipping Hammer.

Features:

1. Compact design, lightweight, but robust.
2. User-friendly and cost-effective.
3. Arc Force, Anti-Stick and Hot Start technology enable easy arc starting, arc stability, and smooth welding.
4. Overload protection. You can just plug and then weld with a complete accessory set: MMA welding cable, earth cable, welding mask and steel brush.

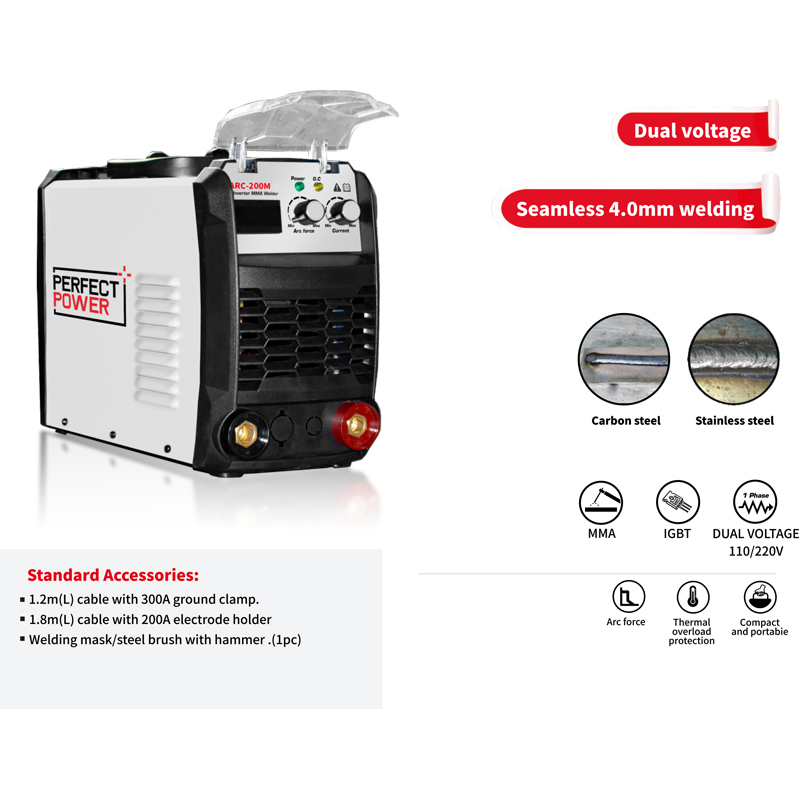

What’s Included:

(American plug)
American plug adaptor
1.2M(L) 16mm² cable with 300A ground clamp
1.8M(L) 16mm² cable with 200A electrode holder
Welding mask & steel brush with hammer

Power input AC(V)

1ph 110V/220V ±15%

Power input frequency(Hz)

50/60 Hz

Max. Load Power Capacity(kVA)

8.2kVA

Rated current input(A)

54.6A

Rated output current(A)/voltage(V)

180A/27.2V

Welding current range(A)

20~180A

Open circuit voltage DC(V)

62V

Rated duty cycle(%)

35%

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

465*270*330 mm

N.M./G.W.(kg)

7.0kg/8.7kg

Recommend Electrode(mm)

1.6~5.0 mm

Thickness of welding material(mm)

Steel/Carbon Steel:1.5~12.0 mm
Stainless Steel:1.5~12.0 mm
Nickel:1.5~12.0 mm
Cast Iron:1.5~12.0 mm

Welding Process

MMA
