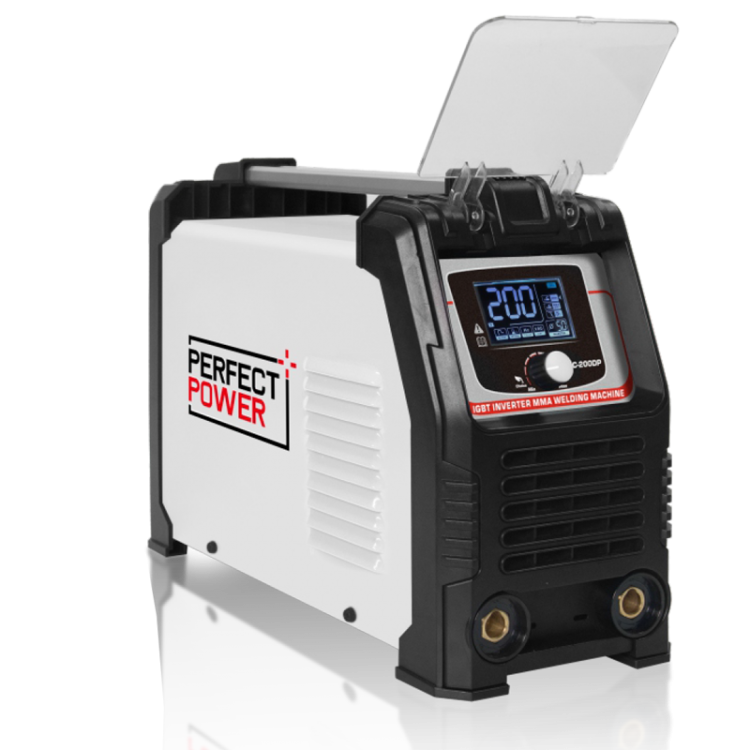

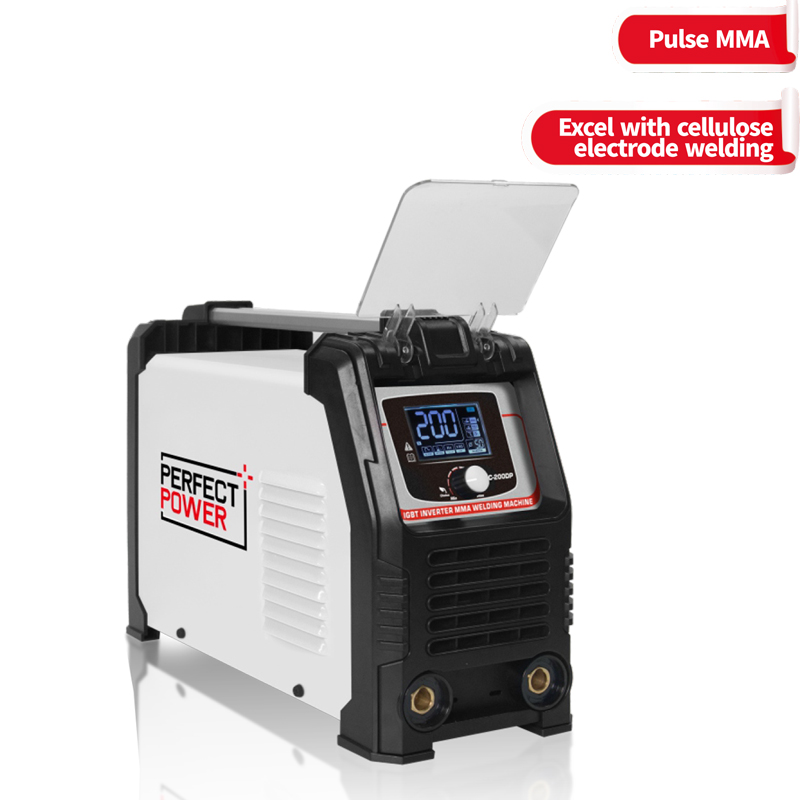

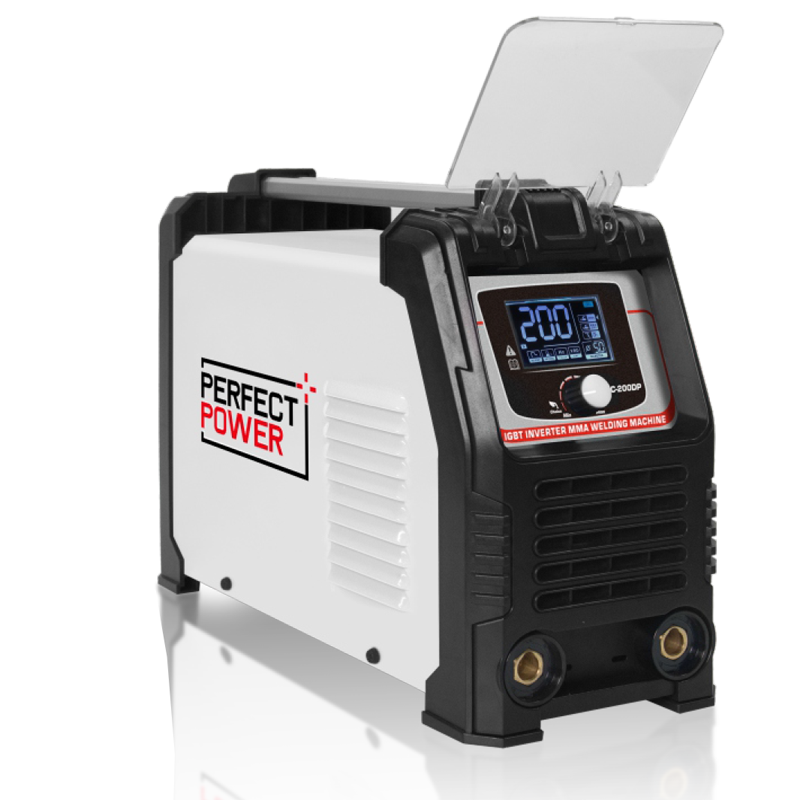

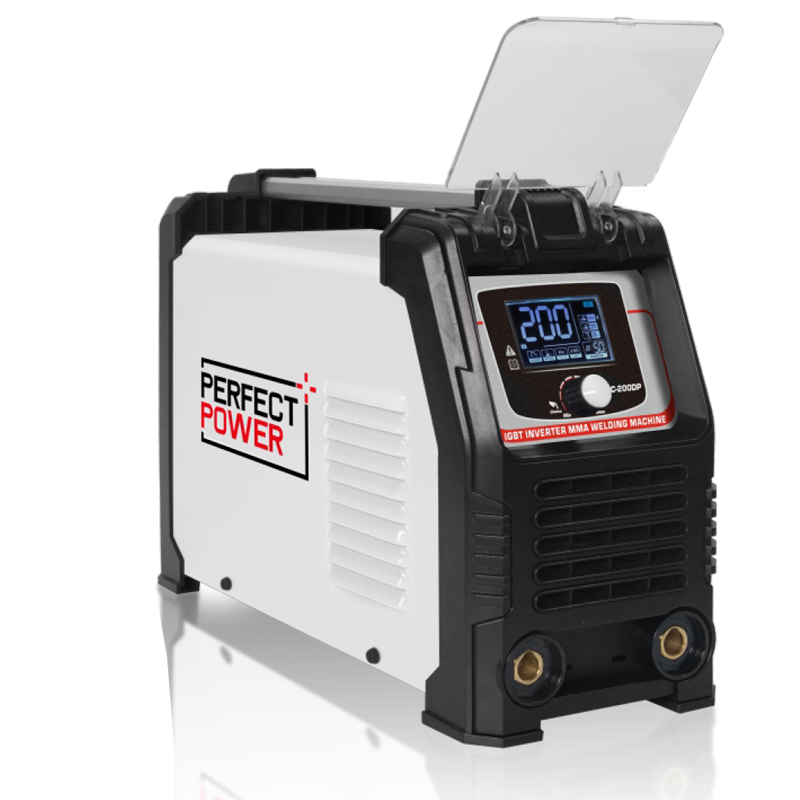

ARC-200DPS Stick Welder

Portable. Professional. Rugged. Affordable.

ARC-200DPS stick welder is lightweight and portable for stick and DC TIG welding.The ARC-200DPS stick welder offers much more than you would expect from a stick welding machine this size. Weighing in at just under 7.1 kg the ARC-200DPS MMA welder is no lightweight contender. It packs the full punch of a heavyweight professional that you can take to the most demanding job sites. It features 110/220V auto reconnect operation and can operate from a portable generator.

In Stock

The ARC-200DPS pulsed stick welder offers much more than you would expect from a stick welding machine this size. Weighing in at just under 7.1 kg the ARC-200DPS pulsed MMA welder is no lightweight contender. It packs the full punch of a heavyweight professional that you can take to the most demanding job sites. It features 110/220V auto reconnect operation and can operate from a portable generator.

Features:

1. Both MMA, pulsed MMA, and lift TIG function.
2. Pulsed MMA welding can stir the molten pool more evenly, avoid porosity, and make the welding firm, and deep penetration.
3. High-resolution LCD screen help adjust welding parameter.
4. Long-time continuous welding of 5.0mm electrode.
5.71V open circuit voltage ensures smooth cellulose electrode(E6010/E6011) welding.
6. MMA mode with adjustable VRD control, guarantees operator safety.
7. External adjustable hot start and arc force.
8. Smart cooling and heating protection.

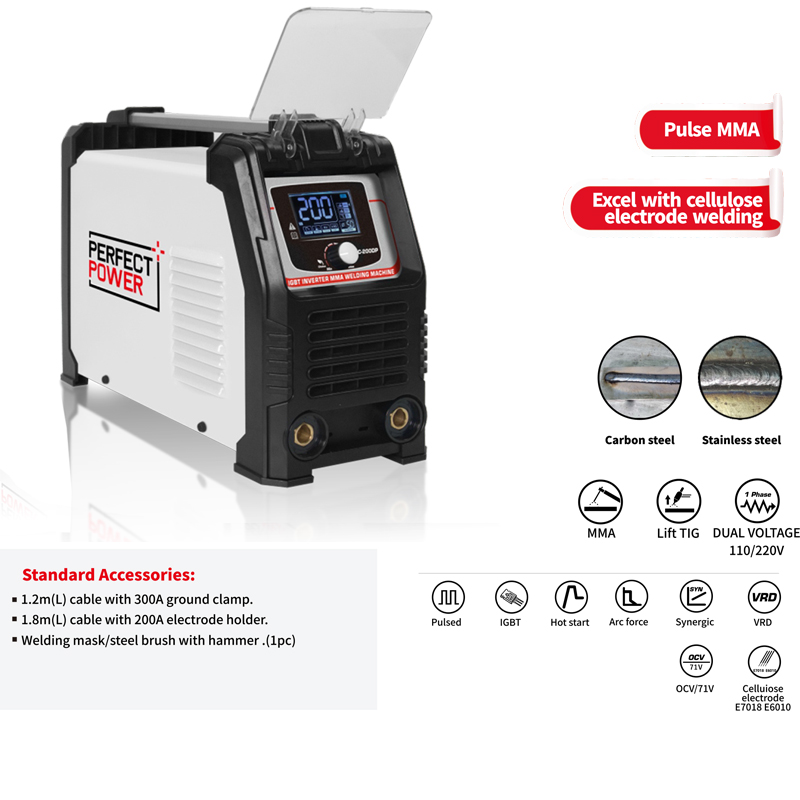

What’s Included:

1.8M(L) 3*2.5mm² Power Cable
1.2M(L) 20mm² cable with 300A ground clamp 35-50
1.8M(L) 20mm² cable with 300A electrode holder 35-50
mask、Brush&hammer
American plug adaptor (big size)

Power input AC(V)

1ph 110V/220V ±15%

Power input frequency(Hz)

50/60 Hz

Max. Load Power Capacity(kVA)

5.1kVA(110V)/ 8.0kVA(220V)

Rated current input(A)

46.5A(110V)/ 36.4A(220V)

Rated output current(A)/voltage(V)

140A/25.6V (110V) / 200A/28.0V (220V)

Welding current range(A)

20-140A (110V) / 20-200A (220V)

Open circuit voltage DC(V)

71V

Rated duty cycle(%)

60%

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

465*225*320 mm

N.M./G.W.(kg)

7.1kg/7.6kg

Recommend Electrode(mm)

1.6~5.0 mm

Thickness of welding material(mm)

Steel/Carbon Steel:1.5~12.0 mm
Stainless Steel:1.5~12.0 mm
Nickel:1.5~12.0 mm
Cast Iron:1.5~12.0 mm

Welding Process

MMA / Lift-TIG
