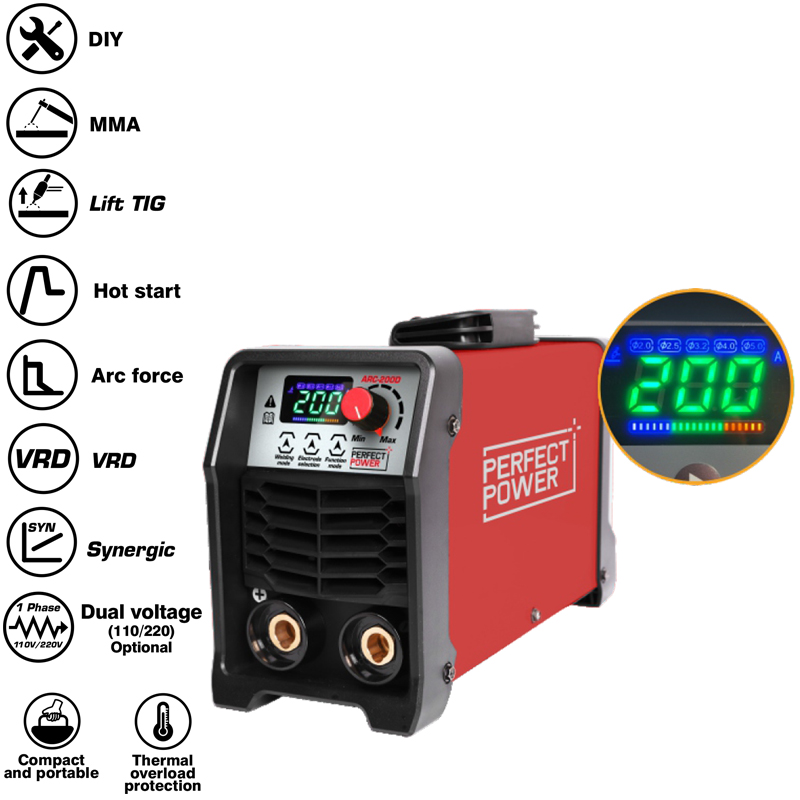

1. Both MMA and lift TIG function.
2. Intelligent visual operation instruction makes your work easy.
3. Digital controlled, compact
design, portable but robust.
4. User-friendly and cost-effective.

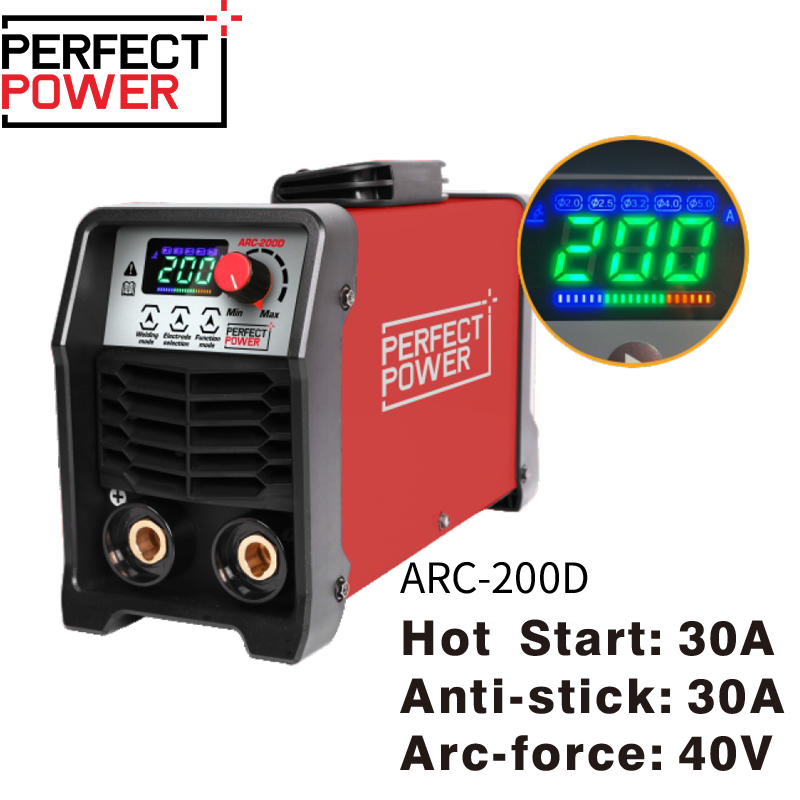

5. Adjustable Arc Force, Anti-Stick and Hot Start technology
enable easy arc starting, arc stability, and smooth welding.
6. Overload protection.
Advanced IGBT inverter technologyCompatible with various types of metalSmooth arc for easier welding| Model | ARC-200D |
|---|---|
| Power input AC(V) | 1pH 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 9.4 |
| Rated current input(A) | 42 |
| Rated output current(A)/voltage(V) | 200/28.0 |
| Welding current range(A) | 20-200 |
| Open circuit voltage DC(V) | 62 |
| Rated duty cycle(%) | 50 |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 460*150*260 |
| N.W(kg) | 5 |
Brochure
ARC-200D ARC Welder Video
