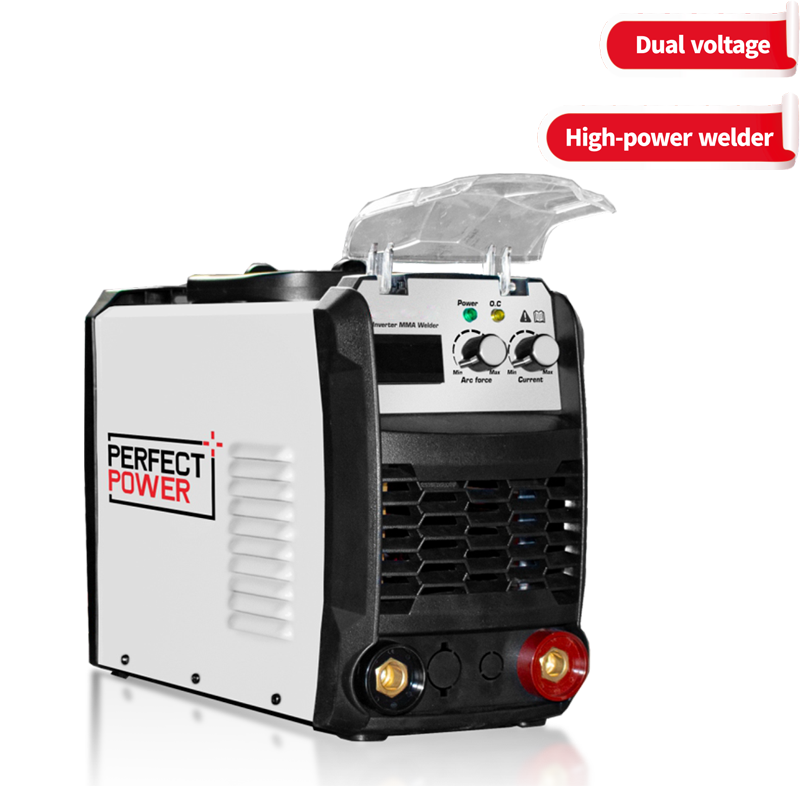

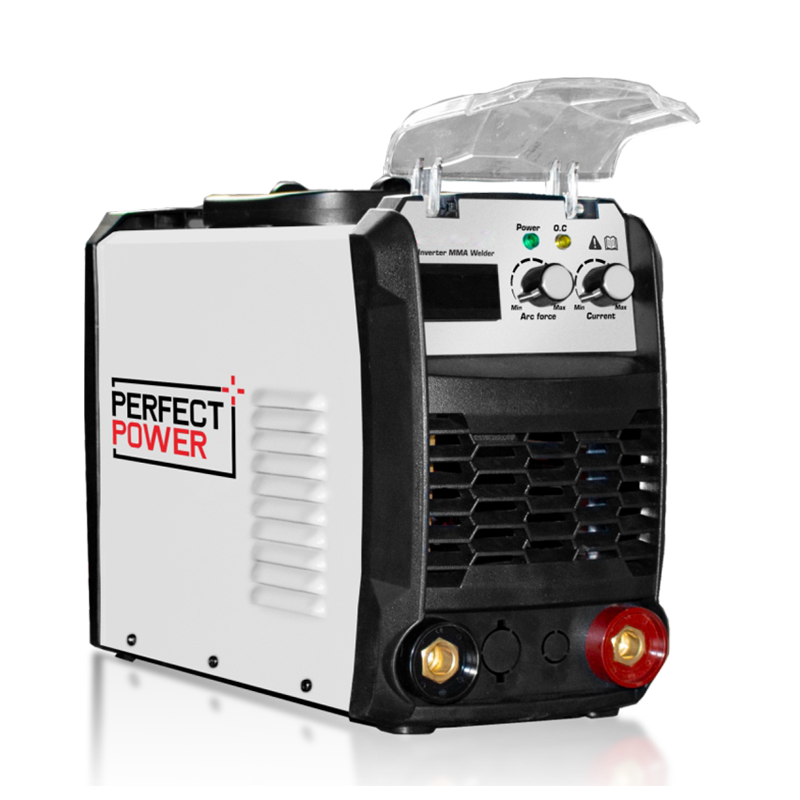

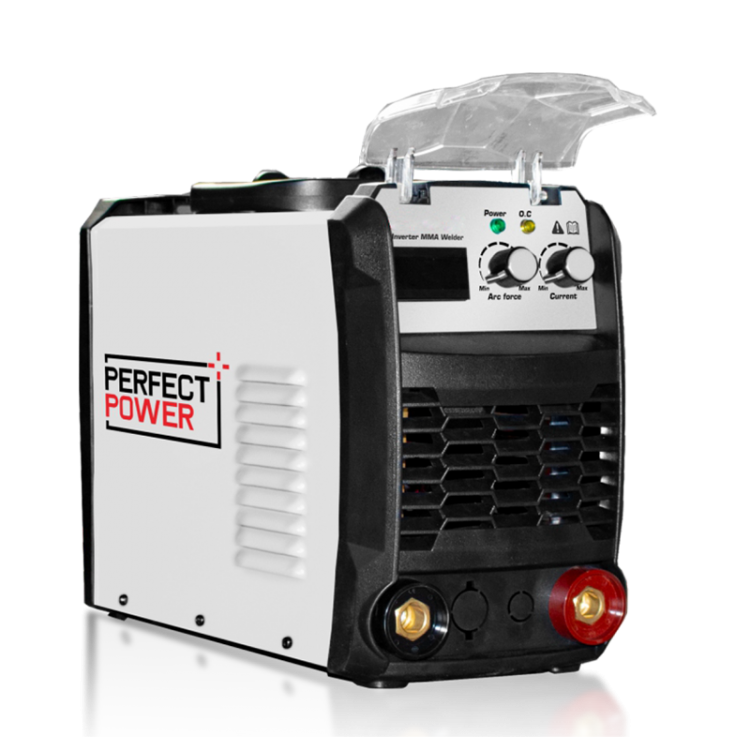

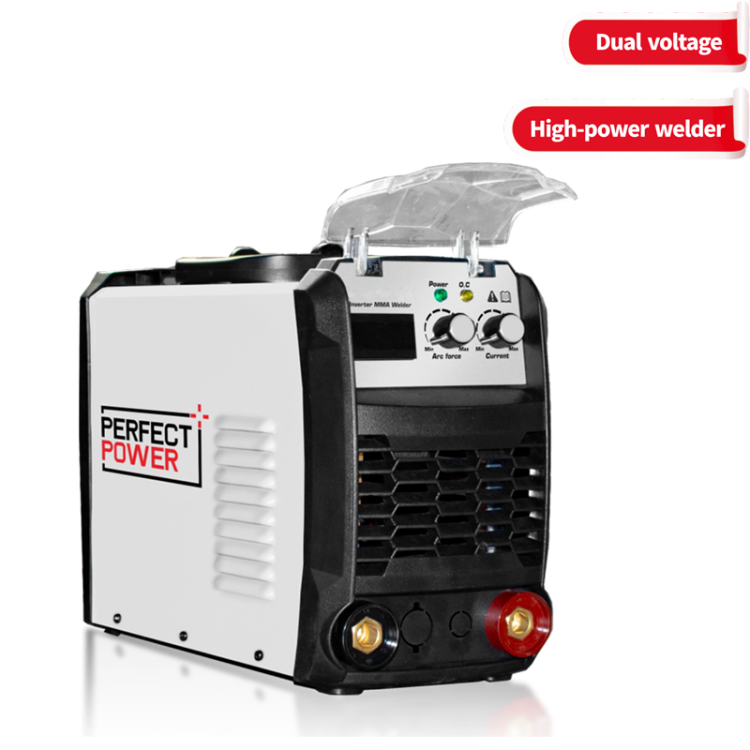

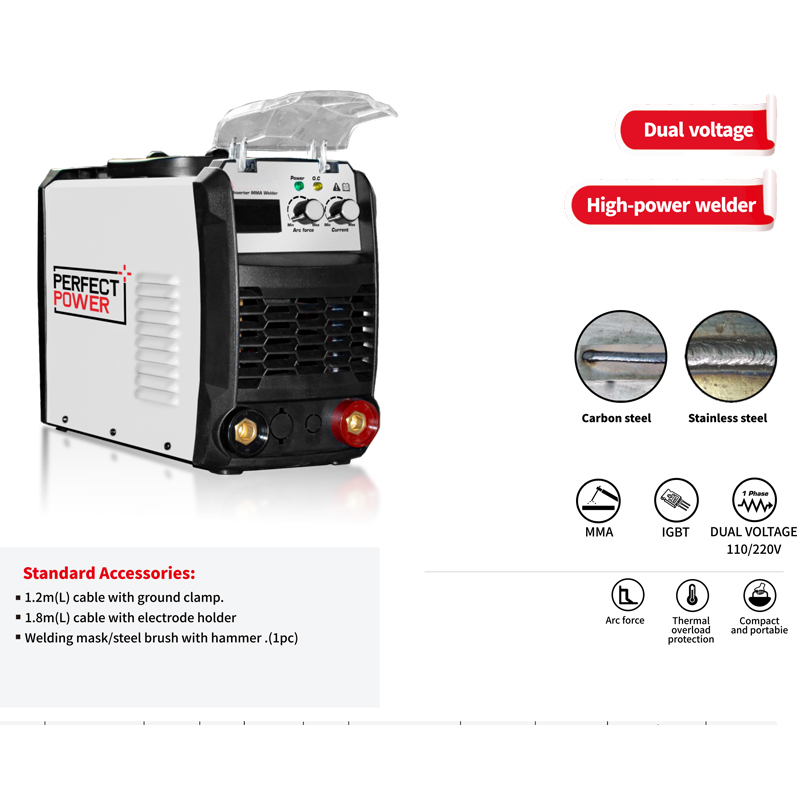

ARC-140 Stick Welder

Portable. Professional. Rugged. Affordable.

The ARC-140 stick welder is the perfect stick welder for hobbyists, repair people, and welding enthusiasts, at 4.6kg. This MMA welding machine will push and weld 6013 and 7018 stick welding rods without a problem. This MMA welder is perfect to have in any household as a general purpose welder. It features 110/220V auto reconnect operation and can operate from a portable generator.Arc Force, Anti-Stick and Hot Start technology enable easy arc starting, arc stability and smooth welding.

In Stock

The ARC-140 stick welder is the perfect stick welder for hobbyists, repair people, and welding enthusiasts, at 4.6kg. This MMA welding machine will push and weld 6013 and 7018 stick welding rods without a problem. This MMA welder is perfect to have in any household as a general purpose welder. It features 110/220V auto reconnect operation and can operate from a portable generator.Arc Force, Anti-Stick and Hot Start technology enable easy arc starting, arc stability and smooth welding.

Features:

1. Compact design, lightweight, but robust.
2. User-friendly and cost-effective.
3. Arc Force, Anti-Stick and Hot Start technology enable easy arc starting, arc stability, and smooth welding.
4. Overload protection. You can just plug and then weld with a complete accessory set: MMA welding cable, earth cable, welding mask and steel brush.

What’s Included:

(American plug)
American plug adaptor
1.2M(L) 16mm² cable with 300A ground clamp
1.8M(L) 16mm² cable with 200A electrode holder
Welding mask & steel brush with hammer

Power input AC(V)

1ph 110V/220V ±15%

Power input frequency(Hz)

50/60 Hz

Max. Load Power Capacity(kVA)

5.8kVA

Rated current input(A)

43.6A

Rated output current(A)/voltage(V)

120A/24.8V (110V) / 140A/25.6V (220V)

Welding current range(A)

20-120A (110V) / 20-140A (220V)

Open circuit voltage DC(V)

56V

Rated duty cycle(%)

35%

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

465*270*330 mm

N.M./G.W.(kg)

3.8kg/4.6kg

Recommend Electrode(mm)

1.6~3.2 mm

Thickness of welding material(mm)

Steel/Carbon Steel:1.5~4.0 mm
Stainless Steel:1.5~4.0 mm
Nickel:1.5~4.0 mm
Cast Iron:1.5~4.0 mm

Welding Process

MMA
