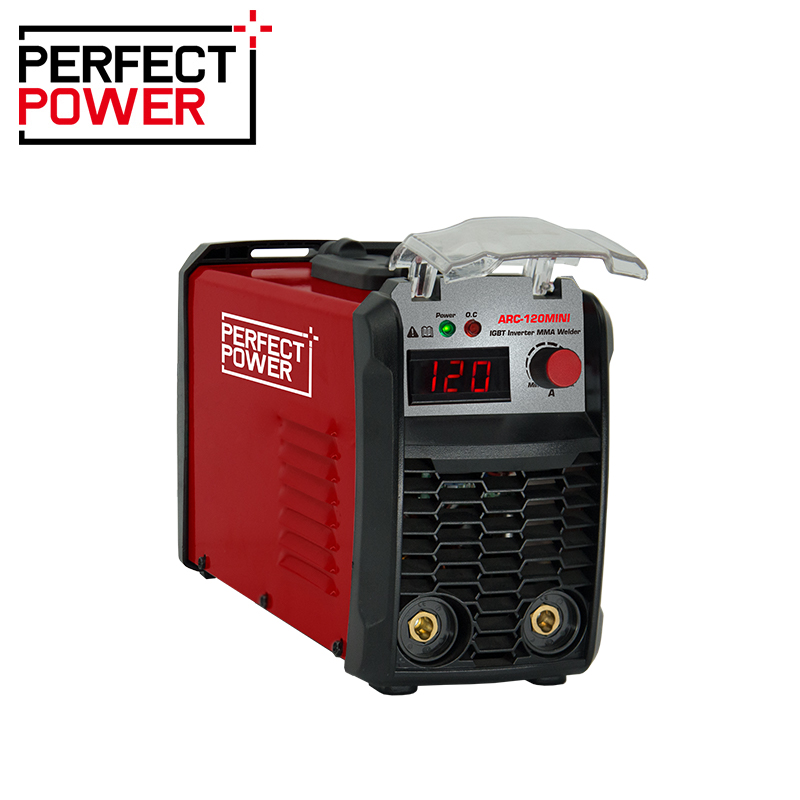

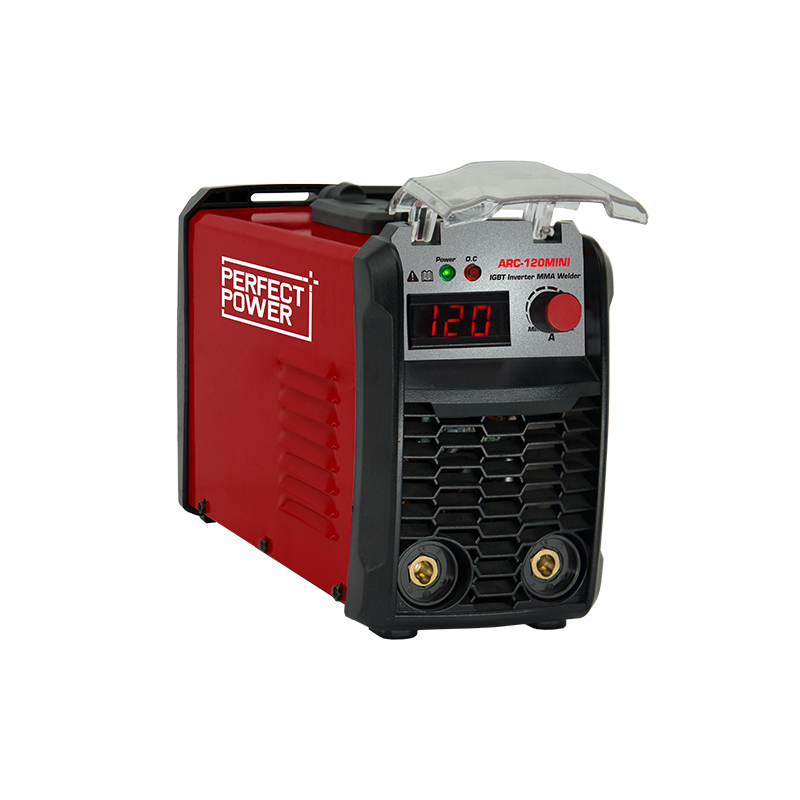

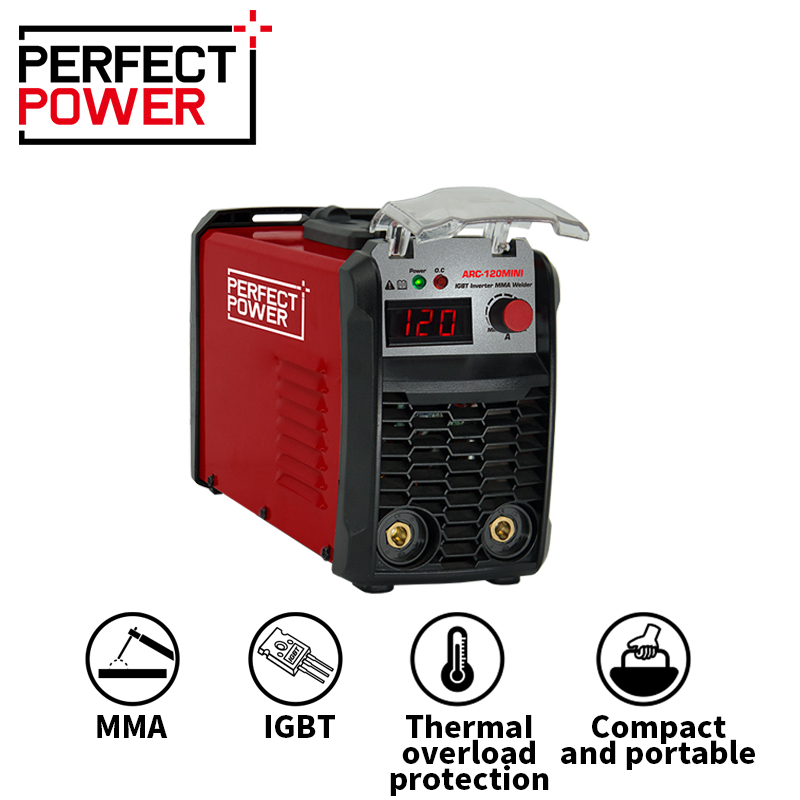

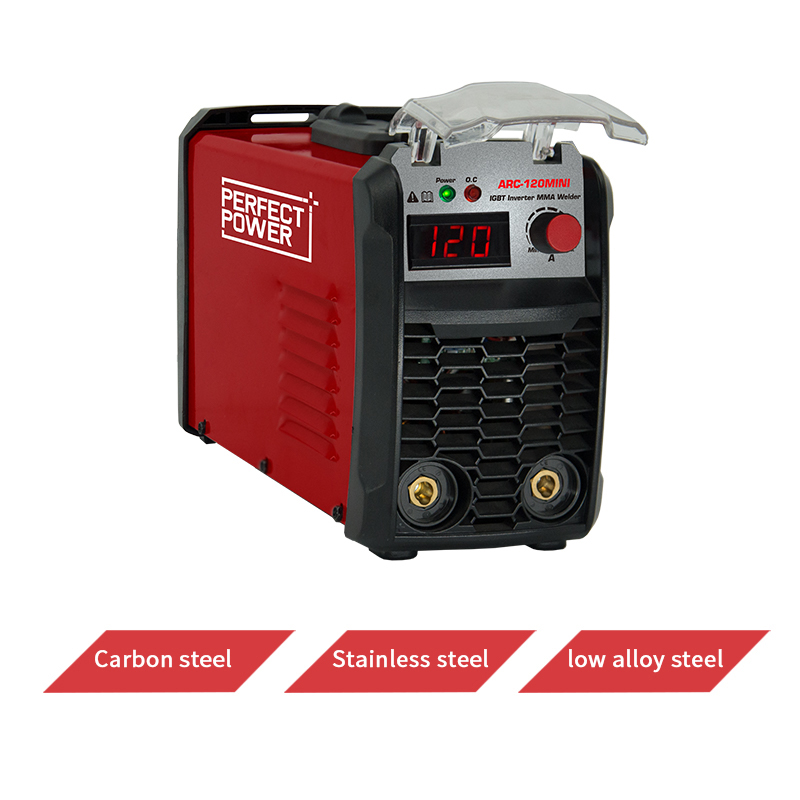

ARC-120MINI ARC Welder

Don’t let the pros have all the fun. The ARC-120 MINI MMA welder is the perfect STICK welder to get you up and running. Packed with all the features you need for STICK welding, this is the welder that proves you don’t need to break the bank for a decent machine. Better yet, it comes with the pioneering build quality is recognised for throughout the industry.

In Stock

Don’t let the pros have all the fun. The ARC-120 MINI MMA welder is the perfect STICK welder to get you up and running. Packed with all the features you need for STICK welding, this is the welder that proves you don’t need to break the bank for a decent machine. Better yet, it comes with the pioneering build quality is recognised for throughout the industry.

1. Small size, light weight, and high efficiency; easy to move, especially suitable for occasions of high mobility and working at heights
2. The Advanced control technology is used to meet various welding applications and greatly improve welding performance.
3. User-friendly and cost effective.
4. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.

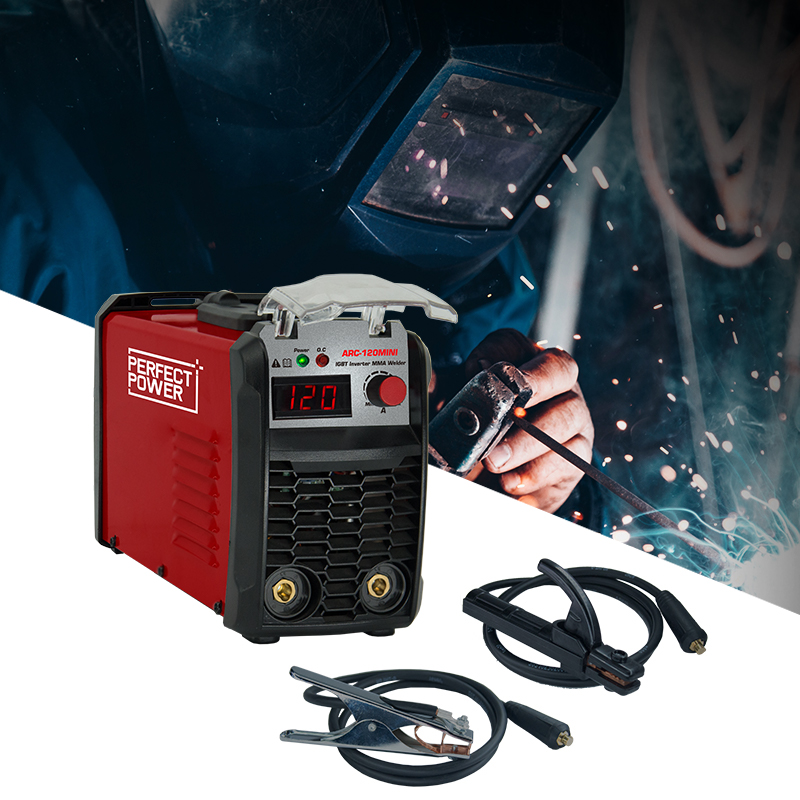

5. You can just plug and then weld with a complete accessory set : MMA welding cable, earth cable, welding mask and steel brush.

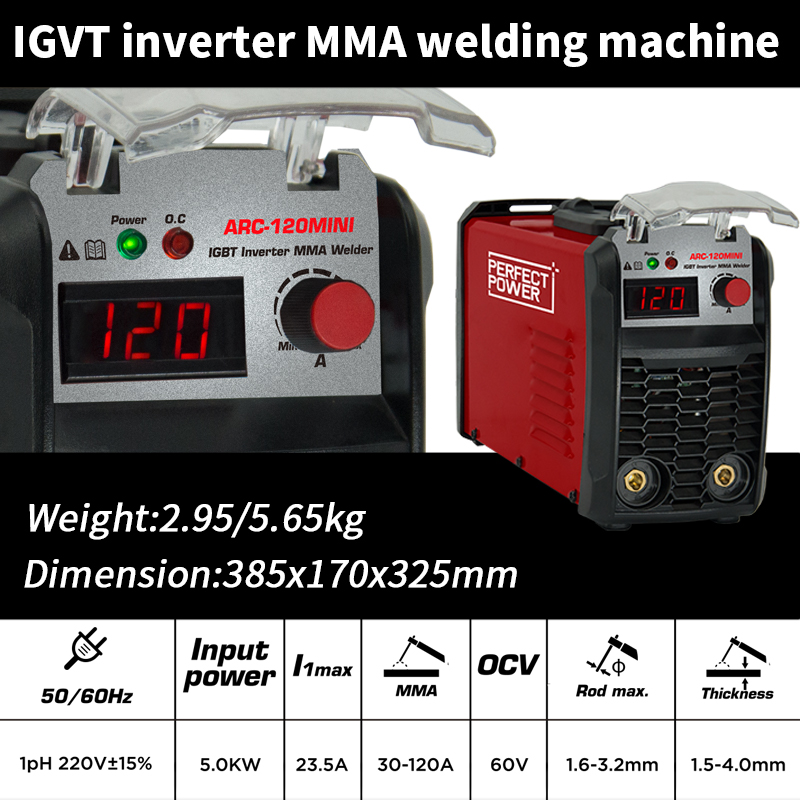

Model

ARC-120MINI

Power input AC(V)

1pH 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

5.0

Rated current input(A)

23.5

Rated output current(A)/voltage(V)

120/24.8

Welding current range(A)

30~120

Open circuit voltage DC(V)

60

Rated duty cycle(%)

35

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

385*170*325

N.M./G.W.(kg)

2.95/5.65
