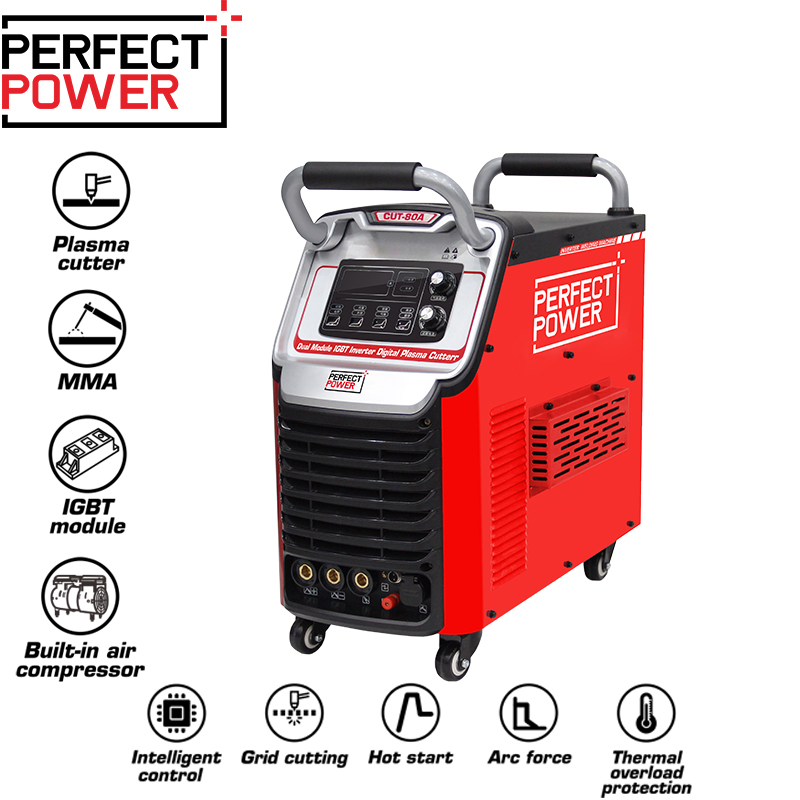

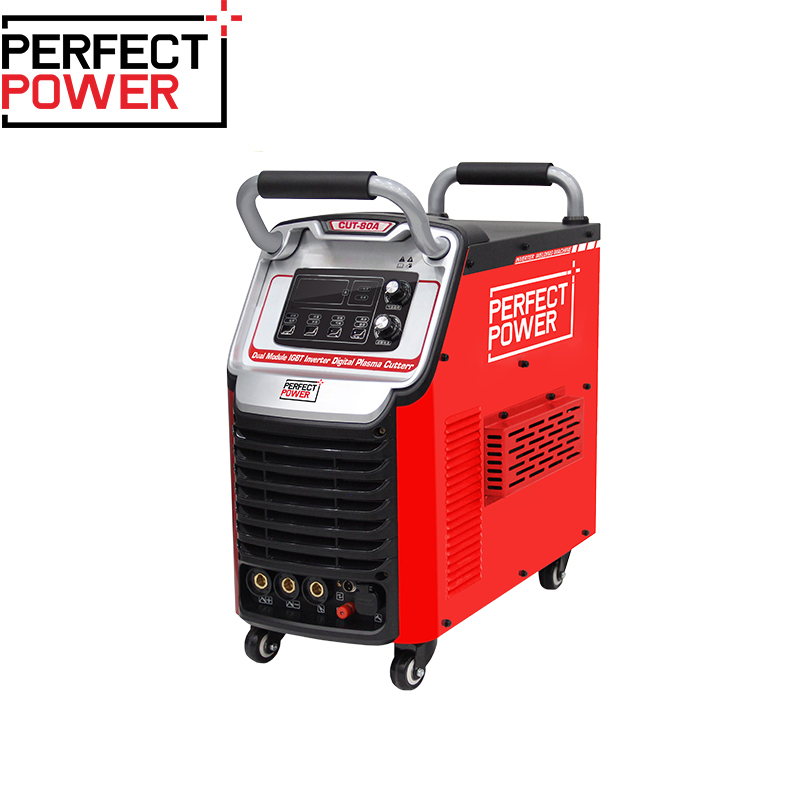

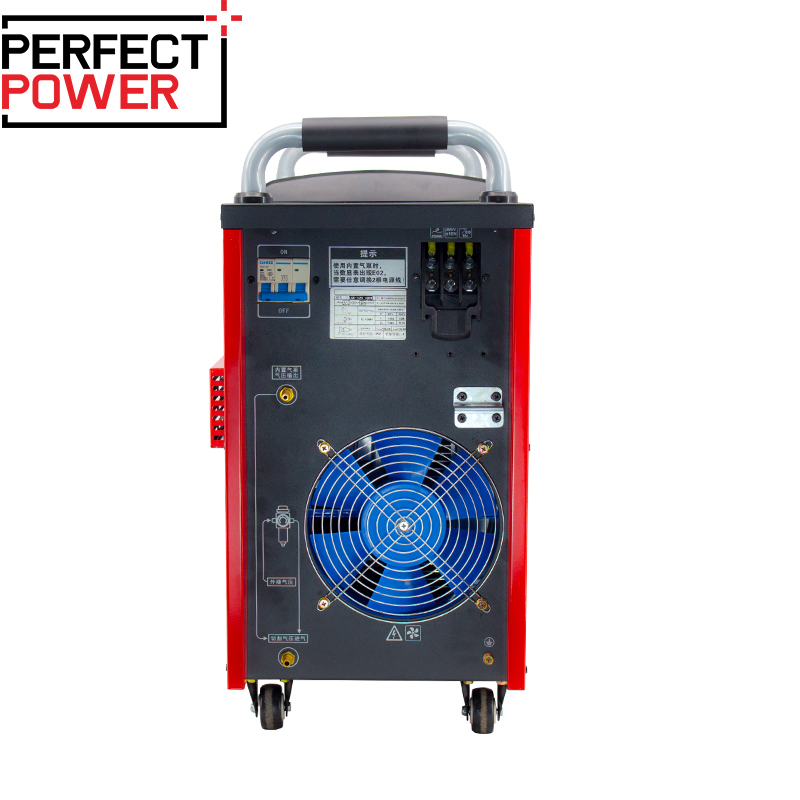

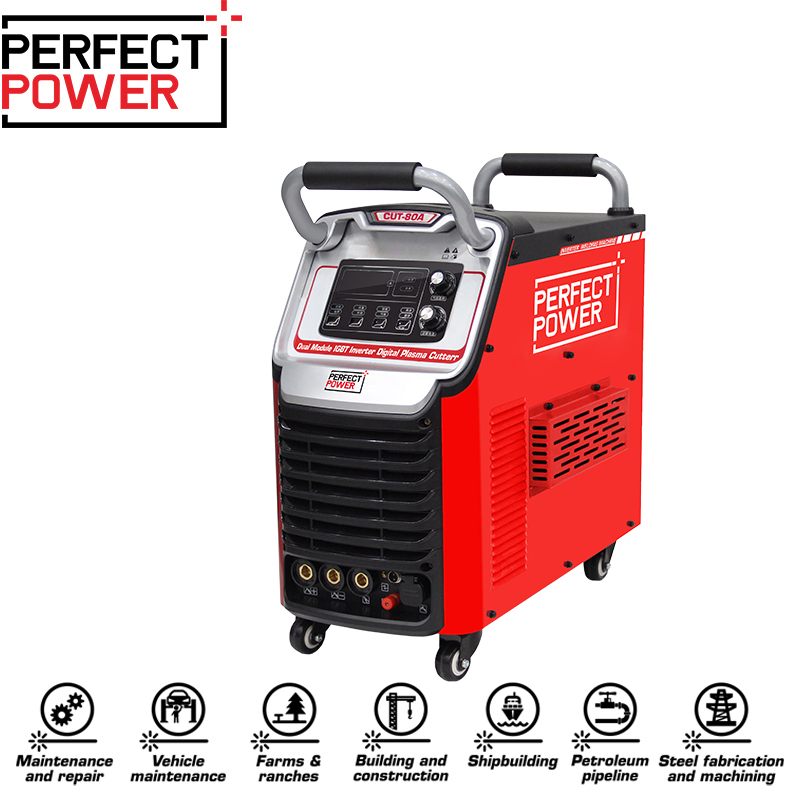

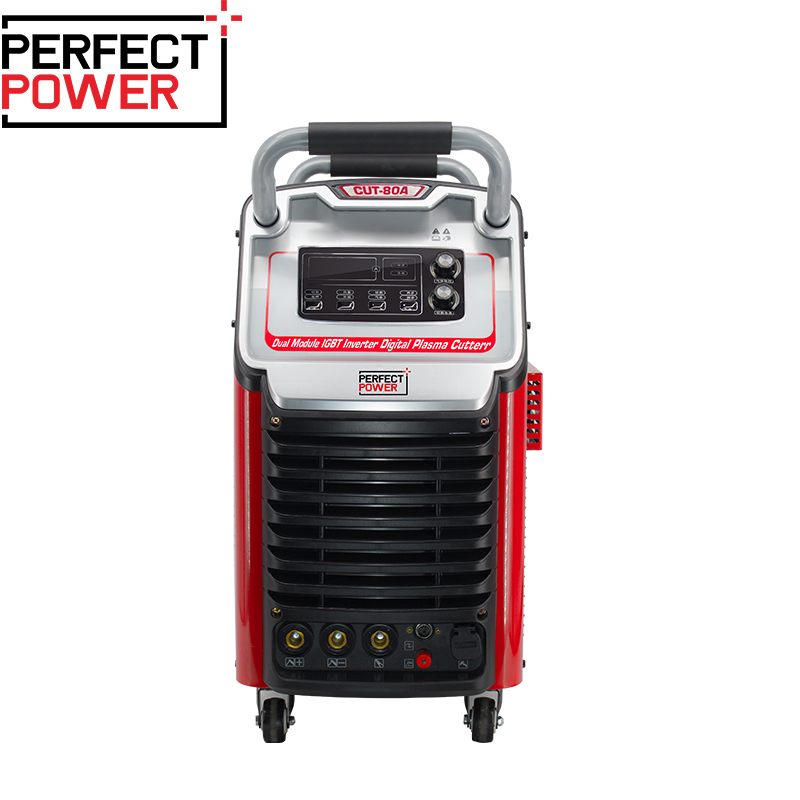

1. Multifunction Plasma cutter for industrial use: CUT&MMA.

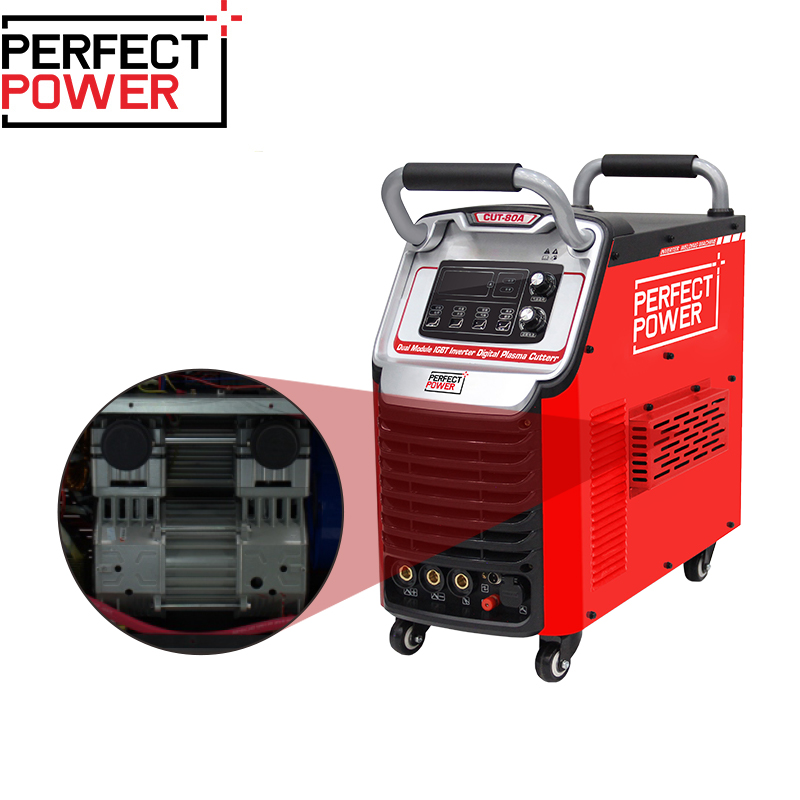

2. Quick switch between built-in and external air pump.
3. 2-3times faster than the Oxyacetylene cutting speed with significant benefits of less deformation, low costs, and high efficiency.
4. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
5. Powerful cutting capacity, narrow cutting seam, and clean cutting edge.
6. Pilot arc starting increases cutting capability and cutting speed, improving the service life of the torch kit.
7. Operation safety protection against over-voltage, low-voltage, over-current and over-heated. 8. Heavy-duty cycle for industrial use.
| Model | CUT-80A |
|---|---|
| Power input AC(V) | 3pH 380V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity | 14 kVA |
| Rated current input(A) | 21.5 A |
| Rated output current(A)/voltage(V) | 80 A/112V |
| Max. cutting current (A) | 80 A |
| Open circuit voltage DC(V) | 285 V |
| Rated duty cycle(%) | 60 |
| Max.cutting thickness(mm) | 30 MM |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 710*385*680 MM |
| Weight (KG) | 55/58 |
