1. Industrial grade IGBT module adopted.
2. Multifunction welder for industrial use: MIG/MAG, Gasless flux cored wire welding, and MMA.
3. 20kg wire spool capability for heavy industrial use.

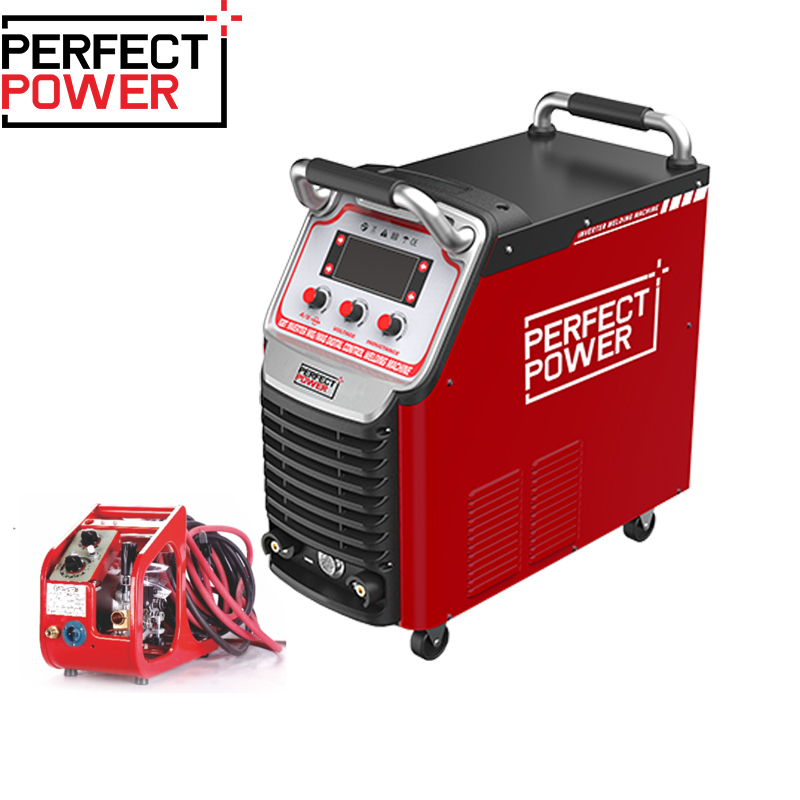

4. Portable separated wire feeder with control cables and control keys, can be carried to perform distance welding work.
5. Full digital control system, welding parameters can be adjusted independently; Stable arc output, superior welding quality. 6. High efficiency and duty cycle, and no noise from arc welding rectifier.
7. Less spatter and high metal deposition rate; nice welding bead and less deformation.
8. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
9. Heavy-duty cycle for industrial use.
| Model | MIG-350I |
|---|---|
| Power input AC(V) | 3ph 380V ±10% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 15 kVA MIG welding machine |
| Rated current input(A) | 22.8 A |
| Rated output current(A)/voltage(V) | 350/31.5(MIG), 350/34.0(MMA) |
| Welding current range(A) | 60-350(MIG), 40-350(MMA) |
| Open circuit voltage DC(V) | 67 V |
| Rated duty cycle | 60% |
| Wire Feeding Speed(M/min) | 2～18 |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 710*385*680 |
| Weight (KG) | 26/28 |
| Wire Melting Type | spray transfer |
