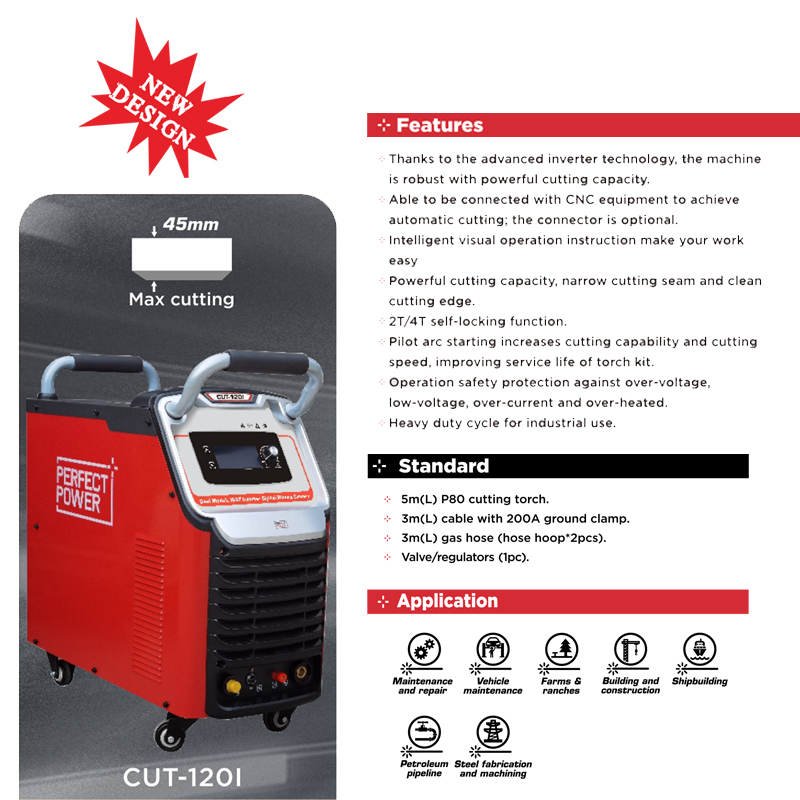

1. Thanks to the advanced inverter technology, the machine is robust with powerful cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
3. Intelligent visual operation instruction makes your work easy
4. Powerful cutting capacity, narrow cutting seam, and clean cutting edge.
5. 2T/4T self-locking function.
6. Pilot arc starting increases cutting capability and cutting speed, improving the service life of the torch kit.
7. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
8. Heavy-duty cycle for industrial use.
| Model | CUT-100I |
|---|---|
| Power input AC(V) | 3pH 380V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity | 16.5 kVA |
| Rated current input(A) | 25.5 A |
| Rated output current(A)/voltage(V) | 100 A/120V |
| Max. cutting current (A) | 100 A |
| Open circuit voltage DC(V) | 300 V |
| Rated duty cycle(%) | 60 |
| Max.cutting thickness(mm) | 40 MM |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 740*405*710 MM |
| Weight (KG) | 37/39 |
