Welding aluminum has always been challenging due to its unique properties. Stick welding, also known as shielded metal arc welding (SMAW), is often the least preferred method due to its potential for unexpected benefits and untidy work.

Stick welding is still a practical technique for welding aluminum, nevertheless. Therefore, we go into the science of stick welding aluminum in this article, revealing the crucial hints, methods, and strategies that may turn this intimidating work into a doable and efficient procedure.

Can You Stick Weld Aluminum?

The short answer is that stick welding is a modest and mostly unknown technique for welding aluminum due to the extremely untidy results it produces. Aluminum is frequently used for its aesthetic qualities; stick/arc welding cannot provide the same effects as TIG welding or pulsed MIG welding.

Furthermore, thin metal is not a good candidate for stick welding. For metal smaller than 1/8″, stick welding using aluminum welding rods is typically not advised. The fact that aluminum is often supplied in thin sheets may cause problems.

However, let’s say you don’t have access to a spool gun MIG welder or an AC TIG welder. If so, you can do routine maintenance on thick aluminum and do sporadic repairs with your stick welding equipment. It may be utilized in a restricted number of circumstances for remote work, maintenance, and repairs.

How To Stick Weld Aluminum?

Stick welding aluminum may be a difficult process with unexpected outcomes, but if you follow the appropriate procedures, you can get good welds and gratifying results. You will need to practice your welding skill, have the right equipment, clean up after yourself, and prepare the weld properly. You can produce sounds and long-lasting welds on metal using stacked dimes, but don’t anticipate TIG-like results.

Aluminum Pieces Preparation

It’s necessary to prepare the weld properly before you begin sticking metal together. You must remove the oxide first since the melting temperatures of aluminum and its oxide differ. Using a special stainless steel brush is the way to achieve this. Make sure you have one brush specifically for aluminum, as the mild steel brush has the potential to contaminate surfaces.

Recall that the oxide layer builds rapidly upon oxygen exposure. As a result, you shouldn’t wait too long to begin welding. Additionally, stay away from utilizing grinders as they can actually thicken the oxide layer on aluminum instead of removing it.

You’ll also want an appropriate component fit-up. Nothing that might compromise the integrity of the weld or create extra gaps that call for more filler metal is what you want.

Stick Electrode For Aluminum

An appropriate rod is required in order to stick weld aluminum. Aluminum alloys may be arc welded using the E4043 all-purpose electrode. Low temperatures don’t cause much fuming or splatter since the arc is steady. The diameter of these electrodes is typically 1/8″, and they need an amperage of 80 to 135. They are available in a range of diameters, from 5/32″ to 3/32″.

These electrodes are designed for flat, horizontal, and vertical applications, however their applicability might vary depending on the manufacturer. If you want to buy any, make careful to verify the criteria first because some of them function with DCEN but the majority require DCEP polarity.

Although E4043 aluminum stick electrodes result in a consistent arc and little spatter, keep in mind that their cost is more than that of standard steel electrodes. You should budget more for them because they too have a tendency to burn quickly. Usually, these electrodes are hygroscopic, meaning they take up water from their environment. Thus, if improperly kept, the flux will get wet and sticky.

Check Your Stick Welder

Stick welding machines for aluminum often don’t require specialized features or power options, in contrast to other techniques. All you have to do is make sure your welder has an adjustable amperage that corresponds to the electrode’s size and the manufacturer’s recommendations.

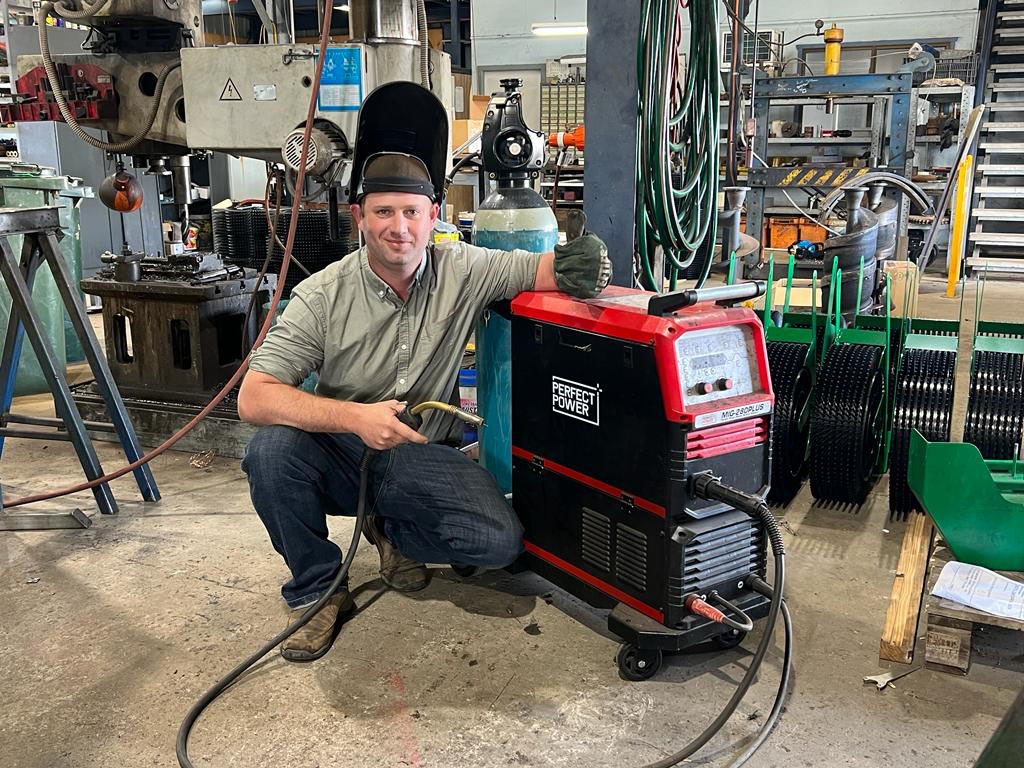

A variety of aluminum work may be handled by devices like the MIG-280PLUS Multi-process Welder machine. Because aluminum has a high heat conductivity, it includes built-in characteristics like arc force and hot start to assist you deal with it. Aluminum demands a high heat, thus the high end of amperage is appropriate.

Keep in mind that you may need to experiment with the welder settings until you achieve the desired results. Unlike steel, stick welding aluminum is not as widespread, hence online calculations are not as common. Work your way up to the greatest results by starting with the manufacturer-recommended amperage shown on the electrode box.

Stick Aluminum Welding Technique

Aluminum’s thermal characteristics allow heat to be released from the welding connection quickly, which causes the weld puddle to solidify considerably faster than it would with steel. Therefore, to properly stick weld aluminum, you must maintain a short arc and move quickly.

When traveling at an excessively slow pace, metal can have two problems. The puddle may solidify too soon and cause the electrode to adhere to the joint, or you may apply too much heat and burn through the parts. If you go too quickly, though, you may not get the right fusion and penetration, therefore as a novice, you will need to invest some time in perfecting your stick aluminum welding method.

Small, straight lines are often what you want to preserve on thinner or medium-thick metal. Weaving may be required for thicker parts, but it will create a loss of vital heat in the joint, preventing fusion and penetration. Maintain the tip’s proximity so that you can feel the electrode’s flux pulling the weld along.

Finishing The Weld And Cleaning

When stick welding aluminum, it is advised to travel more quickly, but you still need to exercise caution when finishing the weld. You can come across a flaw called a weld crater if your aluminum weld breaks. This flaw develops when the weld is completed too quickly without allowing the weld puddle to fill the weld’s end crater.

This is more than just a visual problem. It shows where your stick aluminum weld is weak. It is important to make sure the weld’s end is properly filled since this weak region might lead to joint fracture. In the event that a crater has already developed, you should softly grind it and redo the procedure.

Compared to steel, finishing the stick weld on aluminum will also require more cleaning. You will have to spend some time cleaning the spatter and, of course, the slag layer on top of the weld due to the nature of the flux and aluminum stick electrodes. Although they often come off with ease, the quantity is far more than with mild steel welding.

Potential Issues When Stick Welding Aluminum

Now that you have finished and cleaned your stick aluminum weld, it is time for inspection. Most issues that occur when stick welding are easily notable, so you will only need a visual inspection to notice cracks, burn-through, or lack of fusion.

The most common issues that occur when stick welding aluminum are:

• Burn-through, warping, or distortion: Stick welding thin aluminum sheets increases the likelihood of distortion, warping, and burn-through. Aluminum needs a greater heat requirement, but too much heat will soon burn the holes in the material or twist or bend the components around it.
• Cracking: Certain aluminum alloys may cause the aluminum weld puddle to crack when it solidifies. An aluminum base alloy’s vulnerability to cracks is mostly determined by its chemistry. But because of the heat, other factors, and the profile of the weld that stick welding produces, this problem is more prevalent.
• Poor Weld Aesthetics: In addition to its advantages, aluminum is a popular choice among welders due to its looks. You should anticipate clumsy and uneven welds while using stick welding. You won’t obtain stacked dimes like with TIG, despite the fact that aesthetics aren’t solely dependent on the mechanical and physical characteristics of the weld.
• Lack of fusion: Aluminum’s thermal properties necessitate careful heat management. Overheating the weld can result in burnthrough, whereas underheating the weld can result in insufficient fusion. It will take some time and experience to get everything just perfect with stick welding because it does not offer heat control as pulsed TIG and MIG welding do.
• Weld Crater: As previously mentioned, this flaw develops at the conclusion of the weld and is expected when running quickly, which is necessary when sticking welding aluminum. As a result, be sure to weld fast yet allow enough time at the end to allow the puddle to cover the joint.

Alternatives to Stick Welding Aluminum

Stick/Arc welding is a valid technique for connecting aluminum, however because of its disadvantages, most welders will choose MIG or TIG welding instead. Better heat control, increased cleanliness, improved aesthetics, and superior outcomes with thinner components are all provided by these two techniques.

MIG Welding Aluminum

MIG welding, also known as gas metal arc welding, is a semi-automated technique renowned for its adaptability and simplicity of usage. Beginners like MIG welding aluminum because it allows you to weld without expertise and yet produce respectable results. To ensure success, all you’ll need is a spool gun or a special liner that can feed the soft aluminum wire.

Recent years have seen the introduction of new features including pulse and double pulse MIG welding by MIG welding equipment like the MIG-250TD MIG Welder. Your MIG welder can produce TIG-like welds with double-pulse, and the best thing is that it’s not too difficult to do.

MIG welding is far simpler to operate and yields better-quality welds than stick welding. Better heat management and a more forgiving arc are what you get. Stick welding has an advantage over MIG welding in that shielding gas is not required.

TIG Welding Aluminum

If you require aluminum to be welded with excellent quality, cleanliness, professionalism, and aesthetic appeal, TIG welding is the way to go. It is only for more experienced welders since the skill requirements are comparable to those of stick welding. But if you get the hang of TIG welding, you can create some of the best aluminum welds possible.

TIG welding will need more fine-tuning and premium shielding gas than stick welding. The TIG-200 AC/DC TIG Welder is one of the devices that allows the welder to fine-tune adjustments and manage the heat thanks to its many features and controls. TIG welders are required to support AC current. You may stick weld in the meantime using a simple welder without many sophisticated capabilities. Stick and TIG results, however, cannot be matched to those on aluminum.

When Is A Stick Prefered Over MIG And TIG Welding Aluminum?

There are very few applications in which welders will use Stick welding to join aluminum pieces over MIG and TIG. Most commonly, Stick welding is prefered in:

• Outdoor and Remote Welding: In windy or outdoor settings when shielding gas for MIG or TIG may be interrupted, stick welding is more forgiving. Stick welding is a portable option for welders operating in rural areas with limited access to electricity and specialist equipment.
• Thicker Aluminum Materials: Stick welding can offer deeper penetration and higher travel rates than TIG welding, making it more appropriate for thicker aluminum materials (usually 1/8 inch or thicker).
• Maintenance and Repair Work: When it comes to on-site maintenance and repairs, stick welding may be the preferred method. You can easily fix minor projects or work on thicker aluminum using a stick welder instead of using more complicated MIG or TIG equipment.
• Cost Considerations: Stick welding equipment is a popular choice for hobbyists and cost-conscious welders since it is frequently less expensive than TIG and MIG setups. But remember that aluminum electrodes burn fast and are pricey. The amount of money you paid for a simple fix may surprise you.

Conclusion

Stick welding aluminum is a useful tool in a welder’s toolbox since it provides flexibility in difficult circumstances. Although it might not be the first option for the majority of aluminum welding applications, it excels in situations where alternative techniques could fall short.

Its capacity to withstand harsh outside environments, compatibility with heavier materials, and affordability render it a very valuable choice for distant tasks, upkeep, and fixes. Nevertheless, welders should be mindful of its limits, particularly in comparison to TIG and MIG welding, as it takes skill and experience to master.
